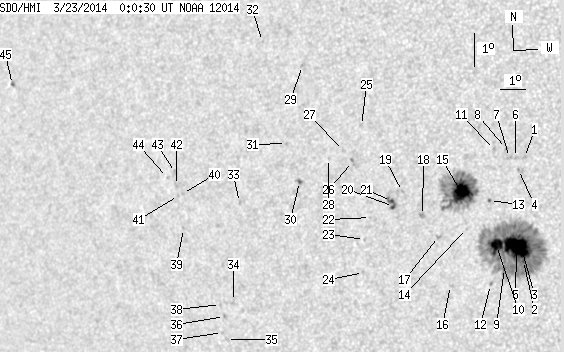

SDO HMI 2014-03-23 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.57 | 438.44 | 43.38 | 260.00 | -13.62 | 169.53 | -33.10 | 104.40 | 0.5495 | 607.2 | 354.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-23 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.06 | -11.68 | 171.75 | -30.88 | 101.15 | 0.5144 | 778.0 | 610.4 | |
| 1.05 | 269.97 | 0.61 | 157.65 | -14.76 | 171.27 | -31.36 | 106.88 | 0.5281 | 891.8 | 403.1 | |
| 1.48 | -2.00 | 0.86 | -2.00 | -14.03 | 171.20 | -31.43 | 105.49 | 0.5270 | 1172.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -12.03 | 171.49 | -31.14 | 101.76 | 0.5187 | 767.0 | 716.2 | |
| 34.38 | -2.00 | 20.04 | -2.00 | -14.36 | 171.08 | -31.55 | 106.06 | 0.5296 | 1244.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -11.66 | 171.43 | -31.20 | 101.04 | 0.5190 | 849.0 | 597.5 | |
| 0.00 | 1.92 | 0.00 | 1.11 | -11.65 | 171.22 | -31.42 | 100.98 | 0.5221 | 690.0 | 623.7 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -11.37 | 171.14 | -31.49 | 100.44 | 0.5228 | 888.0 | 696.5 | |
| 0.70 | -2.00 | 0.41 | -2.00 | -14.96 | 170.55 | -32.09 | 107.00 | 0.5388 | 369.9 | 999999 | |
| 12.04 | -2.00 | 7.07 | -2.00 | -14.25 | 170.37 | -32.26 | 105.65 | 0.5394 | 883.0 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -11.38 | 170.71 | -31.92 | 100.37 | 0.5290 | 739.0 | 641.6 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -15.41 | 169.95 | -32.68 | 107.61 | 0.5483 | 386.0 | 243.6 | |
| 0.44 | 1.48 | 0.26 | 0.87 | -12.89 | 170.33 | -32.31 | 103.12 | 0.5371 | -592.4 | -461.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -13.67 | 169.36 | -33.27 | 104.32 | 0.5523 | -664.0 | -555.2 | |
| 19.37 | 107.59 | 11.47 | 63.80 | -12.58 | 169.35 | -33.28 | 102.35 | 0.5504 | 1160.5 | 446.3 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -15.34 | 168.48 | -34.16 | 107.02 | 0.5684 | 506.0 | 473.5 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -13.84 | 168.30 | -34.34 | 104.36 | 0.5675 | 555.0 | 482.3 | |
| 0.00 | 3.14 | 0.00 | 1.90 | -13.17 | 167.81 | -34.82 | 103.09 | 0.5730 | 806.0 | 561.4 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -12.41 | 167.18 | -35.45 | 101.64 | 0.5805 | 602.0 | 397.8 | |
| 1.22 | 6.81 | 0.75 | 4.16 | -12.83 | 166.78 | -35.86 | 102.30 | 0.5868 | 749.9 | 557.5 | |
| 1.31 | -20.00 | 0.80 | -20.00 | -12.68 | 166.73 | -35.91 | 102.03 | 0.5873 | 806.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -13.10 | 165.85 | -36.78 | 102.59 | 0.5998 | -552.0 | -453.8 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -13.74 | 165.51 | -37.13 | 103.59 | 0.6055 | -745.0 | -630.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -14.72 | 165.27 | -37.36 | 105.15 | 0.6103 | -630.0 | -590.4 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -10.33 | 165.94 | -36.69 | 97.97 | 0.5958 | 97.0 | 173.6 | |
| 0.00 | 1.92 | 0.00 | 1.19 | -11.38 | 165.45 | -37.19 | 99.68 | 0.6033 | -653.0 | -512.4 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -11.02 | 165.16 | -37.48 | 99.07 | 0.6070 | 434.0 | 411.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -11.22 | 164.55 | -38.09 | 99.33 | 0.6155 | 504.0 | 412.3 | |
| 0.00 | 1.83 | 0.00 | 1.16 | -8.38 | 163.93 | -38.70 | 94.71 | 0.6230 | 602.0 | 417.9 | |
| 0.79 | 2.97 | 0.50 | 1.89 | -11.82 | 163.31 | -39.32 | 100.19 | 0.6325 | -806.8 | -627.3 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -10.65 | 162.99 | -39.64 | 98.31 | 0.6360 | 756.0 | 603.6 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -7.54 | 162.46 | -40.17 | 93.44 | 0.6430 | 547.0 | 444.6 | |
| 0.00 | 1.66 | 0.00 | 1.10 | -12.26 | 160.81 | -41.83 | 100.64 | 0.6654 | 594.0 | 356.4 | |
| 0.00 | 1.92 | 0.00 | 1.29 | -15.19 | 159.90 | -42.73 | 104.88 | 0.6800 | -323.0 | -336.0 | |
| 0.00 | 1.57 | 0.00 | 1.07 | -16.30 | 159.31 | -43.33 | 106.40 | 0.6889 | -668.0 | -540.9 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -15.61 | 159.41 | -43.23 | 105.41 | 0.6866 | -666.0 | -550.3 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -16.08 | 159.20 | -43.44 | 106.06 | 0.6899 | -593.0 | -532.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -15.23 | 159.34 | -43.30 | 104.86 | 0.6869 | -669.0 | -580.8 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -12.84 | 158.33 | -44.30 | 101.29 | 0.6968 | -472.0 | -409.3 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -11.80 | 158.51 | -44.12 | 99.80 | 0.6939 | -642.0 | -495.4 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -11.84 | 158.33 | -44.30 | 99.85 | 0.6961 | -538.0 | -438.4 | |
| 0.00 | 2.01 | 0.00 | 1.38 | -11.54 | 158.31 | -44.33 | 99.41 | 0.6963 | -725.0 | -676.3 | |
| 0.00 | 2.79 | 0.00 | 1.92 | -11.15 | 158.34 | -44.29 | 98.85 | 0.6957 | -776.0 | -633.5 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -11.27 | 157.98 | -44.66 | 99.01 | 0.7003 | -580.0 | -518.6 | |
| 0.79 | 1.92 | 0.61 | 1.50 | -7.89 | 151.57 | -51.06 | 94.51 | 0.7751 | 620.6 | 557.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
