SDO HMI 2014-03-23 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.41 | 225.89 | 43.15 | 262.93 | 11.79 | 262.25 | 62.36 | 286.60 | 0.9055 | -420.9 | -212.5 | |
|
previous
or next observation for the same group /

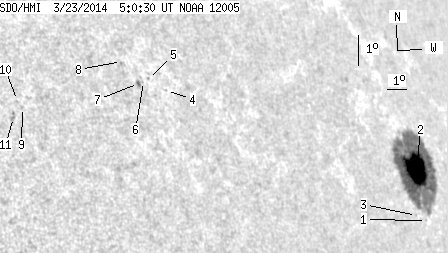

back to the solar disc SDO HMI 2014-03-23 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.72 | 10.20 | 262.84 | 62.95 | 284.70 | 0.9080 | -389.0 | -377.6 | |
| 36.41 | 214.20 | 43.15 | 253.57 | 11.78 | 262.78 | 62.89 | 286.41 | 0.9102 | -607.9 | -239.0 | |
| 0.00 | 0.61 | 0.00 | 0.70 | 10.28 | 262.21 | 62.32 | 284.94 | 0.9036 | -167.0 | -185.6 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 12.86 | 249.28 | 49.39 | 291.92 | 0.8000 | 325.0 | 278.5 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 13.17 | 248.52 | 48.63 | 292.59 | 0.7937 | 529.0 | 459.2 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 13.05 | 248.25 | 48.36 | 292.56 | 0.7907 | 500.0 | 486.7 | |
| 0.00 | 2.18 | 0.00 | 1.75 | 12.96 | 248.00 | 48.11 | 292.56 | 0.7879 | 664.0 | 574.4 | |
| 0.00 | 0.35 | 0.00 | 0.28 | 13.60 | 247.39 | 47.50 | 293.59 | 0.7842 | 522.0 | 534.2 | |
| 0.00 | 1.40 | 0.00 | 1.00 | 11.73 | 242.64 | 42.75 | 293.49 | 0.7270 | 607.0 | 494.3 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 11.94 | 242.47 | 42.58 | 293.84 | 0.7261 | 566.0 | 520.6 | |
| 0.00 | 3.58 | 0.00 | 2.55 | 11.38 | 242.20 | 42.31 | 293.26 | 0.7206 | 702.0 | 536.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
