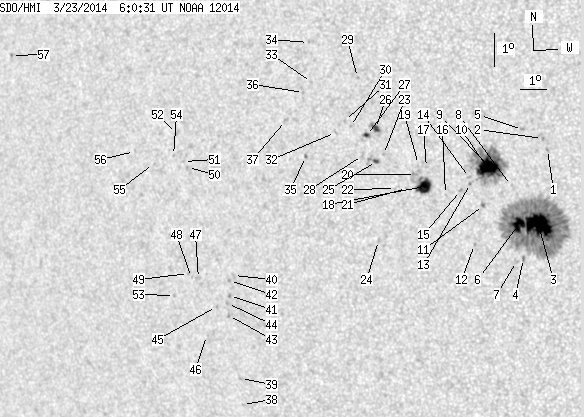

SDO HMI 2014-03-23 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.86 | 488.19 | 52.49 | 280.33 | -13.66 | 169.35 | -29.99 | 105.43 | 0.5053 | 556.7 | 323.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-23 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.73 | -12.10 | 171.76 | -27.58 | 102.86 | 0.4663 | 1005.0 | 768.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -11.77 | 171.63 | -27.71 | 102.10 | 0.4676 | 905.0 | 824.6 | |
| 35.98 | 294.46 | 20.30 | 166.40 | -14.33 | 171.17 | -28.17 | 107.29 | 0.4811 | 1305.1 | 416.7 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -15.33 | 170.50 | -28.85 | 108.99 | 0.4941 | 769.0 | 613.5 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -11.46 | 170.97 | -28.37 | 101.28 | 0.4769 | 805.0 | 670.8 | |
| 11.44 | -3.00 | 6.50 | -3.00 | -14.29 | 170.47 | -28.87 | 106.93 | 0.4911 | 1006.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -15.40 | 170.24 | -29.11 | 109.03 | 0.4981 | -29.0 | 160.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.11 | 170.39 | -28.96 | 104.52 | 0.4891 | 727.0 | 472.8 | |
| 1.05 | 93.88 | 0.60 | 53.57 | -12.75 | 169.94 | -29.40 | 103.66 | 0.4948 | 973.7 | 460.2 | |
| 24.36 | -9.00 | 13.91 | -9.00 | -12.52 | 169.62 | -29.72 | 103.10 | 0.4990 | 1192.6 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.20 | -13.65 | 169.32 | -30.02 | 105.25 | 0.5059 | -877.0 | -711.3 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -14.80 | 168.83 | -30.51 | 107.29 | 0.5162 | 678.0 | 559.1 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -12.96 | 168.96 | -30.39 | 103.79 | 0.5096 | 617.0 | 574.6 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -12.78 | 168.95 | -30.40 | 103.44 | 0.5094 | 648.0 | 513.6 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -13.15 | 168.57 | -30.77 | 104.05 | 0.5156 | 653.0 | 518.1 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -13.24 | 168.02 | -31.32 | 104.06 | 0.5237 | 572.0 | 542.5 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -12.39 | 167.46 | -31.88 | 102.32 | 0.5302 | 804.0 | 651.1 | |
| 13.27 | 22.70 | 7.76 | 13.29 | -12.95 | 167.31 | -32.04 | 103.34 | 0.5334 | 904.0 | 253.4 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -12.28 | 167.18 | -32.16 | 102.06 | 0.5339 | 460.0 | 430.0 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -12.57 | 167.03 | -32.31 | 102.57 | 0.5366 | 628.0 | 474.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -12.97 | 166.65 | -32.69 | 103.21 | 0.5428 | 443.0 | 392.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -12.94 | 166.25 | -33.09 | 103.08 | 0.5484 | 360.0 | 305.6 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -11.90 | 165.96 | -33.38 | 101.12 | 0.5508 | -624.0 | -499.7 | |
| 0.00 | 1.75 | 0.00 | 1.05 | -14.46 | 165.37 | -33.97 | 105.57 | 0.5638 | -694.0 | -526.1 | |
| 1.14 | 6.11 | 0.68 | 3.64 | -12.09 | 165.68 | -33.66 | 101.42 | 0.5551 | -946.4 | -682.0 | |
| 3.14 | 6.90 | 1.86 | 4.09 | -11.10 | 165.78 | -33.56 | 99.65 | 0.5525 | -895.9 | -497.2 | |
| 1.48 | 2.79 | 0.88 | 1.66 | -11.29 | 165.42 | -33.92 | 99.94 | 0.5577 | -663.9 | -455.9 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -11.88 | 165.19 | -34.15 | 100.96 | 0.5617 | 504.0 | 261.4 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -9.54 | 165.31 | -34.03 | 96.78 | 0.5579 | 696.0 | 578.7 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -10.98 | 164.87 | -34.47 | 99.32 | 0.5652 | 703.0 | 578.6 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -10.79 | 164.68 | -34.66 | 98.96 | 0.5678 | 585.0 | 478.9 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -11.12 | 164.30 | -35.04 | 99.51 | 0.5735 | 723.0 | 523.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -9.57 | 163.61 | -35.74 | 96.76 | 0.5822 | 623.0 | 414.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -8.37 | 163.63 | -35.71 | 94.69 | 0.5816 | 693.0 | 603.7 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -11.76 | 163.08 | -36.27 | 100.45 | 0.5911 | -771.0 | -656.4 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -9.85 | 163.27 | -36.07 | 97.22 | 0.5870 | 737.0 | 619.3 | |
| 0.00 | 2.18 | 0.00 | 1.35 | -10.63 | 162.48 | -36.86 | 98.49 | 0.5983 | 639.0 | 538.1 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -19.01 | 158.98 | -40.37 | 111.10 | 0.6586 | -518.0 | -430.1 | |
| 0.00 | 1.31 | 0.00 | 0.86 | -18.22 | 159.12 | -40.22 | 109.96 | 0.6548 | -616.0 | -521.9 | |
| 0.00 | 2.01 | 0.00 | 1.29 | -15.11 | 159.63 | -39.72 | 105.31 | 0.6419 | -646.0 | -494.0 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -15.70 | 159.33 | -40.01 | 106.16 | 0.6468 | -802.0 | -692.0 | |
| 0.00 | 1.66 | 0.00 | 1.07 | -15.25 | 159.43 | -39.91 | 105.49 | 0.6446 | -818.0 | -628.6 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -16.29 | 159.14 | -40.20 | 107.03 | 0.6503 | -695.0 | -622.8 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -15.93 | 159.19 | -40.15 | 106.49 | 0.6490 | -595.0 | -554.1 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -15.99 | 158.73 | -40.62 | 106.48 | 0.6549 | -646.0 | -481.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -16.82 | 158.10 | -41.25 | 107.60 | 0.6644 | -506.0 | -537.4 | |
| 0.00 | 2.62 | 0.00 | 1.72 | -15.09 | 158.20 | -41.14 | 105.02 | 0.6600 | -295.0 | -399.5 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -15.04 | 157.93 | -41.42 | 104.90 | 0.6634 | -581.0 | -434.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -14.91 | 157.83 | -41.51 | 104.69 | 0.6644 | -459.0 | -372.4 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -11.75 | 158.46 | -40.89 | 99.96 | 0.6530 | -716.0 | -591.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -11.55 | 158.33 | -41.01 | 99.66 | 0.6545 | -676.0 | -551.0 | |
| 0.00 | 2.36 | 0.00 | 1.54 | -10.70 | 158.19 | -41.15 | 98.34 | 0.6558 | -652.0 | -445.3 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -15.52 | 157.10 | -42.25 | 105.48 | 0.6745 | -539.0 | -426.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -11.34 | 157.96 | -41.38 | 99.31 | 0.6591 | -618.0 | -513.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -11.52 | 157.11 | -42.24 | 99.52 | 0.6702 | -467.0 | -343.6 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -11.10 | 156.40 | -42.95 | 98.86 | 0.6790 | -545.0 | -420.6 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -7.80 | 151.63 | -47.71 | 94.21 | 0.7372 | 572.0 | 515.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
