SDO HMI 2014-03-23 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.69 | 481.19 | 44.80 | 274.42 | -13.67 | 169.61 | -29.19 | 105.77 | 0.4938 | 500.3 | 363.7 | |
|
previous
or next observation for the same group /

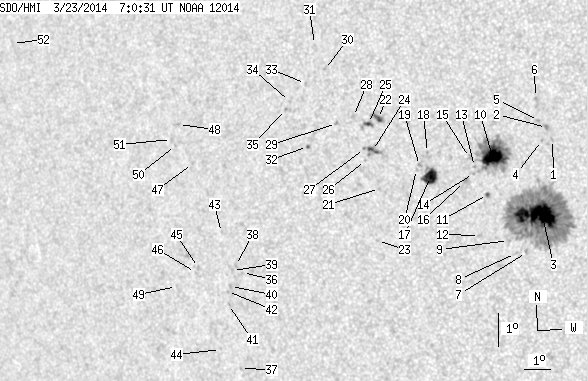

back to the solar disc SDO HMI 2014-03-23 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.92 | -12.10 | 171.80 | -26.99 | 103.04 | 0.4574 | 913.0 | 684.4 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -11.73 | 171.64 | -27.16 | 102.19 | 0.4591 | 893.0 | 814.0 | |
| 36.24 | 302.42 | 20.35 | 170.03 | -14.36 | 171.18 | -27.62 | 107.60 | 0.4731 | 1297.2 | 433.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -12.11 | 171.42 | -27.37 | 102.94 | 0.4632 | 726.0 | 594.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -11.51 | 171.39 | -27.41 | 101.63 | 0.4625 | 913.0 | 754.6 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -10.81 | 171.36 | -27.44 | 100.13 | 0.4617 | 698.0 | 590.9 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -15.44 | 170.46 | -28.33 | 109.47 | 0.4872 | 477.0 | 456.1 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -15.45 | 170.07 | -28.72 | 109.30 | 0.4928 | 274.0 | 86.8 | |
| 0.00 | 1.57 | 0.00 | 0.89 | -15.04 | 169.89 | -28.91 | 108.42 | 0.4941 | -124.0 | -118.9 | |
| 20.78 | 81.22 | 11.80 | 46.07 | -12.49 | 169.67 | -29.12 | 103.22 | 0.4901 | 1215.1 | 573.7 | |
| 0.70 | 1.83 | 0.40 | 1.05 | -13.62 | 169.35 | -29.45 | 105.38 | 0.4975 | -796.1 | -615.3 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -14.83 | 168.89 | -29.91 | 107.59 | 0.5077 | 642.0 | 512.5 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -12.76 | 169.01 | -29.79 | 103.56 | 0.5005 | 611.0 | 515.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -12.96 | 168.94 | -29.85 | 103.95 | 0.5018 | 589.0 | 465.4 | |
| 0.00 | 2.97 | 0.00 | 1.70 | -12.48 | 168.87 | -29.93 | 102.96 | 0.5019 | 62.0 | 133.9 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -13.18 | 168.59 | -30.20 | 104.28 | 0.5074 | 631.0 | 513.2 | |
| 13.54 | 19.39 | 7.86 | 11.26 | -12.96 | 167.41 | -31.39 | 103.52 | 0.5241 | 917.4 | 512.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -12.23 | 167.40 | -31.39 | 102.14 | 0.5228 | 660.0 | 522.9 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -12.61 | 167.06 | -31.73 | 102.77 | 0.5284 | 612.0 | 531.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -12.72 | 166.94 | -31.86 | 102.95 | 0.5304 | 497.0 | 260.5 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.20 | 165.52 | -33.28 | 103.50 | 0.5515 | -670.0 | -507.2 | |
| 2.71 | 6.90 | 1.60 | 4.07 | -11.11 | 165.78 | -33.02 | 99.74 | 0.5446 | -916.9 | -576.4 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -14.75 | 165.19 | -33.61 | 106.19 | 0.5596 | -687.0 | -519.2 | |
| 2.62 | 7.86 | 1.55 | 4.66 | -12.05 | 165.43 | -33.36 | 101.40 | 0.5508 | -828.0 | -668.2 | |
| 1.75 | 5.85 | 1.03 | 3.47 | -11.23 | 165.40 | -33.40 | 99.91 | 0.5502 | -681.2 | -353.1 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -12.33 | 165.14 | -33.66 | 101.85 | 0.5554 | -676.0 | -525.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -11.97 | 165.15 | -33.64 | 101.21 | 0.5547 | 600.0 | 525.1 | |
| 0.00 | 1.92 | 0.00 | 1.14 | -10.99 | 164.88 | -33.91 | 99.40 | 0.5573 | 793.0 | 562.5 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -11.15 | 164.23 | -34.56 | 99.62 | 0.5667 | 728.0 | 552.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -9.51 | 164.00 | -34.80 | 96.70 | 0.5689 | 796.0 | 616.8 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -8.74 | 163.71 | -35.08 | 95.34 | 0.5727 | 569.0 | 465.8 | |
| 0.35 | 1.40 | 0.21 | 0.85 | -11.76 | 163.06 | -35.74 | 100.53 | 0.5838 | -703.5 | -633.9 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -9.88 | 163.25 | -35.55 | 97.31 | 0.5797 | 733.0 | 617.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -10.38 | 162.58 | -36.22 | 98.11 | 0.5893 | 583.0 | 425.4 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -10.60 | 162.40 | -36.40 | 98.48 | 0.5919 | 560.0 | 523.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -15.35 | 159.87 | -38.93 | 105.85 | 0.6321 | -669.0 | -547.7 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -18.23 | 159.07 | -39.73 | 110.10 | 0.6487 | -667.0 | -571.2 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -15.12 | 159.64 | -39.15 | 105.44 | 0.6347 | -688.0 | -592.1 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -15.26 | 159.49 | -39.31 | 105.63 | 0.6369 | -827.0 | -679.3 | |
| 0.00 | 2.01 | 0.00 | 1.29 | -15.73 | 159.30 | -39.50 | 106.33 | 0.6402 | -743.0 | -624.6 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -16.27 | 159.09 | -39.70 | 107.11 | 0.6439 | -628.0 | -575.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -15.87 | 159.15 | -39.65 | 106.51 | 0.6425 | -683.0 | -541.2 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -14.09 | 159.30 | -39.49 | 103.77 | 0.6374 | -598.0 | -562.6 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -17.59 | 158.42 | -40.37 | 108.97 | 0.6553 | -588.0 | -529.7 | |
| 0.00 | 1.48 | 0.00 | 0.97 | -15.07 | 158.16 | -40.64 | 105.08 | 0.6536 | -622.0 | -563.2 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -15.21 | 158.00 | -40.80 | 105.26 | 0.6559 | -491.0 | -411.7 | |
| 0.00 | 1.31 | 0.00 | 0.85 | -11.94 | 158.56 | -40.24 | 100.33 | 0.6447 | -662.0 | -403.3 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -10.74 | 158.21 | -40.59 | 98.43 | 0.6485 | -734.0 | -610.8 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -15.56 | 157.13 | -41.67 | 105.64 | 0.6674 | -561.0 | -531.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -11.36 | 157.98 | -40.82 | 99.37 | 0.6518 | -617.0 | -531.7 | |
| 0.00 | 1.66 | 0.00 | 1.08 | -11.16 | 157.85 | -40.94 | 99.07 | 0.6534 | -370.0 | -289.2 | |
| 0.00 | 2.18 | 0.00 | 1.58 | -7.75 | 151.67 | -47.12 | 94.13 | 0.7303 | 644.0 | 337.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
