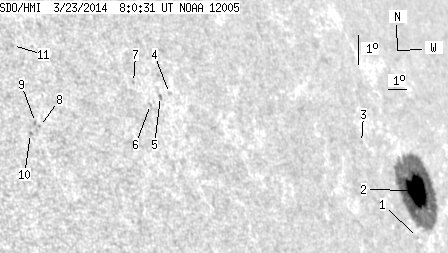

SDO HMI 2014-03-23 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.07 | 206.44 | 45.46 | 255.51 | 11.82 | 262.21 | 63.96 | 286.22 | 0.9165 | -428.5 | -162.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-23 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 1.27 | 10.26 | 262.19 | 63.94 | 284.52 | 0.9149 | -249.0 | -201.2 | |
| 36.07 | 194.05 | 45.46 | 244.69 | 11.78 | 262.75 | 64.50 | 286.01 | 0.9209 | -602.2 | -185.0 | |
| 0.00 | 1.57 | 0.00 | 1.78 | 12.92 | 259.52 | 61.27 | 288.06 | 0.9008 | -287.0 | -267.9 | |
| 0.00 | 1.48 | 0.00 | 1.26 | 13.39 | 249.04 | 50.79 | 291.97 | 0.8151 | 381.0 | 288.1 | |
| 0.00 | 1.92 | 0.00 | 1.61 | 13.25 | 248.56 | 50.32 | 291.99 | 0.8101 | 514.0 | 455.0 | |
| 0.00 | 1.40 | 0.00 | 1.16 | 12.94 | 248.00 | 49.75 | 291.86 | 0.8037 | 630.0 | 546.2 | |
| 0.00 | 0.70 | 0.00 | 0.57 | 13.58 | 247.37 | 49.12 | 292.86 | 0.7999 | 411.0 | 380.0 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 11.77 | 242.70 | 44.45 | 292.70 | 0.7455 | 554.0 | 504.2 | |
| 0.00 | 0.96 | 0.00 | 0.71 | 11.88 | 242.55 | 44.31 | 292.92 | 0.7444 | 621.0 | 490.8 | |
| 0.00 | 0.96 | 0.00 | 0.70 | 11.51 | 242.27 | 44.02 | 292.58 | 0.7398 | 596.0 | 615.3 | |
| 0.00 | 1.48 | 0.00 | 1.11 | 14.28 | 242.12 | 43.87 | 296.11 | 0.7502 | 438.0 | 344.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
