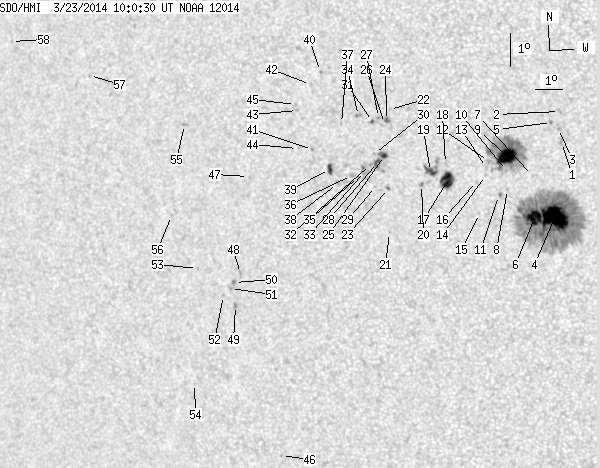

SDO HMI 2014-03-23 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.67 | 510.68 | 55.34 | 287.00 | -13.65 | 169.46 | -27.69 | 106.29 | 0.4720 | 501.8 | 301.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-23 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.44 | -12.14 | 171.73 | -25.43 | 103.69 | 0.4339 | 721.0 | 661.4 | |
| 0.00 | 2.10 | 0.00 | 1.15 | -11.21 | 171.75 | -25.40 | 101.56 | 0.4313 | 736.0 | 575.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.72 | 171.67 | -25.49 | 102.70 | 0.4337 | 970.0 | 842.5 | |
| 38.25 | 305.45 | 21.17 | 169.36 | -14.38 | 171.23 | -25.92 | 108.46 | 0.4483 | 1285.3 | 379.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.52 | 171.45 | -25.70 | 102.19 | 0.4366 | 835.0 | 741.5 | |
| 13.97 | -4.00 | 7.78 | -4.00 | -14.34 | 170.55 | -26.61 | 108.04 | 0.4583 | 980.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -13.08 | 170.64 | -26.52 | 105.35 | 0.4529 | 746.0 | 567.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -13.45 | 169.73 | -27.43 | 105.79 | 0.4675 | -828.0 | -611.0 | |
| 20.61 | 90.55 | 11.51 | 50.54 | -12.46 | 169.81 | -27.34 | 103.72 | 0.4636 | 1177.9 | 458.3 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -12.88 | 169.76 | -27.39 | 104.60 | 0.4654 | 233.0 | 216.2 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -13.61 | 169.39 | -27.76 | 106.00 | 0.4729 | -475.0 | -562.3 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -12.57 | 169.18 | -27.98 | 103.76 | 0.4734 | 311.0 | 295.1 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -12.75 | 169.09 | -28.07 | 104.09 | 0.4751 | 578.0 | 482.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -12.99 | 169.02 | -28.13 | 104.57 | 0.4767 | 593.0 | 394.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -14.11 | 168.66 | -28.49 | 106.75 | 0.4851 | 356.0 | 219.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -13.15 | 168.69 | -28.47 | 104.79 | 0.4820 | 612.0 | 521.6 | |
| 13.53 | 16.68 | 7.71 | 9.51 | -13.06 | 167.68 | -29.47 | 104.28 | 0.4966 | 938.0 | 584.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -12.55 | 167.68 | -29.48 | 103.25 | 0.4955 | 722.0 | 591.7 | |
| 4.19 | 14.58 | 2.40 | 8.34 | -12.75 | 167.12 | -30.04 | 103.51 | 0.5041 | 688.8 | 563.3 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -13.12 | 166.75 | -30.41 | 104.13 | 0.5103 | 762.0 | 606.8 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -14.49 | 165.39 | -31.76 | 106.31 | 0.5331 | -679.0 | -530.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -10.81 | 165.91 | -31.25 | 99.46 | 0.5187 | 510.0 | 386.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -13.17 | 165.56 | -31.60 | 103.89 | 0.5276 | 507.0 | 508.2 | |
| 0.70 | 2.71 | 0.40 | 1.57 | -11.14 | 165.76 | -31.40 | 100.06 | 0.5212 | -914.8 | -803.3 | |
| 2.10 | 9.34 | 1.22 | 5.44 | -12.18 | 165.55 | -31.60 | 102.00 | 0.5257 | -1044.4 | -741.1 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -11.22 | 165.68 | -31.48 | 100.21 | 0.5225 | -231.0 | -355.4 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -11.03 | 165.49 | -31.67 | 99.81 | 0.5250 | -791.0 | -592.5 | |
| 1.66 | -25.00 | 0.97 | -25.00 | -12.37 | 165.28 | -31.88 | 102.31 | 0.5301 | -850.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -13.08 | 165.10 | -32.05 | 103.60 | 0.5340 | 630.0 | 466.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -12.09 | 165.21 | -31.95 | 101.78 | 0.5307 | -614.0 | -563.3 | |
| 0.52 | 1.75 | 0.31 | 1.02 | -11.13 | 165.26 | -31.90 | 99.97 | 0.5285 | -554.5 | -494.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -12.41 | 165.02 | -32.14 | 102.33 | 0.5339 | -790.0 | -739.0 | |
| 0.00 | 6.90 | 0.00 | 4.05 | -12.61 | 164.77 | -32.38 | 102.64 | 0.5378 | -420.0 | -261.5 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -10.92 | 164.78 | -32.37 | 99.51 | 0.5352 | 779.0 | 597.0 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -12.74 | 164.53 | -32.62 | 102.84 | 0.5414 | 392.0 | 338.2 | |
| 0.00 | 3.14 | 0.00 | 1.85 | -12.70 | 164.29 | -32.87 | 102.70 | 0.5449 | -255.0 | -157.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -11.12 | 164.14 | -33.02 | 99.78 | 0.5447 | 335.0 | 377.9 | |
| 0.00 | 2.01 | 0.00 | 1.19 | -12.90 | 163.74 | -33.41 | 102.96 | 0.5530 | -155.0 | -177.0 | |
| 3.14 | 5.33 | 1.87 | 3.17 | -12.47 | 163.51 | -33.64 | 102.12 | 0.5555 | -849.0 | -652.5 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -9.52 | 163.57 | -33.59 | 96.80 | 0.5516 | 551.0 | 381.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -11.83 | 162.98 | -34.18 | 100.89 | 0.5621 | -747.0 | -600.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.88 | 163.16 | -33.99 | 97.43 | 0.5576 | 836.0 | 628.5 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -10.63 | 162.59 | -34.57 | 98.71 | 0.5663 | 700.0 | 591.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -11.76 | 162.43 | -34.72 | 100.69 | 0.5697 | 533.0 | 491.7 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -10.44 | 162.54 | -34.62 | 98.38 | 0.5669 | 689.0 | 529.8 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -20.96 | 159.82 | -37.33 | 115.11 | 0.6277 | -649.0 | -559.2 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -12.47 | 160.47 | -36.68 | 101.61 | 0.5977 | -551.0 | -582.0 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -15.35 | 159.62 | -37.54 | 106.18 | 0.6141 | -734.0 | -626.9 | |
| 0.00 | 2.10 | 0.00 | 1.32 | -16.29 | 159.21 | -37.95 | 107.59 | 0.6214 | -834.0 | -676.4 | |
| 0.00 | 1.92 | 0.00 | 1.21 | -15.60 | 159.33 | -37.83 | 106.51 | 0.6184 | -772.0 | -659.5 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -15.77 | 159.13 | -38.02 | 106.74 | 0.6213 | -648.0 | -569.9 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -15.96 | 158.81 | -38.34 | 106.96 | 0.6259 | -619.0 | -549.3 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -15.07 | 157.97 | -39.18 | 105.38 | 0.6350 | -522.0 | -454.0 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -18.52 | 156.98 | -40.18 | 110.43 | 0.6551 | -485.0 | -429.4 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -10.74 | 158.27 | -38.88 | 98.54 | 0.6259 | -857.0 | -716.5 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -13.41 | 157.28 | -39.87 | 102.67 | 0.6415 | -655.0 | -481.1 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -8.98 | 154.73 | -42.43 | 95.74 | 0.6721 | -484.0 | -463.8 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -7.70 | 151.62 | -45.53 | 93.98 | 0.7113 | 433.0 | 326.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
