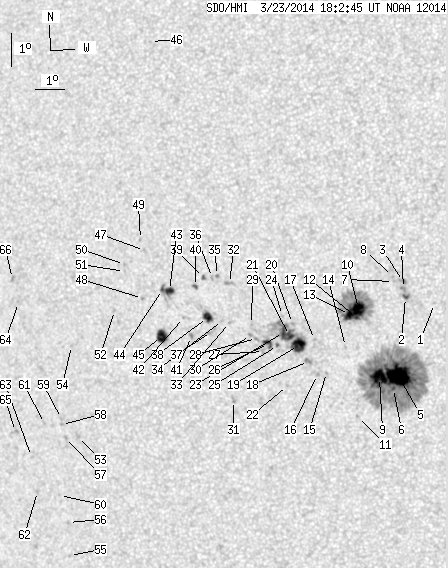

SDO HMI 2014-03-23 18:02:45 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.78 | 579.77 | 68.91 | 315.00 | -13.62 | 169.25 | -23.49 | 108.33 | 0.4093 | 472.3 | 317.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-23 18:02:45 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.24 | 172.75 | -19.99 | 106.62 | 0.3502 | 699.0 | 560.7 | |
| 1.22 | 2.70 | 0.65 | 1.44 | -12.02 | 171.82 | -20.92 | 105.46 | 0.3639 | 1077.4 | 876.1 | |
| 0.00 | 3.05 | 0.00 | 1.62 | -11.54 | 171.79 | -20.94 | 104.14 | 0.3627 | 1095.0 | 878.3 | |
| 0.00 | 2.53 | 0.00 | 1.34 | -11.75 | 171.78 | -20.96 | 104.70 | 0.3636 | 1017.0 | 893.8 | |
| 35.86 | 312.82 | 19.19 | 167.65 | -14.35 | 171.38 | -21.36 | 111.25 | 0.3803 | 1465.7 | 443.0 | |
| 1.92 | -5.00 | 1.03 | -5.00 | -14.74 | 171.17 | -21.57 | 112.05 | 0.3852 | 927.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -11.53 | 171.47 | -21.27 | 103.94 | 0.3678 | 766.0 | 595.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -11.38 | 171.45 | -21.29 | 103.52 | 0.3677 | 865.0 | 690.7 | |
| 15.97 | -5.00 | 8.58 | -5.00 | -14.38 | 170.74 | -22.00 | 110.86 | 0.3899 | 1088.2 | 999999 | |
| 13.61 | 83.51 | 7.31 | 44.89 | -12.28 | 170.25 | -22.49 | 105.31 | 0.3891 | 1398.7 | 482.3 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -15.52 | 169.88 | -22.86 | 112.96 | 0.4083 | 675.0 | 496.3 | |
| 2.44 | -10.00 | 1.31 | -10.00 | -12.55 | 170.16 | -22.58 | 105.93 | 0.3914 | 980.8 | 999999 | |
| 6.37 | -10.00 | 3.43 | -10.00 | -12.45 | 169.94 | -22.80 | 105.57 | 0.3945 | 1038.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.40 | 169.71 | -23.03 | 107.79 | 0.4013 | -711.0 | -565.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -14.15 | 168.99 | -23.75 | 109.16 | 0.4151 | 529.0 | 469.2 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -14.20 | 168.68 | -24.05 | 109.08 | 0.4199 | 661.0 | 510.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.14 | 168.70 | -24.04 | 106.62 | 0.4157 | 944.0 | 706.8 | |
| 0.00 | 4.19 | 0.00 | 2.29 | -13.79 | 168.43 | -24.31 | 108.00 | 0.4222 | 657.0 | 570.3 | |
| 13.44 | 63.26 | 7.34 | 34.68 | -13.30 | 168.14 | -24.59 | 106.70 | 0.4247 | 1019.2 | 446.3 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -12.63 | 168.01 | -24.73 | 105.09 | 0.4245 | 857.0 | 735.7 | |
| 4.97 | -19.00 | 2.72 | -19.00 | -12.98 | 167.87 | -24.86 | 105.85 | 0.4277 | 998.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -14.48 | 167.63 | -25.11 | 109.12 | 0.4366 | -751.0 | -546.3 | |
| 5.41 | -19.00 | 2.97 | -19.00 | -12.88 | 167.68 | -25.06 | 105.53 | 0.4303 | 879.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -12.37 | 167.70 | -25.04 | 104.37 | 0.4285 | 651.0 | 565.9 | |
| 0.61 | 1.48 | 0.34 | 0.82 | -13.26 | 167.44 | -25.30 | 106.29 | 0.4352 | 661.9 | 539.8 | |
| 3.58 | -19.00 | 1.97 | -19.00 | -13.18 | 167.14 | -25.60 | 105.98 | 0.4394 | 789.4 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -13.41 | 166.94 | -25.80 | 106.41 | 0.4431 | 62.0 | 181.9 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -13.01 | 166.75 | -25.99 | 105.43 | 0.4448 | 320.0 | 356.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.58 | 166.63 | -26.11 | 104.43 | 0.4454 | -815.0 | -546.6 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -12.91 | 166.55 | -26.18 | 105.13 | 0.4474 | 604.0 | 383.4 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -14.83 | 165.73 | -27.01 | 108.89 | 0.4659 | -787.0 | -681.7 | |
| 0.00 | 4.01 | 0.00 | 2.23 | -11.32 | 166.01 | -26.73 | 101.43 | 0.4518 | -985.0 | -743.7 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -12.48 | 165.88 | -26.85 | 103.95 | 0.4563 | -687.0 | -496.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -12.41 | 165.65 | -27.09 | 103.71 | 0.4596 | -224.0 | -197.0 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -11.06 | 165.63 | -27.11 | 100.76 | 0.4572 | -913.0 | -809.6 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -11.11 | 165.45 | -27.29 | 100.83 | 0.4599 | -627.0 | -619.8 | |
| 0.00 | 3.66 | 0.00 | 2.05 | -12.72 | 165.24 | -27.50 | 104.23 | 0.4666 | -684.0 | -511.4 | |
| 5.93 | 8.29 | 3.32 | 4.64 | -12.29 | 165.15 | -27.59 | 103.29 | 0.4669 | 884.6 | 502.4 | |
| 0.79 | 2.36 | 0.44 | 1.32 | -11.09 | 165.14 | -27.59 | 100.72 | 0.4646 | -885.2 | -710.4 | |
| 0.87 | 2.62 | 0.49 | 1.47 | -11.34 | 164.84 | -27.90 | 101.19 | 0.4696 | -789.4 | -585.1 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -12.83 | 164.53 | -28.21 | 104.22 | 0.4774 | -1079.0 | -827.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.25 | 164.32 | -28.42 | 102.94 | 0.4791 | -479.0 | -464.3 | |
| 4.36 | 13.61 | 2.47 | 7.70 | -11.41 | 163.93 | -28.81 | 101.12 | 0.4833 | -1037.5 | -464.7 | |
| 0.79 | -43.00 | 0.44 | -43.00 | -11.37 | 163.69 | -29.05 | 100.97 | 0.4868 | -687.7 | 999999 | |
| 8.64 | 11.78 | 4.91 | 6.70 | -12.77 | 163.49 | -29.25 | 103.77 | 0.4926 | -1003.0 | -701.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -3.95 | 163.84 | -28.90 | 85.60 | 0.4855 | -658.0 | -565.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -10.17 | 163.19 | -29.54 | 98.43 | 0.4926 | 693.0 | 524.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -11.60 | 162.96 | -29.77 | 101.27 | 0.4980 | 667.0 | 528.9 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -9.83 | 163.09 | -29.65 | 97.73 | 0.4939 | 559.0 | 447.7 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -10.54 | 162.45 | -30.29 | 99.08 | 0.5041 | 793.0 | 685.5 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -10.75 | 162.43 | -30.31 | 99.49 | 0.5047 | 672.0 | 600.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -11.89 | 161.94 | -30.80 | 101.64 | 0.5136 | 726.0 | 526.7 | |
| 0.00 | 2.62 | 0.00 | 1.55 | -15.58 | 160.03 | -32.71 | 107.98 | 0.5493 | -837.0 | -738.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.84 | 160.26 | -32.48 | 103.06 | 0.5396 | -649.0 | -529.5 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -19.15 | 158.99 | -33.75 | 113.76 | 0.5756 | -634.0 | -474.9 | |
| 0.00 | 1.92 | 0.00 | 1.15 | -18.15 | 159.18 | -33.56 | 112.14 | 0.5693 | -706.0 | -561.9 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -15.58 | 159.59 | -33.15 | 107.83 | 0.5555 | -812.0 | -557.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -15.18 | 159.51 | -33.23 | 107.09 | 0.5554 | -698.0 | -640.0 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -15.00 | 159.54 | -33.20 | 106.78 | 0.5545 | -688.0 | -627.8 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -17.32 | 159.02 | -33.72 | 110.65 | 0.5685 | -621.0 | -548.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -15.11 | 158.89 | -33.85 | 106.78 | 0.5638 | -560.0 | -488.6 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -17.14 | 158.22 | -34.51 | 110.05 | 0.5786 | -655.0 | -386.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -16.07 | 158.22 | -34.52 | 108.23 | 0.5755 | -587.0 | -548.6 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -11.43 | 158.52 | -34.22 | 100.18 | 0.5622 | -531.0 | -428.7 | |
| 0.00 | 2.97 | 0.00 | 1.80 | -15.28 | 157.77 | -34.97 | 106.74 | 0.5795 | -701.0 | -586.1 | |
| 0.00 | 2.27 | 0.00 | 1.36 | -10.70 | 158.40 | -34.34 | 98.87 | 0.5632 | -780.0 | -609.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
