SDO HMI 2014-03-23 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.51 | 604.10 | 73.16 | 325.72 | -13.65 | 169.24 | -22.42 | 109.04 | 0.3934 | 482.5 | 334.2 | |
|
previous
or next observation for the same group /

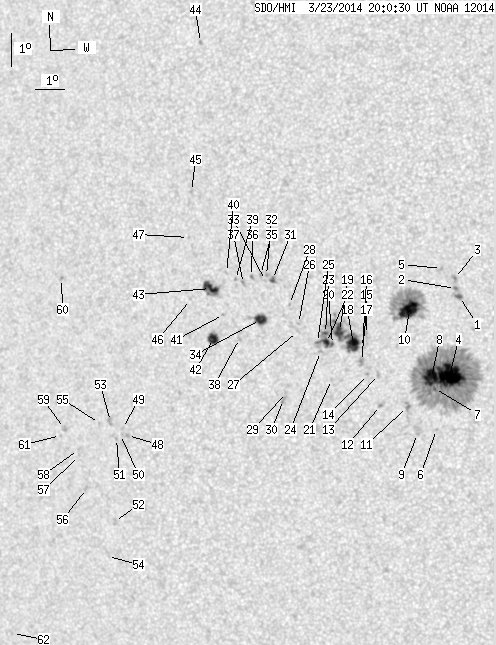

back to the solar disc SDO HMI 2014-03-23 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 3.93 | 0.69 | 2.07 | -12.02 | 171.91 | -19.74 | 106.13 | 0.3455 | 1166.0 | 864.3 | |
| 0.00 | 1.92 | 0.00 | 1.01 | -11.77 | 171.80 | -19.85 | 105.37 | 0.3463 | 1206.0 | 1002.9 | |
| 0.00 | 2.79 | 0.00 | 1.47 | -11.47 | 171.79 | -19.86 | 104.51 | 0.3455 | 1133.0 | 953.1 | |
| 40.40 | 315.37 | 21.47 | 167.78 | -14.37 | 171.38 | -20.28 | 112.16 | 0.3640 | 1444.4 | 446.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -11.15 | 171.39 | -20.26 | 103.40 | 0.3508 | 785.0 | 673.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.98 | 170.78 | -20.87 | 115.71 | 0.3818 | 274.0 | 145.1 | |
| 0.87 | -4.00 | 0.47 | -4.00 | -14.74 | 170.85 | -20.81 | 112.67 | 0.3739 | 685.3 | 999999 | |
| 17.71 | -4.00 | 9.45 | -4.00 | -14.41 | 170.78 | -20.87 | 111.76 | 0.3732 | 1095.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -16.07 | 170.14 | -21.52 | 115.35 | 0.3916 | -510.0 | -535.8 | |
| 20.51 | 86.30 | 10.94 | 46.04 | -12.34 | 170.25 | -21.40 | 106.01 | 0.3725 | 1264.2 | 472.5 | |
| 0.00 | 4.10 | 0.00 | 2.21 | -15.24 | 169.90 | -21.76 | 113.15 | 0.3906 | 799.0 | 479.7 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -15.17 | 169.00 | -22.65 | 112.29 | 0.4034 | -970.0 | -767.2 | |
| 0.00 | 2.79 | 0.00 | 1.51 | -14.24 | 169.04 | -22.61 | 110.07 | 0.3985 | 699.0 | 510.3 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -14.22 | 168.67 | -22.98 | 109.79 | 0.4039 | 742.0 | 604.5 | |
| 0.00 | 2.88 | 0.00 | 1.55 | -13.02 | 168.76 | -22.89 | 106.92 | 0.3978 | 832.0 | 718.0 | |
| 0.00 | 2.01 | 0.00 | 1.08 | -13.40 | 168.59 | -23.06 | 107.77 | 0.4018 | 524.0 | 480.0 | |
| 0.00 | 4.71 | 0.00 | 2.55 | -13.82 | 168.52 | -23.14 | 108.73 | 0.4046 | 799.0 | 593.9 | |
| 12.22 | 76.35 | 6.62 | 41.47 | -13.30 | 168.30 | -23.35 | 107.35 | 0.4059 | 1116.8 | 522.2 | |
| 8.73 | -18.00 | 4.74 | -18.00 | -12.89 | 167.88 | -23.78 | 106.14 | 0.4109 | 987.4 | 999999 | |
| 0.96 | -18.00 | 0.52 | -18.00 | -13.27 | 167.60 | -24.05 | 106.90 | 0.4164 | 741.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -14.31 | 167.45 | -24.20 | 109.25 | 0.4226 | -765.0 | -498.3 | |
| 3.67 | -18.00 | 2.00 | -18.00 | -13.20 | 167.41 | -24.25 | 106.64 | 0.4191 | 907.5 | 999999 | |
| 1.31 | -18.00 | 0.71 | -18.00 | -12.92 | 167.40 | -24.25 | 106.00 | 0.4182 | 603.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -13.45 | 167.18 | -24.48 | 107.12 | 0.4234 | 707.0 | 414.6 | |
| 0.52 | -18.00 | 0.29 | -18.00 | -13.18 | 167.11 | -24.55 | 106.45 | 0.4236 | 630.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -12.58 | 166.53 | -25.13 | 104.81 | 0.4305 | -677.0 | -551.9 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.82 | 166.47 | -25.19 | 105.32 | 0.4321 | 257.0 | 319.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -11.99 | 166.28 | -25.37 | 103.37 | 0.4326 | 696.0 | 513.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.63 | 165.88 | -25.77 | 109.08 | 0.4471 | -691.0 | -610.7 | |
| 0.00 | 2.97 | 0.00 | 1.64 | -14.83 | 165.75 | -25.90 | 109.45 | 0.4498 | -918.0 | -784.9 | |
| 1.48 | 3.05 | 0.82 | 1.68 | -11.22 | 165.79 | -25.87 | 101.44 | 0.4385 | -952.8 | -772.7 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -11.09 | 165.60 | -26.06 | 101.09 | 0.4411 | -1041.0 | -845.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -11.23 | 165.55 | -26.11 | 101.41 | 0.4422 | -662.0 | -564.6 | |
| 7.85 | 12.83 | 4.35 | 7.11 | -12.39 | 165.26 | -26.40 | 103.90 | 0.4492 | 962.9 | 361.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -11.05 | 165.40 | -26.26 | 100.95 | 0.4441 | -561.0 | -597.5 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -11.09 | 165.09 | -26.57 | 100.96 | 0.4489 | -706.0 | -607.3 | |
| 0.00 | 2.01 | 0.00 | 1.11 | -11.28 | 164.79 | -26.86 | 101.31 | 0.4538 | -621.0 | -442.0 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -12.92 | 164.47 | -27.18 | 104.76 | 0.4623 | -605.0 | -570.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -11.15 | 164.53 | -27.12 | 100.95 | 0.4575 | -849.0 | -723.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -10.92 | 164.25 | -27.41 | 100.40 | 0.4614 | 352.0 | 313.6 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.17 | 164.01 | -27.64 | 103.01 | 0.4674 | 671.0 | 590.1 | |
| 7.50 | 10.21 | 4.22 | 5.74 | -12.87 | 163.58 | -28.07 | 104.34 | 0.4755 | -1025.2 | -687.0 | |
| 10.47 | 19.55 | 5.87 | 10.96 | -11.37 | 163.65 | -28.00 | 101.21 | 0.4712 | -976.8 | -619.6 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -4.01 | 163.85 | -27.81 | 85.45 | 0.4688 | -686.0 | -563.8 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -8.44 | 163.27 | -28.38 | 94.94 | 0.4739 | 329.0 | 342.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -11.66 | 162.92 | -28.73 | 101.64 | 0.4826 | 352.0 | 328.1 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -9.80 | 163.05 | -28.60 | 97.80 | 0.4781 | 643.0 | 456.9 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -15.60 | 160.12 | -31.54 | 108.43 | 0.5331 | -827.0 | -606.2 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -15.38 | 159.97 | -31.68 | 107.97 | 0.5345 | -742.0 | -584.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -15.55 | 159.87 | -31.78 | 108.25 | 0.5364 | -737.0 | -681.2 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -15.66 | 159.70 | -31.95 | 108.39 | 0.5391 | -395.0 | -423.3 | |
| 0.00 | 2.79 | 0.00 | 1.66 | -18.16 | 159.15 | -32.51 | 112.62 | 0.5553 | -650.0 | -440.1 | |
| 0.00 | 3.84 | 0.00 | 2.26 | -15.14 | 159.58 | -32.08 | 107.39 | 0.5393 | -560.0 | -638.0 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -19.21 | 158.65 | -33.00 | 114.18 | 0.5660 | -537.0 | -465.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.17 | 159.17 | -32.49 | 107.31 | 0.5451 | -663.0 | -624.4 | |
| 0.00 | 1.83 | 0.00 | 1.10 | -17.10 | 158.32 | -33.34 | 110.42 | 0.5626 | -202.0 | -267.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -16.09 | 158.26 | -33.40 | 108.63 | 0.5603 | -309.0 | -360.6 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -15.91 | 158.26 | -33.40 | 108.31 | 0.5598 | -710.0 | -574.8 | |
| 0.00 | 2.97 | 0.00 | 1.78 | -15.24 | 157.86 | -33.80 | 107.01 | 0.5634 | -797.0 | -668.1 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -10.75 | 158.44 | -33.21 | 99.08 | 0.5471 | -781.0 | -648.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -15.44 | 157.67 | -33.98 | 107.30 | 0.5665 | -231.0 | -320.6 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -21.30 | 154.39 | -37.26 | 115.67 | 0.6281 | -330.0 | -421.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
