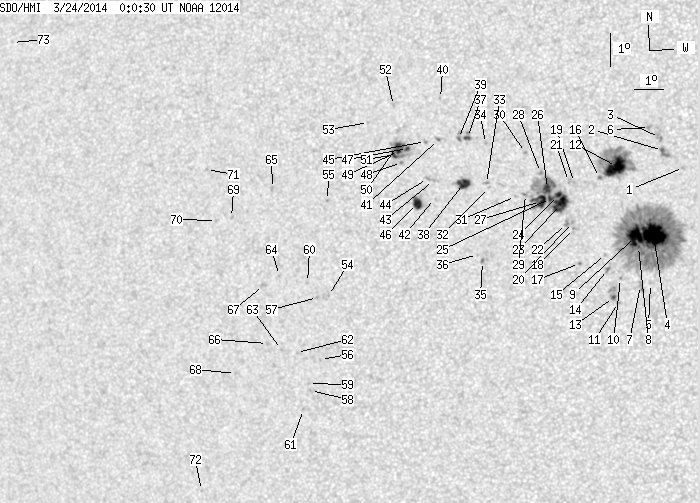

SDO HMI 2014-03-24 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.17 | 651.64 | 73.97 | 346.32 | -13.66 | 169.28 | -20.17 | 110.76 | 0.3594 | 474.4 | 312.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.91 | -12.37 | 172.54 | -16.91 | 109.36 | 0.3025 | 779.0 | 656.9 | |
| 0.61 | 6.02 | 0.32 | 3.14 | -11.83 | 171.90 | -17.54 | 107.13 | 0.3101 | 1069.4 | 883.6 | |
| 0.00 | 4.80 | 0.00 | 2.50 | -11.44 | 171.83 | -17.61 | 105.84 | 0.3097 | 785.0 | 779.9 | |
| 35.01 | 342.68 | 18.36 | 179.94 | -14.34 | 171.42 | -18.03 | 114.20 | 0.3301 | 1440.5 | 438.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -15.82 | 171.19 | -18.26 | 118.01 | 0.3429 | 651.0 | 495.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -11.13 | 171.53 | -17.91 | 104.66 | 0.3133 | 821.0 | 721.9 | |
| 0.00 | 3.32 | 0.00 | 1.75 | -15.87 | 170.86 | -18.59 | 117.75 | 0.3480 | 850.0 | 522.1 | |
| 1.13 | -4.00 | 0.60 | -4.00 | -14.69 | 170.90 | -18.54 | 114.62 | 0.3399 | 759.7 | 999999 | |
| 18.16 | -4.00 | 9.56 | -4.00 | -14.38 | 170.83 | -18.61 | 113.71 | 0.3392 | 1082.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -15.63 | 170.23 | -19.22 | 116.44 | 0.3556 | 445.0 | 296.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -16.35 | 170.09 | -19.36 | 118.15 | 0.3623 | -821.0 | -758.1 | |
| 22.26 | 76.74 | 11.70 | 40.34 | -12.26 | 170.39 | -19.06 | 107.28 | 0.3356 | 1227.9 | 456.7 | |
| 0.87 | 6.81 | 0.46 | 3.62 | -16.19 | 169.94 | -19.51 | 117.59 | 0.3634 | -1005.8 | -530.3 | |
| 0.00 | 2.79 | 0.00 | 1.48 | -15.34 | 169.83 | -19.62 | 115.29 | 0.3597 | 720.0 | 510.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.89 | 169.81 | -19.64 | 114.08 | 0.3574 | 547.0 | 415.2 | |
| 0.00 | 1.92 | 0.00 | 1.01 | -12.56 | 169.82 | -19.63 | 107.75 | 0.3458 | 697.0 | 566.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.12 | 168.93 | -20.52 | 113.88 | 0.3717 | -852.0 | -732.1 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -14.06 | 168.87 | -20.58 | 111.10 | 0.3671 | 917.0 | 688.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.68 | 168.99 | -20.46 | 107.51 | 0.3591 | 827.0 | 693.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.88 | 168.82 | -20.63 | 110.58 | 0.3670 | 932.0 | 799.2 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -12.64 | 168.80 | -20.65 | 107.28 | 0.3619 | 794.0 | 514.4 | |
| 0.00 | 3.06 | 0.00 | 1.63 | -13.90 | 168.62 | -20.83 | 110.49 | 0.3701 | 670.0 | 588.1 | |
| 15.19 | 83.03 | 8.09 | 44.32 | -13.32 | 168.48 | -20.97 | 108.87 | 0.3697 | 1062.6 | 539.3 | |
| 3.06 | -23.00 | 1.63 | -23.00 | -13.05 | 168.43 | -21.01 | 108.13 | 0.3692 | 1075.1 | 999999 | |
| 2.36 | -23.00 | 1.26 | -23.00 | -13.13 | 168.16 | -21.28 | 108.15 | 0.3736 | 1022.3 | 999999 | |
| 5.50 | -23.00 | 2.94 | -23.00 | -12.82 | 168.09 | -21.35 | 107.32 | 0.3735 | 1036.1 | 999999 | |
| 10.04 | -23.00 | 5.37 | -23.00 | -13.20 | 167.83 | -21.62 | 108.13 | 0.3791 | 768.5 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.12 | -12.33 | 167.91 | -21.54 | 105.93 | 0.3746 | 787.0 | 581.6 | |
| 0.00 | 1.66 | 0.00 | 0.89 | -12.97 | 167.35 | -22.09 | 107.25 | 0.3855 | 613.0 | 512.7 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.71 | 167.47 | -21.98 | 104.08 | 0.3795 | 907.0 | 728.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.01 | 167.02 | -22.43 | 107.17 | 0.3908 | 517.0 | 354.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -12.70 | 166.18 | -23.27 | 105.95 | 0.4025 | 439.0 | 321.0 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -12.58 | 166.09 | -23.35 | 105.61 | 0.4034 | -746.0 | -554.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -11.38 | 166.17 | -23.28 | 102.69 | 0.3988 | -934.0 | -717.6 | |
| 0.00 | 1.92 | 0.00 | 1.05 | -14.91 | 165.71 | -23.74 | 110.92 | 0.4183 | -916.0 | -754.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -14.70 | 165.56 | -23.88 | 110.33 | 0.4194 | -648.0 | -561.6 | |
| 1.66 | 4.54 | 0.90 | 2.46 | -11.17 | 165.59 | -23.86 | 101.96 | 0.4073 | -1017.3 | -791.1 | |
| 8.29 | 12.31 | 4.51 | 6.70 | -12.54 | 165.33 | -24.12 | 105.16 | 0.4150 | 920.7 | 491.8 | |
| 0.35 | 4.10 | 0.19 | 2.23 | -11.19 | 165.29 | -24.16 | 101.90 | 0.4120 | -887.5 | -683.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -9.96 | 164.79 | -24.65 | 98.81 | 0.4175 | 445.0 | 486.4 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -11.18 | 164.62 | -24.83 | 101.67 | 0.4224 | -701.0 | -501.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -12.94 | 164.31 | -25.14 | 105.63 | 0.4318 | -605.0 | -570.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -12.40 | 164.33 | -25.12 | 104.40 | 0.4298 | 891.0 | 692.6 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -12.33 | 164.14 | -25.31 | 104.17 | 0.4326 | 715.0 | 522.6 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -11.22 | 164.18 | -25.27 | 101.62 | 0.4293 | -780.0 | -616.9 | |
| 6.81 | 10.56 | 3.75 | 5.82 | -13.06 | 163.72 | -25.73 | 105.65 | 0.4410 | -977.5 | -700.4 | |
| 1.40 | 26.45 | 0.77 | 14.60 | -11.40 | 163.55 | -25.89 | 101.84 | 0.4392 | -984.9 | -607.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -11.81 | 163.31 | -26.14 | 102.68 | 0.4439 | -703.0 | -573.5 | |
| 1.75 | -47.00 | 0.96 | -47.00 | -11.47 | 163.24 | -26.21 | 101.92 | 0.4442 | -1015.3 | 999999 | |
| 2.36 | -47.00 | 1.30 | -47.00 | -11.29 | 163.22 | -26.22 | 101.50 | 0.4441 | -862.0 | 999999 | |
| 2.36 | -47.00 | 1.30 | -47.00 | -11.56 | 163.10 | -26.35 | 102.06 | 0.4466 | -684.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -10.09 | 163.20 | -26.24 | 98.79 | 0.4424 | 736.0 | 545.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -10.55 | 162.31 | -27.14 | 99.64 | 0.4568 | 661.0 | 514.0 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -15.66 | 160.27 | -29.18 | 109.52 | 0.5001 | -749.0 | -569.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -12.80 | 160.64 | -28.81 | 103.96 | 0.4862 | -854.0 | -720.3 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -17.57 | 159.65 | -29.79 | 112.87 | 0.5162 | -705.0 | -633.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -15.69 | 159.87 | -29.58 | 109.41 | 0.5059 | -755.0 | -591.9 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -18.49 | 159.12 | -30.33 | 114.27 | 0.5275 | -683.0 | -581.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -18.27 | 159.09 | -30.36 | 113.86 | 0.5269 | -706.0 | -566.4 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -15.22 | 159.59 | -29.86 | 108.38 | 0.5083 | -822.0 | -648.6 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -19.05 | 158.75 | -30.70 | 115.08 | 0.5350 | -638.0 | -474.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -17.31 | 158.83 | -30.62 | 111.97 | 0.5264 | -632.0 | -550.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -17.18 | 158.31 | -31.14 | 111.49 | 0.5331 | -717.0 | -576.1 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -14.95 | 158.63 | -30.82 | 107.49 | 0.5211 | -594.0 | -524.8 | |
| 0.00 | 1.92 | 0.00 | 1.11 | -12.33 | 158.76 | -30.69 | 102.50 | 0.5128 | -683.0 | -649.1 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -16.97 | 157.83 | -31.61 | 110.90 | 0.5388 | -652.0 | -585.6 | |
| 0.00 | 3.14 | 0.00 | 1.83 | -15.22 | 158.00 | -31.45 | 107.75 | 0.5307 | -721.0 | -570.2 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -17.80 | 156.48 | -32.97 | 111.78 | 0.5601 | -608.0 | -513.1 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -13.10 | 157.17 | -32.27 | 103.58 | 0.5371 | -638.0 | -539.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -13.16 | 156.62 | -32.83 | 103.55 | 0.5451 | -439.0 | -414.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -11.61 | 156.48 | -32.97 | 100.69 | 0.5446 | -670.0 | -470.2 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -21.27 | 154.34 | -35.11 | 116.58 | 0.6016 | -730.0 | -565.8 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -7.31 | 149.69 | -39.76 | 93.09 | 0.6376 | 551.0 | 447.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
