SDO HMI 2014-03-24 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.60 | 218.08 | 41.15 | 165.96 | 10.52 | 143.00 | -46.45 | 69.70 | 0.7612 | -203.5 | -127.8 | |
|
previous
or next observation for the same group /

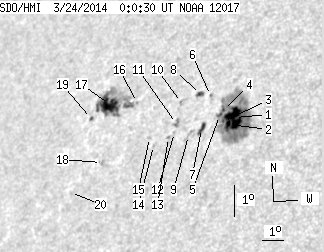

back to the solar disc SDO HMI 2014-03-24 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.91 | 127.99 | 16.02 | 93.56 | 10.26 | 145.16 | -44.28 | 69.14 | 0.7376 | -984.5 | -387.0 | |
| 3.93 | -1.00 | 2.88 | -1.00 | 10.06 | 144.94 | -44.51 | 69.49 | 0.7392 | -877.3 | 999999 | |
| 0.96 | -1.00 | 0.71 | -1.00 | 10.17 | 144.71 | -44.74 | 69.45 | 0.7422 | -542.2 | 999999 | |
| 0.87 | -1.00 | 0.65 | -1.00 | 10.55 | 144.64 | -44.81 | 69.00 | 0.7445 | -267.4 | 999999 | |
| 1.22 | -1.00 | 0.90 | -1.00 | 10.38 | 144.50 | -44.95 | 69.28 | 0.7453 | -392.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.85 | 11.05 | 143.98 | -45.47 | 68.66 | 0.7534 | -547.0 | -392.6 | |
| 3.14 | 5.50 | 2.35 | 4.11 | 10.04 | 143.78 | -45.67 | 70.02 | 0.7518 | -549.1 | -380.0 | |
| 2.01 | 4.19 | 1.52 | 3.17 | 11.12 | 143.53 | -45.92 | 68.77 | 0.7585 | -485.6 | -318.5 | |
| 0.00 | 4.28 | 0.00 | 3.23 | 9.87 | 143.24 | -46.21 | 70.45 | 0.7570 | -366.0 | -319.0 | |
| 0.00 | 1.92 | 0.00 | 1.47 | 10.95 | 142.72 | -46.72 | 69.33 | 0.7663 | 399.0 | 418.1 | |
| 0.00 | 3.75 | 0.00 | 2.87 | 10.30 | 142.63 | -46.82 | 70.17 | 0.7650 | -571.0 | -374.3 | |
| 0.00 | 0.87 | 0.00 | 0.67 | 10.02 | 142.59 | -46.85 | 70.53 | 0.7644 | -233.0 | -250.9 | |
| 0.00 | 1.48 | 0.00 | 1.14 | 9.89 | 142.35 | -47.10 | 70.79 | 0.7665 | -424.0 | -268.3 | |
| 0.00 | 0.61 | 0.00 | 0.47 | 9.70 | 141.71 | -47.74 | 71.27 | 0.7726 | 579.0 | 414.3 | |
| 0.00 | 1.48 | 0.00 | 1.16 | 9.97 | 141.48 | -47.97 | 71.03 | 0.7759 | -533.0 | -397.5 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 11.14 | 140.68 | -48.77 | 69.92 | 0.7879 | 503.0 | 402.1 | |
| 18.86 | 59.11 | 15.54 | 48.53 | 11.20 | 139.35 | -50.10 | 70.35 | 0.8014 | 751.2 | 454.0 | |
| 0.00 | 2.10 | 0.00 | 1.70 | 9.40 | 139.36 | -50.09 | 72.51 | 0.7957 | 610.0 | 468.6 | |
| 0.70 | 1.75 | 0.58 | 1.46 | 10.84 | 138.56 | -50.88 | 71.06 | 0.8079 | 301.9 | 235.8 | |
| 0.00 | 1.05 | 0.00 | 0.87 | 8.60 | 138.02 | -51.43 | 73.92 | 0.8067 | -638.0 | -505.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
