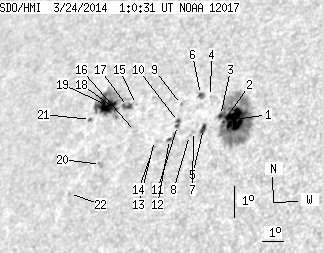

SDO HMI 2014-03-24 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.35 | 228.87 | 40.57 | 172.64 | 10.54 | 142.95 | -45.95 | 69.47 | 0.7558 | -164.1 | -129.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.71 | 132.64 | 17.89 | 95.90 | 10.25 | 145.16 | -43.74 | 68.91 | 0.7315 | -985.3 | -393.6 | |
| 0.61 | -1.00 | 0.45 | -1.00 | 10.22 | 144.70 | -44.20 | 69.15 | 0.7365 | -524.0 | 999999 | |
| 1.92 | -1.00 | 1.41 | -1.00 | 10.43 | 144.54 | -44.36 | 68.96 | 0.7391 | -422.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 11.07 | 143.99 | -44.91 | 68.39 | 0.7476 | -547.0 | -468.4 | |
| 2.71 | 5.06 | 2.00 | 3.75 | 10.08 | 143.87 | -45.03 | 69.70 | 0.7450 | -607.5 | -452.1 | |
| 0.96 | 3.75 | 0.72 | 2.81 | 11.17 | 143.53 | -45.37 | 68.47 | 0.7528 | -454.8 | -382.0 | |
| 0.00 | 1.31 | 0.00 | 0.98 | 10.03 | 143.45 | -45.45 | 69.95 | 0.7494 | -393.0 | -345.2 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 9.91 | 143.29 | -45.61 | 70.15 | 0.7507 | -424.0 | -353.2 | |
| 0.00 | 0.96 | 0.00 | 0.73 | 10.93 | 142.75 | -46.15 | 69.11 | 0.7602 | 455.0 | 398.6 | |
| 0.79 | 4.28 | 0.60 | 3.24 | 10.40 | 142.72 | -46.18 | 69.78 | 0.7586 | -482.7 | -356.4 | |
| 0.87 | -10.00 | 0.66 | -10.00 | 10.28 | 142.70 | -46.20 | 69.94 | 0.7583 | -525.2 | 999999 | |
| 0.96 | 3.67 | 0.73 | 2.78 | 9.87 | 142.42 | -46.48 | 70.57 | 0.7598 | -393.5 | -384.5 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 9.90 | 141.75 | -47.15 | 70.80 | 0.7671 | 262.0 | 287.8 | |
| 0.00 | 2.01 | 0.00 | 1.54 | 9.68 | 141.74 | -47.15 | 71.07 | 0.7664 | 591.0 | 455.3 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 11.12 | 140.68 | -48.22 | 69.72 | 0.7823 | 467.0 | 439.2 | |
| 0.00 | 1.83 | 0.00 | 1.44 | 10.27 | 140.82 | -48.08 | 70.71 | 0.7780 | 239.0 | 187.7 | |
| 2.79 | 64.97 | 2.23 | 52.79 | 11.10 | 140.27 | -48.63 | 69.91 | 0.7864 | 736.4 | 389.2 | |
| 1.05 | -17.00 | 0.85 | -17.00 | 11.05 | 139.72 | -49.18 | 70.17 | 0.7917 | 841.2 | 999999 | |
| 15.37 | -17.00 | 12.53 | -17.00 | 11.22 | 139.31 | -49.59 | 70.13 | 0.7964 | 785.3 | 999999 | |
| 0.00 | 2.71 | 0.00 | 2.18 | 9.38 | 139.37 | -49.53 | 72.33 | 0.7900 | 591.0 | 516.0 | |
| 0.61 | 1.66 | 0.50 | 1.37 | 10.85 | 138.58 | -50.31 | 70.84 | 0.8023 | 363.0 | 233.3 | |
| 0.00 | 1.22 | 0.00 | 1.01 | 8.61 | 138.04 | -50.85 | 73.72 | 0.8011 | -637.0 | -511.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
