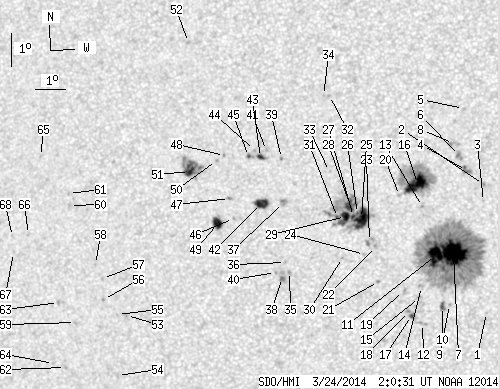

SDO HMI 2014-03-24 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.41 | 638.03 | 74.55 | 336.27 | -13.64 | 169.48 | -18.87 | 111.83 | 0.3399 | 480.4 | 311.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.41 | -16.20 | 172.37 | -15.98 | 122.06 | 0.3134 | 597.0 | 480.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -12.34 | 172.56 | -15.79 | 110.39 | 0.2849 | 916.0 | 760.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -12.85 | 172.52 | -15.83 | 112.05 | 0.2882 | 755.0 | 585.6 | |
| 0.00 | 5.68 | 0.00 | 2.94 | -11.91 | 172.04 | -16.31 | 108.43 | 0.2909 | 1074.0 | 912.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -10.05 | 172.06 | -16.29 | 102.09 | 0.2838 | 759.0 | 595.3 | |
| 0.00 | 5.15 | 0.00 | 2.67 | -11.45 | 171.85 | -16.50 | 106.74 | 0.2920 | 1071.0 | 830.3 | |
| 38.78 | 330.30 | 20.22 | 172.36 | -14.38 | 171.45 | -16.90 | 115.58 | 0.3136 | 1430.6 | 461.2 | |
| 0.00 | 4.89 | 0.00 | 2.53 | -11.08 | 171.68 | -16.67 | 105.38 | 0.2933 | 796.0 | 745.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -15.92 | 171.19 | -17.16 | 119.64 | 0.3278 | 768.0 | 606.5 | |
| 1.57 | 4.45 | 0.82 | 2.34 | -15.97 | 170.96 | -17.39 | 119.48 | 0.3315 | 858.8 | 611.2 | |
| 18.52 | -7.00 | 9.68 | -7.00 | -14.42 | 170.86 | -17.48 | 115.03 | 0.3225 | 1101.8 | 999999 | |
| 0.00 | 3.76 | 0.00 | 1.98 | -16.46 | 170.26 | -18.09 | 119.91 | 0.3451 | -718.0 | -573.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -12.94 | 170.56 | -17.79 | 110.33 | 0.3189 | -785.0 | -573.2 | |
| 0.00 | 2.53 | 0.00 | 1.33 | -15.34 | 170.33 | -18.02 | 117.00 | 0.3363 | 179.0 | 268.7 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -15.67 | 170.24 | -18.11 | 117.79 | 0.3398 | 448.0 | 276.9 | |
| 23.41 | 77.12 | 12.22 | 40.26 | -12.24 | 170.45 | -17.90 | 108.12 | 0.3174 | 1211.1 | 415.7 | |
| 1.05 | 3.32 | 0.55 | 1.75 | -16.20 | 169.92 | -18.43 | 118.84 | 0.3480 | -1018.0 | -773.2 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -16.08 | 169.84 | -18.51 | 118.41 | 0.3484 | -1091.0 | -844.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -15.44 | 169.73 | -18.61 | 116.60 | 0.3456 | 560.0 | 502.9 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -12.58 | 169.85 | -18.50 | 108.65 | 0.3283 | 737.0 | 540.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -15.14 | 168.94 | -19.41 | 114.97 | 0.3553 | -948.0 | -751.4 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -14.08 | 168.94 | -19.40 | 112.14 | 0.3494 | 899.0 | 758.4 | |
| 0.00 | 3.84 | 0.00 | 2.03 | -13.92 | 168.76 | -19.59 | 111.55 | 0.3514 | 407.0 | 687.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.30 | 168.56 | -19.79 | 112.41 | 0.3564 | 561.0 | 413.8 | |
| 18.43 | 85.33 | 9.74 | 45.21 | -13.22 | 168.56 | -19.79 | 109.47 | 0.3511 | 1116.0 | 493.7 | |
| 1.22 | -25.00 | 0.65 | -25.00 | -13.06 | 168.44 | -19.90 | 108.95 | 0.3522 | 1125.1 | 999999 | |
| 1.75 | -25.00 | 0.92 | -25.00 | -13.15 | 168.31 | -20.04 | 109.08 | 0.3547 | 1025.6 | 999999 | |
| 7.60 | -25.00 | 4.02 | -25.00 | -12.81 | 168.24 | -20.11 | 108.12 | 0.3543 | 1080.0 | 999999 | |
| 5.50 | -25.00 | 2.92 | -25.00 | -13.14 | 168.05 | -20.30 | 108.86 | 0.3586 | 933.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.36 | 167.83 | -20.51 | 111.95 | 0.3676 | -785.0 | -633.4 | |
| 0.44 | -25.00 | 0.23 | -25.00 | -13.16 | 167.78 | -20.57 | 108.73 | 0.3628 | 629.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -9.49 | 167.80 | -20.55 | 98.60 | 0.3516 | 854.0 | 645.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -11.77 | 167.64 | -20.71 | 104.88 | 0.3598 | 788.0 | 559.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -9.49 | 167.61 | -20.74 | 98.52 | 0.3547 | 756.0 | 589.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.71 | 166.04 | -22.31 | 111.43 | 0.3961 | -834.0 | -755.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.43 | 165.94 | -22.41 | 110.69 | 0.3964 | -816.0 | -594.5 | |
| 0.00 | 4.19 | 0.00 | 2.25 | -12.63 | 166.05 | -22.30 | 106.28 | 0.3874 | -244.0 | -307.9 | |
| 0.00 | 4.98 | 0.00 | 2.69 | -14.88 | 165.79 | -22.56 | 111.66 | 0.4007 | -1018.0 | -787.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.31 | 166.10 | -22.25 | 102.92 | 0.3825 | -861.0 | -619.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.72 | 165.57 | -22.78 | 111.12 | 0.4031 | -609.0 | -543.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -11.05 | 165.63 | -22.72 | 102.06 | 0.3893 | -776.0 | -651.9 | |
| 8.12 | 10.92 | 4.38 | 5.89 | -12.62 | 165.32 | -23.03 | 105.88 | 0.3986 | 960.5 | 588.6 | |
| 1.83 | 3.76 | 0.99 | 2.02 | -11.25 | 165.41 | -22.94 | 102.49 | 0.3932 | -923.3 | -743.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.03 | 165.23 | -23.12 | 101.87 | 0.3954 | -809.0 | -637.0 | |
| 0.87 | 2.71 | 0.47 | 1.46 | -11.20 | 165.02 | -23.33 | 102.22 | 0.3992 | -921.0 | -745.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.03 | 164.34 | -24.01 | 106.37 | 0.4149 | -818.0 | -607.8 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -12.42 | 164.27 | -24.08 | 104.90 | 0.4140 | 869.0 | 694.8 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -11.13 | 164.23 | -24.12 | 101.77 | 0.4114 | -466.0 | -443.6 | |
| 6.99 | 9.08 | 3.82 | 4.96 | -13.15 | 163.79 | -24.56 | 106.39 | 0.4236 | -984.2 | -661.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -11.26 | 163.95 | -24.40 | 102.01 | 0.4160 | -824.0 | -686.4 | |
| 5.33 | 26.99 | 2.92 | 14.79 | -11.55 | 163.01 | -25.34 | 102.36 | 0.4310 | -896.4 | -581.9 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -7.69 | 163.29 | -25.06 | 93.36 | 0.4222 | 798.0 | 601.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.75 | 160.32 | -28.03 | 110.26 | 0.4841 | -872.0 | -730.4 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -17.54 | 159.71 | -28.64 | 113.45 | 0.5002 | -770.0 | -566.2 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -15.70 | 160.01 | -28.34 | 110.01 | 0.4884 | -465.0 | -524.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -15.22 | 159.59 | -28.76 | 108.86 | 0.4926 | -810.0 | -679.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -14.59 | 159.64 | -28.70 | 107.63 | 0.4897 | -704.0 | -557.3 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -14.16 | 159.46 | -28.89 | 106.68 | 0.4910 | -721.0 | -620.6 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -15.86 | 158.49 | -29.86 | 109.61 | 0.5105 | -658.0 | -627.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.34 | 158.79 | -29.56 | 102.81 | 0.4963 | -713.0 | -665.7 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -11.97 | 158.80 | -29.55 | 102.09 | 0.4954 | -734.0 | -637.9 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -17.19 | 157.89 | -30.45 | 111.84 | 0.5237 | -710.0 | -579.8 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -15.22 | 157.98 | -30.37 | 108.18 | 0.5155 | -766.0 | -607.2 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -17.05 | 157.48 | -30.86 | 111.38 | 0.5288 | -571.0 | -458.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -10.81 | 157.95 | -30.40 | 99.59 | 0.5062 | -583.0 | -470.3 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -13.11 | 157.22 | -31.12 | 103.91 | 0.5207 | -628.0 | -472.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -13.62 | 156.61 | -31.74 | 104.69 | 0.5307 | -612.0 | -396.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -13.14 | 156.64 | -31.70 | 103.80 | 0.5291 | -602.0 | -500.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
