SDO HMI 2014-03-24 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.73 | 220.25 | 49.01 | 164.34 | 10.53 | 143.01 | -45.34 | 69.22 | 0.7494 | -84.0 | -178.3 | |
|
previous
or next observation for the same group /

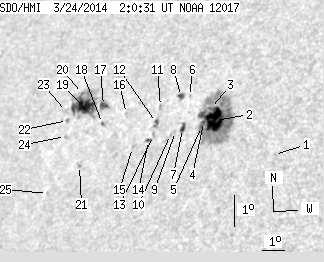

back to the solar disc SDO HMI 2014-03-24 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.54 | 8.95 | 147.84 | -40.50 | 69.10 | 0.6891 | -499.0 | -354.0 | |
| 27.69 | 129.61 | 19.84 | 92.79 | 10.23 | 145.20 | -43.15 | 68.67 | 0.7249 | -995.5 | -383.1 | |
| 0.61 | -2.00 | 0.44 | -2.00 | 10.62 | 144.96 | -43.38 | 68.27 | 0.7291 | -239.1 | 999999 | |
| 0.96 | -2.00 | 0.69 | -2.00 | 10.20 | 144.74 | -43.61 | 68.91 | 0.7298 | -561.8 | 999999 | |
| 0.96 | -2.00 | 0.69 | -2.00 | 10.08 | 144.68 | -43.67 | 69.09 | 0.7301 | -303.1 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 11.08 | 143.99 | -44.36 | 68.13 | 0.7416 | -464.0 | -443.4 | |
| 2.45 | 4.54 | 1.79 | 3.33 | 10.09 | 143.87 | -44.48 | 69.44 | 0.7390 | -589.8 | -455.6 | |
| 1.92 | 3.84 | 1.42 | 2.85 | 11.11 | 143.64 | -44.71 | 68.25 | 0.7455 | -490.9 | -317.0 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 10.03 | 143.58 | -44.76 | 69.65 | 0.7419 | -231.0 | -190.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 9.95 | 143.38 | -44.97 | 69.84 | 0.7438 | -470.0 | -388.2 | |
| 0.00 | 1.75 | 0.00 | 1.31 | 10.88 | 142.78 | -45.57 | 68.93 | 0.7539 | 502.0 | 444.1 | |
| 0.96 | 4.45 | 0.72 | 3.34 | 10.38 | 142.70 | -45.65 | 69.58 | 0.7529 | -480.9 | -407.5 | |
| 0.00 | 2.18 | 0.00 | 1.63 | 9.99 | 142.64 | -45.71 | 70.11 | 0.7520 | -549.0 | -353.0 | |
| 0.79 | 2.10 | 0.59 | 1.57 | 9.85 | 142.44 | -45.90 | 70.36 | 0.7536 | -411.8 | -312.6 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 9.69 | 141.77 | -46.58 | 70.83 | 0.7603 | 576.0 | 472.6 | |
| 0.00 | 1.05 | 0.00 | 0.81 | 10.79 | 141.29 | -47.06 | 69.66 | 0.7693 | 680.0 | 609.3 | |
| 3.41 | 5.41 | 2.69 | 4.28 | 11.15 | 140.17 | -48.18 | 69.68 | 0.7820 | 777.0 | 577.8 | |
| 0.52 | 1.31 | 0.41 | 1.03 | 10.58 | 140.24 | -48.10 | 70.34 | 0.7793 | 606.5 | 489.3 | |
| 24.02 | 53.62 | 19.38 | 43.25 | 11.20 | 139.23 | -49.12 | 69.97 | 0.7917 | 709.5 | 297.3 | |
| 0.44 | -19.00 | 0.35 | -19.00 | 11.62 | 139.08 | -49.27 | 69.52 | 0.7945 | 393.0 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.46 | 9.35 | 139.43 | -48.92 | 72.15 | 0.7837 | 661.0 | 559.2 | |
| 0.00 | 1.14 | 0.00 | 0.93 | 10.83 | 138.56 | -49.79 | 70.67 | 0.7971 | 416.0 | 369.8 | |
| 0.00 | 2.18 | 0.00 | 1.79 | 11.12 | 138.44 | -49.90 | 70.37 | 0.7992 | -266.0 | -173.8 | |
| 0.00 | 0.79 | 0.00 | 0.64 | 10.33 | 138.58 | -49.77 | 71.27 | 0.7954 | 516.0 | 505.9 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 8.62 | 138.06 | -50.28 | 73.53 | 0.7954 | -524.0 | -478.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
