SDO HMI 2014-03-24 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.65 | 15.89 | 6.76 | 12.40 | 3.17 | 137.05 | -49.66 | 80.12 | 0.7748 | -4.4 | -61.6 | |
|
previous
or next observation for the same group /

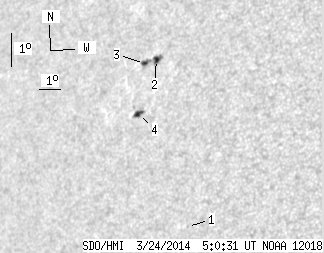

back to the solar disc SDO HMI 2014-03-24 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.52 | -1.24 | 138.93 | -47.78 | 85.41 | 0.7451 | 384.0 | 388.5 | |
| 3.06 | 5.50 | 2.38 | 4.28 | 3.95 | 137.38 | -49.32 | 79.03 | 0.7729 | -630.2 | -476.8 | |
| 2.27 | 4.19 | 1.78 | 3.29 | 3.88 | 136.83 | -49.87 | 79.27 | 0.7787 | -402.5 | -321.1 | |
| 3.32 | 5.50 | 2.60 | 4.31 | 2.38 | 136.65 | -50.06 | 81.21 | 0.7774 | 691.5 | 491.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
