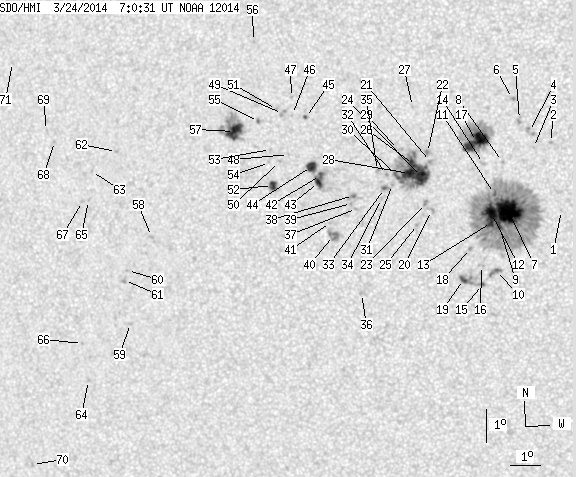

SDO HMI 2014-03-24 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.05 | 719.76 | 80.21 | 374.36 | -13.69 | 169.31 | -16.30 | 114.90 | 0.3016 | 445.3 | 317.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.49 | -14.35 | 173.17 | -12.44 | 122.35 | 0.2482 | -732.0 | -533.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.29 | 172.93 | -12.68 | 114.28 | 0.2363 | 1002.0 | 823.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -12.43 | 172.39 | -13.22 | 113.98 | 0.2455 | 957.0 | 747.2 | |
| 0.00 | 4.72 | 0.00 | 2.41 | -11.94 | 172.29 | -13.32 | 111.99 | 0.2442 | 749.0 | 828.9 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -11.58 | 172.00 | -13.61 | 110.18 | 0.2468 | 871.0 | 815.3 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -10.94 | 171.81 | -13.80 | 107.48 | 0.2467 | 1026.0 | 889.0 | |
| 35.91 | 363.15 | 18.48 | 187.04 | -14.33 | 171.49 | -14.12 | 119.31 | 0.2723 | 1553.2 | 478.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -12.82 | 171.39 | -14.22 | 114.00 | 0.2633 | -720.0 | -488.0 | |
| 1.14 | -7.00 | 0.59 | -7.00 | -14.77 | 171.17 | -14.44 | 120.24 | 0.2803 | 802.0 | 999999 | |
| 0.87 | 6.82 | 0.45 | 3.53 | -16.10 | 170.98 | -14.63 | 123.97 | 0.2939 | 1022.9 | 727.7 | |
| 1.05 | -7.00 | 0.54 | -7.00 | -13.77 | 171.08 | -14.53 | 116.84 | 0.2743 | 846.5 | 999999 | |
| 11.18 | -7.00 | 5.77 | -7.00 | -14.37 | 170.94 | -14.67 | 118.61 | 0.2806 | 1202.0 | 999999 | |
| 2.45 | -7.00 | 1.26 | -7.00 | -14.64 | 170.93 | -14.68 | 119.44 | 0.2829 | 1018.0 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.35 | -12.86 | 170.79 | -14.82 | 113.35 | 0.2729 | -872.0 | -593.8 | |
| 0.70 | 16.60 | 0.36 | 8.64 | -16.51 | 170.50 | -15.11 | 124.34 | 0.3041 | -954.2 | -735.8 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -15.93 | 170.51 | -15.10 | 122.71 | 0.2990 | 645.0 | 466.1 | |
| 25.78 | 73.57 | 13.26 | 37.85 | -12.19 | 170.61 | -15.00 | 110.81 | 0.2719 | 1241.0 | 463.0 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -15.41 | 170.20 | -15.41 | 120.68 | 0.2993 | 814.0 | 561.0 | |
| 2.88 | -15.00 | 1.50 | -15.00 | -16.34 | 169.90 | -15.71 | 122.90 | 0.3109 | -1126.1 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -14.22 | 169.03 | -16.58 | 115.54 | 0.3079 | 814.0 | 706.4 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -12.75 | 169.11 | -16.50 | 111.04 | 0.2982 | 1093.0 | 906.5 | |
| 0.00 | 3.15 | 0.00 | 1.63 | -12.47 | 169.03 | -16.58 | 110.09 | 0.2980 | 1131.0 | 898.2 | |
| 0.00 | 2.71 | 0.00 | 1.41 | -14.00 | 168.86 | -16.75 | 114.68 | 0.3092 | 809.0 | 711.7 | |
| 18.18 | 84.06 | 9.45 | 43.77 | -13.19 | 168.79 | -16.82 | 112.10 | 0.3054 | 1193.9 | 547.8 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -14.63 | 168.55 | -17.06 | 116.16 | 0.3177 | 719.0 | 610.3 | |
| 6.73 | -24.00 | 3.50 | -24.00 | -12.82 | 168.56 | -17.05 | 110.72 | 0.3070 | 1139.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.08 | 168.64 | -16.97 | 105.21 | 0.2981 | 834.0 | 673.8 | |
| 9.79 | -24.00 | 5.10 | -24.00 | -13.08 | 168.41 | -17.20 | 111.39 | 0.3107 | 1080.3 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.19 | -12.35 | 168.11 | -17.50 | 108.85 | 0.3118 | 636.0 | 510.2 | |
| 1.22 | -24.00 | 0.64 | -24.00 | -13.10 | 167.96 | -17.65 | 111.00 | 0.3177 | 777.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.39 | 167.84 | -17.77 | 111.77 | 0.3211 | 874.0 | 654.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -13.09 | 167.67 | -17.94 | 110.70 | 0.3221 | 672.0 | 436.4 | |
| 0.87 | 3.32 | 0.46 | 1.74 | -13.50 | 167.57 | -18.04 | 111.84 | 0.3258 | 716.3 | 513.8 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -13.80 | 167.45 | -18.16 | 112.58 | 0.3292 | 495.0 | 307.7 | |
| 0.00 | 1.92 | 0.00 | 1.01 | -12.95 | 167.39 | -18.22 | 110.06 | 0.3258 | 835.0 | 582.4 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -16.64 | 166.53 | -19.08 | 119.26 | 0.3605 | 777.0 | 626.4 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.07 | 166.62 | -18.99 | 112.55 | 0.3433 | -736.0 | -637.8 | |
| 0.35 | 5.33 | 0.18 | 2.81 | -13.68 | 166.55 | -19.06 | 111.39 | 0.3422 | 410.8 | 133.5 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -13.91 | 166.47 | -19.14 | 111.98 | 0.3448 | -864.0 | -635.3 | |
| 0.00 | 10.05 | 0.00 | 5.33 | -14.85 | 165.79 | -19.82 | 113.89 | 0.3600 | -1085.0 | -821.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.46 | 165.73 | -19.88 | 112.79 | 0.3587 | -843.0 | -659.2 | |
| 2.10 | 24.12 | 1.11 | 12.78 | -13.03 | 165.53 | -20.08 | 108.80 | 0.3548 | -1024.8 | -321.4 | |
| 4.28 | -42.00 | 2.27 | -42.00 | -13.24 | 165.45 | -20.16 | 109.30 | 0.3570 | -1004.4 | 999999 | |
| 6.99 | -42.00 | 3.71 | -42.00 | -12.75 | 165.26 | -20.35 | 107.84 | 0.3578 | 900.6 | 999999 | |
| 0.61 | 1.66 | 0.32 | 0.88 | -11.27 | 165.18 | -20.42 | 103.72 | 0.3538 | -803.6 | -645.0 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -11.17 | 164.77 | -20.84 | 103.22 | 0.3601 | -724.0 | -537.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -10.66 | 164.77 | -20.83 | 101.82 | 0.3587 | 659.0 | 468.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -12.36 | 164.54 | -21.07 | 106.33 | 0.3675 | -642.0 | -411.0 | |
| 0.00 | 3.50 | 0.00 | 1.86 | -11.12 | 164.45 | -21.16 | 102.95 | 0.3651 | -861.0 | -773.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -12.55 | 164.23 | -21.38 | 106.66 | 0.3731 | 656.0 | 390.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -10.99 | 164.26 | -21.35 | 102.52 | 0.3677 | -926.0 | -781.2 | |
| 4.63 | 6.90 | 2.48 | 3.69 | -13.26 | 163.93 | -21.68 | 108.32 | 0.3804 | -1057.4 | -723.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -12.18 | 163.97 | -21.64 | 105.54 | 0.3758 | 718.0 | 555.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.57 | 163.90 | -21.71 | 106.51 | 0.3782 | -618.0 | -444.8 | |
| 0.44 | 1.57 | 0.23 | 0.84 | -11.33 | 163.64 | -21.97 | 103.14 | 0.3783 | -970.2 | -847.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -8.93 | 163.66 | -21.95 | 96.78 | 0.3736 | 730.0 | 616.1 | |
| 15.90 | 41.94 | 8.55 | 22.57 | -11.59 | 162.83 | -22.78 | 103.47 | 0.3917 | -1022.2 | -159.5 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -14.60 | 159.71 | -25.90 | 109.00 | 0.4490 | -820.0 | -678.4 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -17.18 | 158.61 | -27.00 | 113.76 | 0.4759 | -785.0 | -585.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -15.58 | 158.74 | -26.87 | 110.56 | 0.4669 | -782.0 | -659.7 | |
| 0.00 | 2.97 | 0.00 | 1.67 | -15.87 | 158.60 | -27.01 | 111.09 | 0.4702 | -842.0 | -668.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -11.99 | 158.82 | -26.79 | 102.93 | 0.4543 | -943.0 | -772.9 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -12.54 | 157.89 | -27.72 | 103.81 | 0.4695 | -686.0 | -524.3 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -18.83 | 156.82 | -28.79 | 115.84 | 0.5084 | -728.0 | -522.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -13.40 | 157.68 | -27.93 | 105.55 | 0.4749 | -720.0 | -530.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -17.70 | 156.82 | -28.79 | 113.69 | 0.5031 | -687.0 | -516.0 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -13.42 | 157.47 | -28.14 | 105.51 | 0.4780 | -725.0 | -642.0 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -11.57 | 156.72 | -28.89 | 101.46 | 0.4849 | -741.0 | -542.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -11.22 | 156.48 | -29.13 | 100.70 | 0.4879 | -518.0 | -395.6 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -21.27 | 154.24 | -31.37 | 118.60 | 0.5547 | -875.0 | -728.9 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -9.12 | 155.51 | -30.10 | 96.30 | 0.5002 | -755.0 | -620.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
