SDO HMI 2014-03-24 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.56 | 760.20 | 91.93 | 393.31 | -13.68 | 169.31 | -15.20 | 116.41 | 0.2854 | 507.9 | 297.7 | |
|
previous
or next observation for the same group /

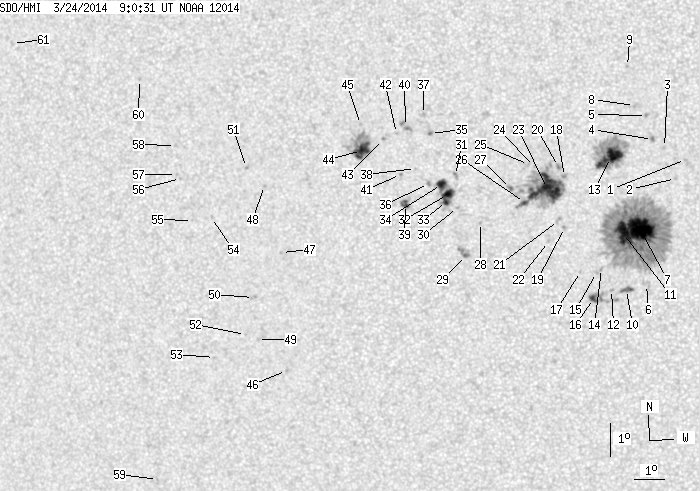

back to the solar disc SDO HMI 2014-03-24 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.28 | 173.03 | -11.48 | 116.32 | 0.2180 | 874.0 | 615.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -12.85 | 172.69 | -11.82 | 117.98 | 0.2272 | 886.0 | 699.1 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -11.91 | 172.39 | -12.12 | 113.65 | 0.2253 | 921.0 | 796.8 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -11.66 | 172.03 | -12.48 | 112.06 | 0.2295 | 1087.0 | 886.6 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -10.93 | 171.88 | -12.64 | 108.83 | 0.2280 | 1040.0 | 868.6 | |
| 0.00 | 6.03 | 0.00 | 3.10 | -16.02 | 171.59 | -12.92 | 126.90 | 0.2700 | -118.0 | -158.5 | |
| 41.77 | 386.65 | 21.40 | 198.27 | -14.35 | 171.51 | -13.01 | 121.33 | 0.2564 | 1504.5 | 434.6 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -10.62 | 171.52 | -13.00 | 107.10 | 0.2324 | 833.0 | 689.1 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -9.45 | 171.35 | -13.17 | 101.98 | 0.2308 | 861.0 | 713.2 | |
| 0.00 | 6.55 | 0.00 | 3.38 | -16.15 | 170.95 | -13.57 | 126.04 | 0.2800 | 971.0 | 796.8 | |
| 23.33 | -7.00 | 11.98 | -7.00 | -14.46 | 170.96 | -13.55 | 120.71 | 0.2651 | 1116.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -16.14 | 170.47 | -14.05 | 125.11 | 0.2864 | 611.0 | 353.6 | |
| 24.12 | 75.23 | 12.35 | 38.50 | -12.16 | 170.69 | -13.83 | 112.16 | 0.2534 | 1243.3 | 470.8 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -15.49 | 170.19 | -14.32 | 122.70 | 0.2846 | 656.0 | 470.0 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -15.61 | 170.02 | -14.49 | 122.76 | 0.2879 | 287.0 | 293.5 | |
| 3.15 | 16.08 | 1.63 | 8.33 | -16.39 | 169.87 | -14.65 | 124.81 | 0.2968 | -1064.2 | -788.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -15.56 | 169.51 | -15.00 | 121.79 | 0.2947 | -681.0 | -596.1 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -12.69 | 169.20 | -15.31 | 112.18 | 0.2795 | 1094.0 | 897.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -14.22 | 169.10 | -15.42 | 117.06 | 0.2907 | 871.0 | 723.1 | |
| 0.00 | 2.88 | 0.00 | 1.49 | -12.38 | 169.03 | -15.49 | 110.94 | 0.2805 | 1080.0 | 902.4 | |
| 0.00 | 3.06 | 0.00 | 1.58 | -14.00 | 168.92 | -15.59 | 116.14 | 0.2918 | 651.0 | 609.9 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -14.62 | 168.56 | -15.96 | 117.57 | 0.3015 | 759.0 | 616.5 | |
| 44.30 | 107.21 | 22.92 | 55.52 | -13.03 | 168.64 | -15.88 | 112.66 | 0.2901 | 1101.9 | 454.5 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -12.35 | 168.27 | -16.25 | 110.06 | 0.2923 | 725.0 | 575.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -12.29 | 168.08 | -16.43 | 109.66 | 0.2949 | 723.0 | 532.1 | |
| 2.10 | -23.00 | 1.09 | -23.00 | -13.42 | 167.88 | -16.64 | 113.06 | 0.3041 | 795.5 | 999999 | |
| 0.61 | 3.15 | 0.32 | 1.64 | -12.99 | 167.46 | -17.06 | 111.27 | 0.3081 | 847.0 | 644.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -13.97 | 166.41 | -18.10 | 113.16 | 0.3294 | -595.0 | -473.5 | |
| 0.61 | 8.48 | 0.32 | 4.47 | -14.95 | 165.84 | -18.68 | 115.29 | 0.3437 | -879.9 | -775.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -13.49 | 165.71 | -18.81 | 111.13 | 0.3376 | -716.0 | -624.9 | |
| 0.00 | 3.15 | 0.00 | 1.65 | -12.53 | 165.72 | -18.80 | 108.37 | 0.3329 | 821.0 | 694.1 | |
| 7.86 | 31.19 | 4.14 | 16.43 | -13.09 | 165.42 | -19.10 | 109.74 | 0.3401 | -1211.0 | -377.5 | |
| 3.23 | -32.00 | 1.70 | -32.00 | -13.30 | 165.37 | -19.15 | 110.29 | 0.3419 | -934.6 | 999999 | |
| 6.99 | -32.00 | 3.68 | -32.00 | -12.78 | 165.25 | -19.27 | 108.73 | 0.3413 | 607.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -11.24 | 165.01 | -19.51 | 104.14 | 0.3393 | -1056.0 | -792.5 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -12.74 | 164.83 | -19.69 | 108.29 | 0.3476 | 837.0 | 621.9 | |
| 0.00 | 2.80 | 0.00 | 1.47 | -10.66 | 164.82 | -19.69 | 102.36 | 0.3405 | 734.0 | 463.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -12.27 | 164.44 | -20.07 | 106.72 | 0.3518 | -664.0 | -513.3 | |
| 3.76 | 6.73 | 2.00 | 3.57 | -13.34 | 164.02 | -20.49 | 109.34 | 0.3626 | -1022.7 | -647.8 | |
| 0.00 | 5.77 | 0.00 | 3.05 | -11.00 | 164.21 | -20.30 | 103.04 | 0.3511 | -887.0 | -841.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -12.43 | 163.94 | -20.58 | 106.84 | 0.3602 | 759.0 | 632.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.20 | 163.91 | -20.61 | 103.44 | 0.3566 | -657.0 | -382.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -11.36 | 163.47 | -21.05 | 103.67 | 0.3639 | -986.0 | -865.3 | |
| 15.73 | 41.77 | 8.40 | 22.32 | -11.65 | 162.72 | -21.79 | 104.10 | 0.3765 | -1032.3 | -168.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -10.88 | 162.75 | -21.76 | 102.06 | 0.3739 | 771.0 | 590.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -18.16 | 159.43 | -25.09 | 117.09 | 0.4545 | -806.0 | -606.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.59 | 159.75 | -24.77 | 109.62 | 0.4322 | -757.0 | -729.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.55 | 159.40 | -25.11 | 104.81 | 0.4303 | -734.0 | -616.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -17.17 | 158.57 | -25.95 | 114.43 | 0.4611 | -754.0 | -578.4 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -15.89 | 158.62 | -25.90 | 111.80 | 0.4543 | -803.0 | -599.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -11.98 | 158.85 | -25.66 | 103.30 | 0.4371 | -906.0 | -777.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -17.00 | 158.18 | -26.34 | 113.82 | 0.4657 | -648.0 | -579.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -17.64 | 156.99 | -27.53 | 114.34 | 0.4855 | -669.0 | -517.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.41 | 157.49 | -27.02 | 105.94 | 0.4615 | -685.0 | -601.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -13.47 | 156.83 | -27.69 | 105.79 | 0.4715 | -660.0 | -545.4 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -12.19 | 156.57 | -27.95 | 103.01 | 0.4721 | -675.0 | -584.0 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -12.06 | 156.44 | -28.07 | 102.71 | 0.4737 | -675.0 | -524.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -11.19 | 156.51 | -28.01 | 100.89 | 0.4711 | -604.0 | -469.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -21.24 | 154.21 | -30.31 | 119.21 | 0.5410 | -571.0 | -515.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -9.15 | 155.46 | -29.05 | 96.45 | 0.4845 | -748.0 | -651.5 | |
| 0.00 | 2.10 | 0.00 | 1.24 | -7.79 | 151.09 | -33.43 | 93.70 | 0.5491 | 103.0 | 206.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
