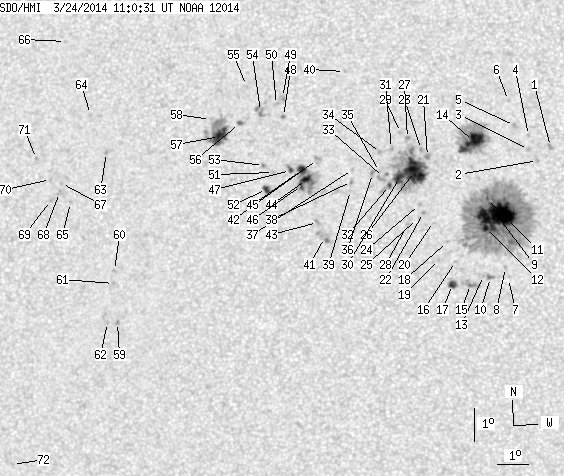

SDO HMI 2014-03-24 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 164.76 | 786.04 | 84.84 | 404.77 | -13.60 | 169.26 | -14.16 | 117.76 | 0.2695 | 523.6 | 283.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 1.37 | -12.33 | 173.15 | -10.27 | 119.05 | 0.2002 | 885.0 | 812.0 | |
| 0.00 | 1.83 | 0.00 | 0.93 | -12.74 | 172.73 | -10.69 | 119.89 | 0.2097 | 885.0 | 759.6 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -12.41 | 172.46 | -10.96 | 117.90 | 0.2111 | 916.0 | 710.5 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -11.99 | 172.48 | -10.94 | 116.11 | 0.2077 | 1002.0 | 756.3 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -11.68 | 172.06 | -11.36 | 113.96 | 0.2121 | 910.0 | 807.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.92 | 171.90 | -11.52 | 110.35 | 0.2101 | 1023.0 | 781.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -16.28 | 171.63 | -11.79 | 130.16 | 0.2579 | -352.0 | -435.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -15.94 | 171.55 | -11.87 | 128.94 | 0.2554 | 402.0 | 207.4 | |
| 56.52 | 393.92 | 28.85 | 201.16 | -14.37 | 171.39 | -12.03 | 123.32 | 0.2427 | 1379.5 | 448.2 | |
| 0.00 | 3.15 | 0.00 | 1.61 | -16.23 | 171.06 | -12.36 | 128.75 | 0.2648 | 990.0 | 711.8 | |
| 1.14 | -9.00 | 0.58 | -9.00 | -13.85 | 171.11 | -12.32 | 120.88 | 0.2424 | 880.6 | 999999 | |
| 2.80 | -9.00 | 1.43 | -9.00 | -14.75 | 170.99 | -12.43 | 123.82 | 0.2517 | 968.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -16.17 | 170.84 | -12.58 | 128.09 | 0.2670 | 687.0 | 554.1 | |
| 22.98 | 79.24 | 11.71 | 40.37 | -12.12 | 170.76 | -12.67 | 113.70 | 0.2352 | 1239.2 | 449.9 | |
| 0.00 | 8.04 | 0.00 | 4.14 | -16.43 | 170.41 | -13.02 | 127.98 | 0.2753 | -1031.0 | -707.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.72 | 169.98 | -13.45 | 124.99 | 0.2745 | 630.0 | 442.3 | |
| 3.67 | 5.15 | 1.89 | 2.66 | -16.41 | 169.83 | -13.59 | 126.80 | 0.2828 | -1069.9 | -801.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -15.11 | 169.76 | -13.66 | 122.68 | 0.2721 | 535.0 | 314.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -15.64 | 169.44 | -13.98 | 123.77 | 0.2812 | -766.0 | -627.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -14.49 | 169.36 | -14.06 | 119.99 | 0.2729 | 235.0 | 395.2 | |
| 0.00 | 3.41 | 0.00 | 1.75 | -12.53 | 169.29 | -14.13 | 113.14 | 0.2604 | 1068.0 | 866.4 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -14.21 | 169.06 | -14.36 | 118.59 | 0.2751 | 883.0 | 699.2 | |
| 0.00 | 1.83 | 0.00 | 0.94 | -12.32 | 169.11 | -14.31 | 112.14 | 0.2619 | 937.0 | 820.8 | |
| 0.00 | 1.83 | 0.00 | 0.94 | -13.97 | 168.95 | -14.48 | 117.62 | 0.2750 | 781.0 | 623.6 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -14.39 | 168.85 | -14.57 | 118.85 | 0.2794 | 426.0 | 481.5 | |
| 34.33 | 96.10 | 17.66 | 49.47 | -12.97 | 168.85 | -14.57 | 114.11 | 0.2698 | 1172.2 | 518.7 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -11.97 | 168.69 | -14.73 | 110.39 | 0.2666 | 888.0 | 770.8 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -14.56 | 168.52 | -14.90 | 118.89 | 0.2855 | 612.0 | 518.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -11.79 | 168.48 | -14.94 | 109.49 | 0.2690 | 616.0 | 646.8 | |
| 9.09 | -26.00 | 4.68 | -26.00 | -13.14 | 168.36 | -15.06 | 114.03 | 0.2783 | 854.8 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -12.26 | 168.16 | -15.26 | 110.80 | 0.2763 | 678.0 | 551.9 | |
| 1.22 | -26.00 | 0.63 | -26.00 | -13.37 | 168.03 | -15.39 | 114.37 | 0.2848 | 779.4 | 999999 | |
| 0.00 | 5.68 | 0.00 | 2.93 | -13.12 | 167.86 | -15.57 | 113.35 | 0.2859 | 117.0 | 252.3 | |
| 0.00 | 2.01 | 0.00 | 1.04 | -12.37 | 167.81 | -15.61 | 110.78 | 0.2824 | 698.0 | 575.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.94 | 167.74 | -15.68 | 112.61 | 0.2866 | 719.0 | 499.7 | |
| 0.00 | 2.53 | 0.00 | 1.31 | -12.99 | 167.51 | -15.91 | 112.52 | 0.2904 | 774.0 | 633.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -12.85 | 166.88 | -16.54 | 111.38 | 0.2993 | 753.0 | 536.9 | |
| 0.00 | 2.10 | 0.00 | 1.09 | -13.21 | 166.83 | -16.59 | 112.45 | 0.3022 | 780.0 | 560.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -13.48 | 166.78 | -16.65 | 113.23 | 0.3045 | 441.0 | 348.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -9.90 | 166.81 | -16.61 | 101.54 | 0.2887 | 772.0 | 575.1 | |
| 0.00 | 9.70 | 0.00 | 5.08 | -14.86 | 165.83 | -17.59 | 116.25 | 0.3272 | -602.0 | -701.1 | |
| 0.00 | 4.46 | 0.00 | 2.32 | -12.51 | 165.79 | -17.64 | 109.27 | 0.3147 | 885.0 | 684.8 | |
| 0.00 | 2.71 | 0.00 | 1.42 | -14.40 | 165.64 | -17.78 | 114.73 | 0.3271 | -703.0 | -607.3 | |
| 4.28 | 41.24 | 2.24 | 21.58 | -13.09 | 165.39 | -18.03 | 110.68 | 0.3237 | -1191.1 | -539.6 | |
| 5.85 | -44.00 | 3.06 | -44.00 | -12.79 | 165.28 | -18.14 | 109.68 | 0.3239 | 556.7 | 999999 | |
| 1.83 | -44.00 | 0.96 | -44.00 | -13.27 | 165.21 | -18.21 | 111.03 | 0.3273 | -906.1 | 999999 | |
| 1.49 | 3.58 | 0.78 | 1.88 | -12.80 | 164.89 | -18.53 | 109.40 | 0.3300 | 698.2 | 327.7 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -11.18 | 164.79 | -18.63 | 104.48 | 0.3252 | -898.0 | -698.1 | |
| 0.00 | 3.67 | 0.00 | 1.92 | -10.61 | 164.79 | -18.63 | 102.75 | 0.3233 | 706.0 | 567.4 | |
| 0.00 | 2.10 | 0.00 | 1.10 | -10.81 | 164.59 | -18.84 | 103.25 | 0.3272 | -529.0 | -361.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.84 | 164.34 | -19.08 | 109.06 | 0.3387 | -713.0 | -472.6 | |
| 3.23 | 4.98 | 1.70 | 2.63 | -13.34 | 164.07 | -19.35 | 110.26 | 0.3452 | -997.2 | -770.5 | |
| 0.00 | 2.01 | 0.00 | 1.06 | -12.62 | 164.03 | -19.39 | 108.20 | 0.3425 | 784.0 | 518.0 | |
| 0.00 | 7.43 | 0.00 | 3.90 | -11.00 | 164.06 | -19.36 | 103.53 | 0.3362 | -1004.0 | -811.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -10.20 | 163.66 | -19.76 | 101.01 | 0.3405 | 642.0 | 557.4 | |
| 0.87 | 3.06 | 0.46 | 1.61 | -11.33 | 163.35 | -20.07 | 104.11 | 0.3484 | -947.9 | -776.5 | |
| 15.46 | 41.32 | 8.21 | 21.93 | -11.69 | 162.67 | -20.75 | 104.75 | 0.3603 | -1017.9 | -259.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -11.17 | 162.42 | -21.00 | 103.20 | 0.3627 | 609.0 | 516.0 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -17.13 | 158.66 | -24.76 | 115.20 | 0.4442 | -852.0 | -730.8 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -15.56 | 158.77 | -24.65 | 111.86 | 0.4348 | -707.0 | -581.5 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.95 | 158.69 | -24.74 | 112.66 | 0.4378 | -830.0 | -696.7 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -17.11 | 158.32 | -25.11 | 114.91 | 0.4490 | -587.0 | -436.8 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -12.00 | 158.91 | -24.52 | 103.79 | 0.4197 | -946.0 | -765.0 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -10.83 | 158.48 | -24.94 | 100.90 | 0.4236 | -611.0 | -438.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.43 | 157.53 | -25.89 | 106.49 | 0.4448 | -722.0 | -587.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -8.61 | 157.82 | -25.60 | 95.57 | 0.4311 | -691.0 | -574.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -12.85 | 157.29 | -26.13 | 105.09 | 0.4466 | -735.0 | -574.1 | |
| 0.00 | 3.15 | 0.00 | 1.74 | -13.12 | 157.19 | -26.23 | 105.63 | 0.4489 | -591.0 | -590.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.34 | 156.86 | -26.57 | 105.98 | 0.4546 | -757.0 | -638.4 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -12.71 | 156.93 | -26.49 | 104.64 | 0.4516 | -559.0 | -451.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -12.05 | 156.52 | -26.90 | 103.07 | 0.4561 | -708.0 | -553.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.26 | 154.18 | -29.24 | 119.96 | 0.5275 | -630.0 | -538.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
