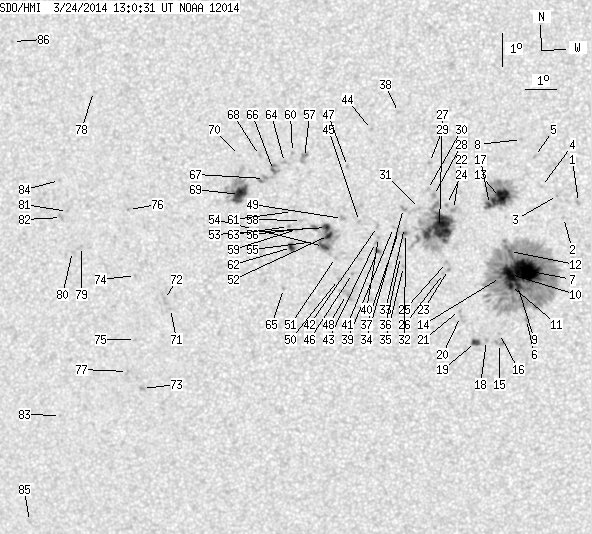

SDO HMI 2014-03-24 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 155.73 | 815.91 | 79.81 | 418.63 | -13.55 | 169.08 | -13.24 | 119.22 | 0.2558 | 428.2 | 279.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 1.06 | -12.30 | 173.27 | -9.06 | 121.90 | 0.1820 | 917.0 | 761.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.74 | 172.79 | -9.54 | 122.64 | 0.1929 | 842.0 | 616.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.07 | 172.62 | -9.70 | 119.20 | 0.1896 | 918.0 | 758.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.79 | 172.14 | -10.19 | 116.78 | 0.1948 | 976.0 | 673.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -10.89 | 171.96 | -10.37 | 112.09 | 0.1916 | 1018.0 | 744.8 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -15.78 | 171.48 | -10.84 | 130.89 | 0.2405 | 748.0 | 477.7 | |
| 35.11 | 401.43 | 17.84 | 204.23 | -14.31 | 171.53 | -10.80 | 125.86 | 0.2250 | 1480.6 | 452.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -10.37 | 171.57 | -10.75 | 108.91 | 0.1949 | 884.0 | 637.6 | |
| 2.18 | -7.00 | 1.11 | -7.00 | -14.75 | 171.25 | -11.07 | 126.82 | 0.2330 | 995.9 | 999999 | |
| 12.58 | -7.00 | 6.40 | -7.00 | -14.41 | 171.05 | -11.27 | 125.14 | 0.2326 | 1165.5 | 999999 | |
| 3.14 | -7.00 | 1.60 | -7.00 | -14.75 | 171.03 | -11.29 | 126.28 | 0.2359 | 988.5 | 999999 | |
| 0.87 | -7.00 | 0.44 | -7.00 | -13.72 | 171.06 | -11.27 | 122.57 | 0.2263 | 861.4 | 999999 | |
| 20.00 | 75.20 | 10.15 | 38.14 | -12.09 | 170.85 | -11.47 | 115.58 | 0.2166 | 1257.7 | 484.8 | |
| 0.61 | -7.00 | 0.31 | -7.00 | -14.50 | 170.73 | -11.59 | 124.72 | 0.2378 | 704.7 | 999999 | |
| 0.00 | 4.02 | 0.00 | 2.06 | -16.49 | 170.58 | -11.74 | 130.94 | 0.2595 | -970.0 | -841.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -16.19 | 170.60 | -11.72 | 130.05 | 0.2560 | -770.0 | -482.8 | |
| 2.27 | -13.00 | 1.15 | -13.00 | -12.29 | 170.50 | -11.83 | 115.79 | 0.2234 | 966.8 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -16.39 | 170.18 | -12.15 | 129.71 | 0.2636 | -592.0 | -501.6 | |
| 3.41 | 5.24 | 1.75 | 2.69 | -16.44 | 169.82 | -12.50 | 129.09 | 0.2687 | -1012.4 | -774.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -15.64 | 169.40 | -12.93 | 125.76 | 0.2667 | -985.0 | -771.8 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -15.46 | 169.38 | -12.95 | 125.14 | 0.2653 | -677.0 | -593.5 | |
| 0.00 | 2.79 | 0.00 | 1.43 | -12.41 | 169.37 | -12.96 | 114.39 | 0.2416 | 1006.0 | 883.6 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -14.21 | 169.11 | -13.22 | 120.51 | 0.2584 | 870.0 | 729.6 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -12.26 | 169.15 | -13.17 | 113.48 | 0.2439 | 960.0 | 808.8 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -14.00 | 169.06 | -13.27 | 119.69 | 0.2575 | 864.0 | 648.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -14.33 | 168.94 | -13.38 | 120.61 | 0.2618 | 594.0 | 417.5 | |
| 41.40 | 109.35 | 21.19 | 56.00 | -12.94 | 168.90 | -13.43 | 115.65 | 0.2522 | 1122.4 | 491.5 | |
| 0.00 | 3.14 | 0.00 | 1.61 | -11.98 | 168.76 | -13.56 | 111.85 | 0.2483 | 894.0 | 748.1 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -10.99 | 168.68 | -13.64 | 107.91 | 0.2444 | 878.0 | 683.2 | |
| 0.00 | 2.01 | 0.00 | 1.03 | -11.79 | 168.58 | -13.74 | 110.91 | 0.2501 | 749.0 | 609.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.35 | 168.30 | -14.03 | 112.65 | 0.2577 | 790.0 | 626.1 | |
| 0.61 | 3.84 | 0.31 | 1.98 | -13.09 | 167.81 | -14.51 | 114.61 | 0.2697 | 771.6 | 495.5 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -12.91 | 167.79 | -14.53 | 113.96 | 0.2689 | 632.0 | 524.5 | |
| 0.00 | 3.06 | 0.00 | 1.57 | -12.34 | 167.79 | -14.53 | 111.95 | 0.2654 | 748.0 | 667.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -14.08 | 167.69 | -14.64 | 117.76 | 0.2783 | 632.0 | 440.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -13.78 | 167.61 | -14.71 | 116.65 | 0.2773 | 715.0 | 544.9 | |
| 0.00 | 3.32 | 0.00 | 1.71 | -13.02 | 167.60 | -14.73 | 114.09 | 0.2726 | 458.0 | 475.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -9.46 | 167.79 | -14.54 | 101.13 | 0.2535 | 794.0 | 644.6 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -12.90 | 167.44 | -14.88 | 113.47 | 0.2741 | 731.0 | 523.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -13.18 | 166.95 | -15.38 | 113.80 | 0.2834 | 955.0 | 712.1 | |
| 1.05 | 3.23 | 0.54 | 1.67 | -13.57 | 166.89 | -15.43 | 115.01 | 0.2867 | 821.1 | 660.6 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -12.85 | 166.94 | -15.39 | 112.69 | 0.2816 | 746.0 | 535.5 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -13.33 | 166.84 | -15.48 | 114.16 | 0.2859 | 708.0 | 596.3 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -9.94 | 166.91 | -15.41 | 102.40 | 0.2692 | 873.0 | 646.6 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -12.68 | 166.38 | -15.95 | 111.49 | 0.2894 | -858.0 | -607.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -14.24 | 166.04 | -16.28 | 116.02 | 0.3037 | -910.0 | -665.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -11.02 | 166.10 | -16.23 | 105.65 | 0.2861 | 772.0 | 619.3 | |
| 0.00 | 6.99 | 0.00 | 3.64 | -14.87 | 165.80 | -16.52 | 117.58 | 0.3115 | -855.0 | -713.0 | |
| 0.00 | 2.79 | 0.00 | 1.45 | -12.58 | 165.84 | -16.48 | 110.57 | 0.2971 | 894.0 | 699.3 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -14.40 | 165.58 | -16.74 | 115.94 | 0.3117 | -921.0 | -734.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -13.74 | 165.53 | -16.79 | 113.89 | 0.3083 | -796.0 | -617.5 | |
| 3.32 | 40.96 | 1.73 | 21.32 | -13.07 | 165.36 | -16.97 | 111.65 | 0.3072 | -1164.5 | -443.8 | |
| 4.19 | -52.00 | 2.18 | -52.00 | -12.83 | 165.31 | -17.01 | 110.85 | 0.3066 | 591.4 | 999999 | |
| 4.11 | -52.00 | 2.14 | -52.00 | -13.40 | 165.17 | -17.15 | 112.45 | 0.3118 | -1061.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -13.24 | 164.93 | -17.40 | 111.72 | 0.3147 | -519.0 | -539.6 | |
| 1.31 | -52.00 | 0.68 | -52.00 | -12.81 | 164.93 | -17.40 | 110.44 | 0.3125 | 819.5 | 999999 | |
| 0.00 | 6.20 | 0.00 | 3.23 | -10.71 | 164.75 | -17.58 | 103.66 | 0.3067 | 25.0 | 95.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -12.59 | 164.53 | -17.80 | 109.39 | 0.3176 | -730.0 | -525.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.85 | 164.35 | -17.98 | 110.02 | 0.3217 | -541.0 | -518.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.54 | 164.38 | -17.95 | 102.92 | 0.3122 | 600.0 | 429.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -12.31 | 164.26 | -18.07 | 108.31 | 0.3206 | -455.0 | -484.2 | |
| 3.67 | 5.50 | 1.92 | 2.88 | -13.39 | 164.14 | -18.18 | 111.41 | 0.3275 | -885.4 | -659.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.75 | 164.10 | -18.23 | 109.51 | 0.3251 | 750.0 | 610.5 | |
| 0.00 | 2.01 | 0.00 | 1.05 | -10.83 | 164.10 | -18.22 | 103.67 | 0.3175 | -941.0 | -730.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -14.61 | 163.78 | -18.54 | 114.53 | 0.3398 | -788.0 | -575.3 | |
| 1.14 | 7.25 | 0.59 | 3.79 | -11.06 | 163.73 | -18.59 | 104.15 | 0.3241 | -972.8 | -835.9 | |
| 0.00 | 6.46 | 0.00 | 3.39 | -11.29 | 163.43 | -18.90 | 104.65 | 0.3297 | -1053.0 | -694.3 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -10.59 | 163.31 | -19.01 | 102.51 | 0.3294 | 582.0 | 418.0 | |
| 14.76 | 43.93 | 7.78 | 23.17 | -11.73 | 162.59 | -19.74 | 105.45 | 0.3445 | -1026.3 | -184.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.57 | 162.67 | -19.65 | 102.13 | 0.3397 | 604.0 | 426.7 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -15.06 | 160.00 | -22.32 | 112.35 | 0.3982 | -787.0 | -655.4 | |
| 0.00 | 4.54 | 0.00 | 2.45 | -14.78 | 159.84 | -22.49 | 111.55 | 0.3994 | -867.0 | -696.2 | |
| 0.00 | 2.71 | 0.00 | 1.48 | -17.43 | 158.76 | -23.56 | 116.78 | 0.4291 | -781.0 | -598.7 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -14.01 | 158.95 | -23.38 | 109.13 | 0.4092 | -769.0 | -551.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.94 | 158.72 | -23.60 | 113.44 | 0.4215 | -849.0 | -659.1 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.02 | 158.92 | -23.41 | 104.31 | 0.4028 | -913.0 | -756.2 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -16.89 | 158.32 | -24.00 | 115.26 | 0.4322 | -759.0 | -606.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -8.44 | 158.04 | -24.28 | 95.28 | 0.4103 | -706.0 | -552.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.05 | 157.23 | -25.09 | 105.99 | 0.4316 | -809.0 | -652.4 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -13.19 | 156.91 | -25.41 | 106.15 | 0.4369 | -528.0 | -460.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -11.98 | 156.87 | -25.45 | 103.40 | 0.4340 | -694.0 | -611.1 | |
| 0.00 | 3.14 | 0.00 | 1.73 | -12.15 | 156.65 | -25.68 | 103.70 | 0.4378 | -724.0 | -576.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -18.11 | 155.81 | -26.51 | 115.96 | 0.4738 | -669.0 | -572.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.04 | 156.69 | -25.63 | 101.19 | 0.4346 | -689.0 | -505.5 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -21.28 | 154.11 | -28.22 | 120.73 | 0.5146 | -695.0 | -513.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -6.80 | 155.44 | -26.89 | 91.46 | 0.4511 | -744.0 | -598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
