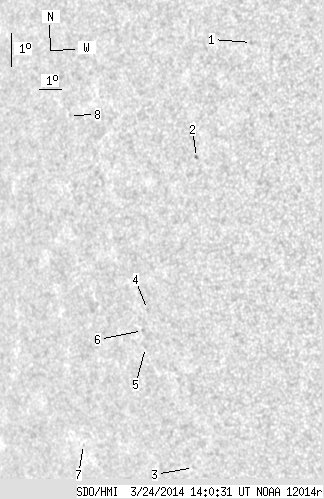

SDO HMI 2014-03-24 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.08 | 0.00 | 5.28 | -12.67 | 133.17 | -48.61 | 100.70 | 0.7477 | 488.6 | 429.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 1.01 | -6.94 | 138.28 | -43.50 | 92.81 | 0.6865 | 584.0 | 506.3 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -10.16 | 135.43 | -46.35 | 97.49 | 0.7207 | 485.0 | 447.8 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -19.38 | 132.58 | -49.20 | 109.69 | 0.7608 | 391.0 | 263.6 | |
| 0.00 | 0.87 | 0.00 | 0.66 | -14.47 | 132.12 | -49.66 | 103.19 | 0.7603 | 436.0 | 395.7 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.59 | 131.66 | -50.12 | 104.62 | 0.7662 | 578.0 | 486.4 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -15.07 | 131.68 | -50.09 | 103.95 | 0.7655 | 637.0 | 515.4 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -18.19 | 127.45 | -54.33 | 107.51 | 0.8115 | 407.0 | 339.8 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -8.38 | 129.85 | -51.92 | 95.25 | 0.7843 | 391.0 | 338.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
