SDO HMI 2014-03-24 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.85 | 0.00 | 4.49 | -12.68 | 131.19 | -50.04 | 100.74 | 0.7639 | 472.5 | 421.9 | |
|
previous
or next observation for the same group /

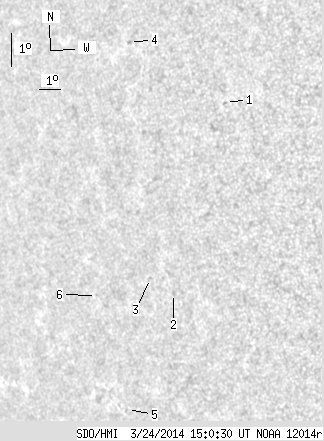

back to the solar disc SDO HMI 2014-03-24 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.62 | -10.12 | 135.47 | -45.76 | 97.44 | 0.7136 | 537.0 | 457.0 | |
| 0.00 | 1.40 | 0.00 | 1.06 | -15.59 | 131.70 | -49.52 | 104.67 | 0.7597 | 548.0 | 404.4 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -15.04 | 130.77 | -50.46 | 103.88 | 0.7694 | 455.0 | 387.2 | |
| 0.00 | 1.75 | 0.00 | 1.33 | -7.96 | 131.51 | -49.72 | 94.59 | 0.7603 | 552.0 | 485.8 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -18.84 | 128.11 | -53.11 | 108.44 | 0.8002 | 281.0 | 285.2 | |
| 0.00 | 0.96 | 0.00 | 0.79 | -15.30 | 127.95 | -53.27 | 104.01 | 0.7990 | 462.0 | 378.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
