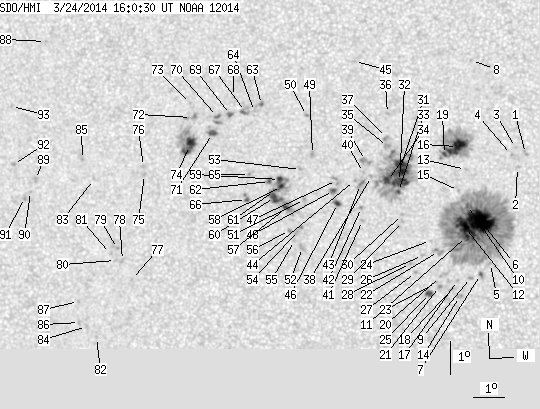

SDO HMI 2014-03-24 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.27 | 820.58 | 83.15 | 418.39 | -13.54 | 169.10 | -11.57 | 122.57 | 0.2319 | 378.5 | 253.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 1.05 | -12.29 | 173.04 | -7.63 | 126.28 | 0.1617 | 858.0 | 768.0 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -12.71 | 172.78 | -7.89 | 127.43 | 0.1695 | 787.0 | 525.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.11 | 172.74 | -7.94 | 124.31 | 0.1642 | 978.0 | 799.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.32 | 172.61 | -8.07 | 124.94 | 0.1680 | 895.0 | 729.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.58 | 171.83 | -8.85 | 135.85 | 0.2136 | 570.0 | 397.1 | |
| 41.30 | 382.01 | 20.88 | 193.35 | -14.28 | 171.57 | -9.10 | 130.34 | 0.2020 | 1501.8 | 454.1 | |
| 0.87 | 2.44 | 0.44 | 1.24 | -15.91 | 171.50 | -9.17 | 135.92 | 0.2214 | 807.9 | 575.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -9.48 | 171.46 | -9.21 | 106.49 | 0.1654 | 796.0 | 656.4 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -16.00 | 171.18 | -9.49 | 135.24 | 0.2262 | 648.0 | 564.9 | |
| 1.40 | -6.00 | 0.71 | -6.00 | -13.82 | 171.19 | -9.49 | 127.39 | 0.2024 | 909.8 | 999999 | |
| 3.32 | -6.00 | 1.68 | -6.00 | -14.76 | 171.11 | -9.56 | 130.77 | 0.2130 | 1102.4 | 999999 | |
| 19.82 | -6.00 | 10.04 | -6.00 | -14.48 | 171.10 | -9.58 | 129.71 | 0.2104 | 1172.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.74 | 171.17 | -9.51 | 122.74 | 0.1924 | -771.0 | -574.5 | |
| 0.00 | 2.97 | 0.00 | 1.51 | -16.56 | 170.80 | -9.87 | 135.94 | 0.2373 | -912.0 | -778.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.37 | 170.93 | -9.75 | 124.80 | 0.2016 | 642.0 | 450.2 | |
| 17.81 | 73.87 | 8.99 | 37.26 | -12.04 | 170.95 | -9.73 | 118.99 | 0.1898 | 1311.8 | 520.2 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -16.08 | 170.77 | -9.91 | 134.32 | 0.2321 | 348.0 | 177.3 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -16.35 | 170.56 | -10.11 | 134.60 | 0.2377 | -947.0 | -695.6 | |
| 1.57 | -16.00 | 0.79 | -16.00 | -12.28 | 170.54 | -10.14 | 119.10 | 0.1978 | 993.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.95 | 170.24 | -10.44 | 132.45 | 0.2372 | -708.0 | -460.6 | |
| 0.00 | 1.83 | 0.00 | 0.94 | -16.25 | 170.19 | -10.49 | 133.28 | 0.2411 | -1071.0 | -805.8 | |
| 0.00 | 5.24 | 0.00 | 2.67 | -15.19 | 170.21 | -10.46 | 129.86 | 0.2293 | 298.0 | 565.9 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -16.12 | 170.10 | -10.57 | 132.66 | 0.2408 | -822.0 | -668.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -14.85 | 169.98 | -10.69 | 128.08 | 0.2289 | 453.0 | 377.6 | |
| 2.36 | 4.10 | 1.20 | 2.10 | -16.45 | 169.86 | -10.81 | 133.07 | 0.2474 | -1088.0 | -861.8 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -15.30 | 169.70 | -10.97 | 128.95 | 0.2371 | 695.0 | 515.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -15.81 | 169.45 | -11.22 | 130.03 | 0.2456 | -946.0 | -714.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -15.53 | 169.31 | -11.36 | 128.79 | 0.2446 | -1003.0 | -785.1 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -14.26 | 169.13 | -11.54 | 123.96 | 0.2349 | 894.0 | 692.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.05 | 169.14 | -11.53 | 123.21 | 0.2329 | 863.0 | 605.1 | |
| 20.69 | 115.34 | 10.51 | 58.64 | -12.69 | 169.11 | -11.56 | 117.90 | 0.2222 | 1262.0 | 529.1 | |
| 10.91 | -31.00 | 5.55 | -31.00 | -13.05 | 169.10 | -11.58 | 119.32 | 0.2252 | 1137.0 | 999999 | |
| 1.05 | -31.00 | 0.53 | -31.00 | -13.35 | 169.05 | -11.62 | 120.40 | 0.2283 | 686.0 | 999999 | |
| 4.45 | -31.00 | 2.27 | -31.00 | -13.01 | 168.72 | -11.95 | 118.44 | 0.2305 | 963.7 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.77 | -11.99 | 168.77 | -11.90 | 114.40 | 0.2225 | 845.0 | 776.5 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -11.01 | 168.82 | -11.86 | 110.23 | 0.2160 | 873.0 | 670.9 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -11.72 | 168.75 | -11.92 | 113.24 | 0.2211 | 845.0 | 717.1 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -12.88 | 168.23 | -12.45 | 117.02 | 0.2369 | 820.0 | 619.9 | |
| 0.00 | 5.50 | 0.00 | 2.80 | -12.40 | 168.07 | -12.61 | 114.86 | 0.2361 | 738.0 | 673.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -12.75 | 167.98 | -12.69 | 116.12 | 0.2397 | 729.0 | 543.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -14.20 | 167.87 | -12.80 | 121.20 | 0.2523 | 815.0 | 650.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -13.80 | 167.86 | -12.81 | 119.80 | 0.2493 | 921.0 | 769.9 | |
| 0.00 | 3.93 | 0.00 | 2.01 | -13.11 | 167.87 | -12.80 | 117.28 | 0.2440 | 947.0 | 702.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.99 | 167.69 | -12.99 | 116.51 | 0.2458 | 620.0 | 338.0 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -9.42 | 167.86 | -12.82 | 102.17 | 0.2249 | 840.0 | 650.1 | |
| 2.27 | 3.84 | 1.16 | 1.97 | -13.66 | 167.11 | -13.56 | 118.01 | 0.2593 | 916.9 | 663.7 | |
| 0.00 | 4.28 | 0.00 | 2.19 | -12.97 | 167.12 | -13.55 | 115.56 | 0.2543 | 685.0 | 731.8 | |
| 1.66 | 3.49 | 0.85 | 1.79 | -13.27 | 167.01 | -13.66 | 116.46 | 0.2580 | 954.7 | 698.2 | |
| 0.00 | 2.79 | 0.00 | 1.43 | -12.17 | 166.41 | -14.26 | 111.66 | 0.2603 | -986.0 | -730.8 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -10.99 | 166.28 | -14.39 | 107.16 | 0.2565 | 928.0 | 685.3 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -13.51 | 166.08 | -14.60 | 115.92 | 0.2737 | -970.0 | -681.2 | |
| 0.00 | 3.84 | 0.00 | 1.99 | -14.95 | 165.92 | -14.76 | 120.35 | 0.2865 | -799.0 | -722.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -12.61 | 166.01 | -14.67 | 112.72 | 0.2691 | 817.0 | 564.6 | |
| 0.00 | 4.28 | 0.00 | 2.21 | -14.44 | 165.82 | -14.85 | 118.59 | 0.2840 | -787.0 | -770.2 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -14.73 | 165.67 | -15.00 | 119.30 | 0.2883 | -715.0 | -560.6 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -14.43 | 165.54 | -15.14 | 118.14 | 0.2881 | -934.0 | -796.6 | |
| 2.01 | 53.52 | 1.04 | 27.64 | -13.73 | 165.49 | -15.19 | 115.85 | 0.2840 | -972.7 | -541.7 | |
| 2.01 | -57.00 | 1.04 | -57.00 | -13.10 | 165.37 | -15.30 | 113.60 | 0.2818 | -1140.4 | 999999 | |
| 2.79 | -57.00 | 1.44 | -57.00 | -12.89 | 165.32 | -15.35 | 112.83 | 0.2813 | 320.5 | 999999 | |
| 6.90 | -57.00 | 3.57 | -57.00 | -13.42 | 165.13 | -15.55 | 114.36 | 0.2875 | -1155.4 | 999999 | |
| 0.52 | -57.00 | 0.27 | -57.00 | -13.21 | 165.14 | -15.53 | 113.69 | 0.2860 | -1035.0 | 999999 | |
| 1.14 | -57.00 | 0.59 | -57.00 | -12.94 | 165.00 | -15.67 | 112.62 | 0.2865 | 815.8 | 999999 | |
| 0.52 | 3.58 | 0.27 | 1.85 | -10.62 | 164.89 | -15.79 | 104.58 | 0.2776 | 890.7 | 555.3 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -10.82 | 164.65 | -16.02 | 105.11 | 0.2820 | -573.0 | -317.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -12.70 | 164.38 | -16.30 | 111.18 | 0.2949 | -990.0 | -832.8 | |
| 1.05 | 4.19 | 0.54 | 2.18 | -13.45 | 164.23 | -16.44 | 113.39 | 0.3013 | -1016.2 | -874.3 | |
| 0.00 | 6.72 | 0.00 | 3.47 | -10.81 | 164.37 | -16.31 | 104.86 | 0.2866 | -688.0 | -491.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.35 | 164.02 | -16.66 | 103.05 | 0.2908 | 728.0 | 615.6 | |
| 1.22 | 2.71 | 0.63 | 1.40 | -10.89 | 163.89 | -16.79 | 104.77 | 0.2946 | -1094.8 | -850.4 | |
| 0.79 | 6.29 | 0.41 | 3.26 | -10.93 | 163.47 | -17.20 | 104.63 | 0.3014 | -1144.9 | -856.5 | |
| 2.62 | 5.85 | 1.36 | 3.04 | -11.43 | 163.28 | -17.39 | 106.11 | 0.3063 | -1079.3 | -741.1 | |
| 0.00 | 4.98 | 0.00 | 2.60 | -10.93 | 162.64 | -18.03 | 104.09 | 0.3148 | 642.0 | 612.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.51 | 162.64 | -18.04 | 102.77 | 0.3136 | 721.0 | 602.7 | |
| 12.22 | 34.66 | 6.39 | 18.12 | -11.77 | 162.52 | -18.15 | 106.59 | 0.3197 | -1123.8 | -421.3 | |
| 0.00 | 1.83 | 0.00 | 0.97 | -12.58 | 161.01 | -19.67 | 107.88 | 0.3467 | -837.0 | -630.1 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -12.34 | 160.99 | -19.68 | 107.19 | 0.3459 | -926.0 | -720.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.72 | 160.29 | -20.39 | 115.61 | 0.3735 | -894.0 | -753.2 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -15.13 | 160.05 | -20.63 | 113.92 | 0.3736 | -849.0 | -645.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.76 | 159.92 | -20.75 | 112.88 | 0.3735 | -1007.0 | -866.2 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -15.12 | 159.82 | -20.86 | 113.69 | 0.3770 | -727.0 | -503.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -14.90 | 159.68 | -21.00 | 113.02 | 0.3779 | -750.0 | -604.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -17.42 | 158.92 | -21.76 | 118.37 | 0.4037 | -762.0 | -602.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.66 | 159.33 | -21.34 | 107.00 | 0.3730 | -661.0 | -519.7 | |
| 0.00 | 1.83 | 0.00 | 0.99 | -17.07 | 158.62 | -22.05 | 117.30 | 0.4056 | -824.0 | -688.0 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -12.04 | 159.02 | -21.65 | 105.21 | 0.3756 | -936.0 | -672.0 | |
| 0.00 | 1.83 | 0.00 | 0.99 | -16.94 | 158.40 | -22.27 | 116.80 | 0.4079 | -851.0 | -717.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.31 | 158.45 | -22.23 | 115.37 | 0.4035 | -641.0 | -604.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -8.46 | 158.08 | -22.60 | 95.50 | 0.3835 | -735.0 | -642.1 | |
| 0.00 | 2.97 | 0.00 | 1.60 | -12.57 | 157.42 | -23.26 | 105.73 | 0.4021 | -871.0 | -674.1 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.92 | 157.22 | -23.46 | 106.48 | 0.4064 | -737.0 | -584.9 | |
| 0.00 | 2.44 | 0.00 | 1.33 | -13.09 | 157.00 | -23.68 | 106.78 | 0.4103 | -767.0 | -648.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -12.09 | 156.73 | -23.94 | 104.24 | 0.4112 | -789.0 | -664.5 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -10.35 | 156.82 | -23.86 | 100.04 | 0.4058 | -709.0 | -493.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
