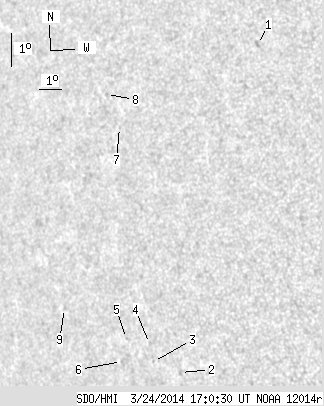

SDO HMI 2014-03-24 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.28 | 0.00 | 8.22 | -12.88 | 132.61 | -47.51 | 101.05 | 0.7353 | 433.0 | 378.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.56 | -7.04 | 138.19 | -41.93 | 92.86 | 0.6664 | 635.0 | 517.2 | |
| 0.00 | 2.27 | 0.00 | 1.65 | -16.52 | 132.88 | -47.24 | 106.19 | 0.7353 | 391.0 | 333.0 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -16.09 | 131.77 | -48.35 | 105.46 | 0.7473 | 390.0 | 336.6 | |
| 0.00 | 1.31 | 0.00 | 0.97 | -15.54 | 131.76 | -48.36 | 104.72 | 0.7468 | 359.0 | 326.1 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -15.29 | 130.75 | -49.38 | 104.29 | 0.7578 | 481.0 | 337.5 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.96 | 130.29 | -49.84 | 105.12 | 0.7634 | 439.0 | 375.3 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -9.01 | 131.98 | -48.14 | 95.93 | 0.7419 | 357.0 | 288.8 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -7.98 | 131.57 | -48.56 | 94.55 | 0.7470 | 582.0 | 470.4 | |
| 0.00 | 1.14 | 0.00 | 0.90 | -14.13 | 128.08 | -52.04 | 102.60 | 0.7857 | 263.0 | 310.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
