SDO HMI 2014-03-24 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.65 | 0.00 | 6.48 | -10.89 | 131.14 | -48.43 | 98.13 | 0.7362 | 452.6 | 352.9 | |
|
previous
or next observation for the same group /

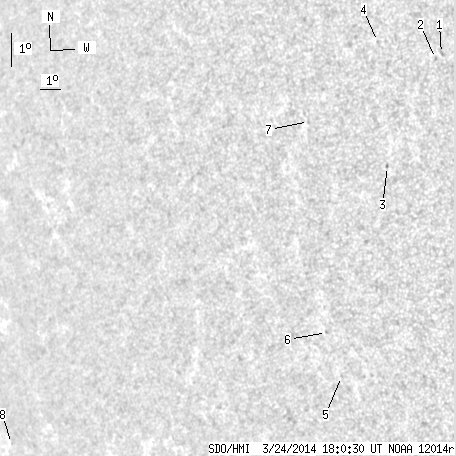

back to the solar disc SDO HMI 2014-03-24 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 1.15 | -7.06 | 138.21 | -41.37 | 92.85 | 0.6590 | 675.0 | 557.7 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -7.19 | 137.95 | -41.62 | 93.06 | 0.6623 | 598.0 | 485.2 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -10.24 | 135.52 | -44.05 | 97.63 | 0.6927 | 474.0 | 451.1 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -6.49 | 135.64 | -43.93 | 92.19 | 0.6922 | 528.0 | 392.1 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -16.32 | 131.99 | -47.58 | 105.86 | 0.7389 | 436.0 | 393.4 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -14.95 | 131.72 | -47.85 | 103.97 | 0.7405 | 585.0 | 457.8 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -8.61 | 132.36 | -47.21 | 95.36 | 0.7311 | 612.0 | 546.1 | |
| 0.00 | 0.96 | 0.00 | 1.17 | -16.47 | 112.69 | -66.88 | 105.00 | 0.9148 | -287.0 | -222.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
