SDO HMI 2014-03-24 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.97 | 324.11 | 51.72 | 207.88 | 10.49 | 143.04 | -35.43 | 63.99 | 0.6355 | -129.4 | -89.8 | |
|
previous
or next observation for the same group /

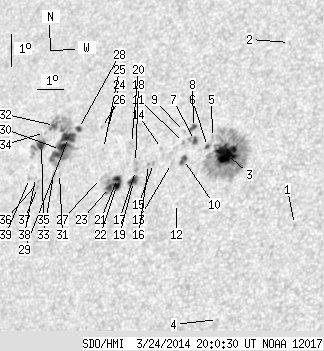

back to the solar disc SDO HMI 2014-03-24 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.62 | 7.91 | 148.44 | -30.03 | 64.20 | 0.5527 | -639.0 | -546.9 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 13.66 | 147.62 | -30.85 | 56.12 | 0.6024 | -558.0 | -512.6 | |
| 27.15 | 152.45 | 16.80 | 94.24 | 10.26 | 145.80 | -32.67 | 62.53 | 0.6009 | -1123.7 | -388.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 5.16 | 145.91 | -32.55 | 70.47 | 0.5708 | -524.0 | -411.7 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 10.83 | 145.22 | -33.25 | 62.10 | 0.6116 | -181.0 | -184.0 | |
| 0.87 | 1.83 | 0.55 | 1.15 | 10.56 | 145.07 | -33.40 | 62.61 | 0.6117 | -662.2 | -545.2 | |
| 1.92 | 5.85 | 1.21 | 3.68 | 10.78 | 144.57 | -33.90 | 62.64 | 0.6192 | -865.3 | -584.6 | |
| 1.92 | 3.49 | 1.21 | 2.21 | 11.19 | 144.48 | -33.99 | 62.10 | 0.6228 | -585.3 | -418.1 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 11.09 | 144.16 | -34.31 | 62.48 | 0.6260 | -494.0 | -373.2 | |
| 2.97 | 5.41 | 1.87 | 3.41 | 10.21 | 144.23 | -34.23 | 63.70 | 0.6198 | -874.6 | -619.2 | |
| 0.00 | 1.40 | 0.00 | 0.88 | 10.74 | 144.17 | -34.30 | 62.97 | 0.6238 | -572.0 | -500.6 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 8.85 | 144.13 | -34.34 | 65.78 | 0.6134 | -607.0 | -485.2 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 10.12 | 143.80 | -34.66 | 64.13 | 0.6246 | -578.0 | -473.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 10.61 | 143.37 | -35.10 | 63.69 | 0.6327 | -646.0 | -533.0 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 10.16 | 143.13 | -35.34 | 64.50 | 0.6331 | -609.0 | -562.4 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 10.15 | 142.94 | -35.52 | 64.64 | 0.6352 | -671.0 | -591.1 | |
| 0.00 | 2.10 | 0.00 | 1.35 | 9.99 | 142.48 | -35.99 | 65.16 | 0.6401 | -51.0 | -66.9 | |
| 0.00 | 1.75 | 0.00 | 1.13 | 10.25 | 142.44 | -36.02 | 64.82 | 0.6418 | -47.0 | -72.4 | |
| 4.80 | 7.07 | 3.08 | 4.54 | 9.65 | 142.44 | -36.02 | 65.67 | 0.6386 | -831.7 | -586.3 | |
| 0.00 | 1.66 | 0.00 | 1.08 | 10.86 | 142.21 | -36.26 | 64.10 | 0.6480 | 402.0 | 350.3 | |
| 2.62 | 23.14 | 1.70 | 15.01 | 9.79 | 141.82 | -36.65 | 65.85 | 0.6469 | -577.5 | -166.2 | |
| 3.67 | -21.00 | 2.37 | -21.00 | 9.58 | 141.81 | -36.66 | 66.16 | 0.6459 | -809.9 | 999999 | |
| 2.71 | -21.00 | 1.76 | -21.00 | 9.53 | 141.55 | -36.92 | 66.38 | 0.6488 | -636.7 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 11.37 | 141.22 | -37.25 | 64.00 | 0.6625 | 806.0 | 707.8 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 10.78 | 141.15 | -37.31 | 64.86 | 0.6601 | -234.0 | -254.3 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 11.45 | 140.98 | -37.49 | 64.04 | 0.6658 | 637.0 | 550.6 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 9.84 | 141.17 | -37.30 | 66.16 | 0.6550 | 532.0 | 422.1 | |
| 2.01 | 81.99 | 1.35 | 55.29 | 11.49 | 140.08 | -38.39 | 64.53 | 0.6764 | 765.6 | 503.1 | |
| 9.60 | -28.00 | 6.46 | -28.00 | 11.23 | 139.73 | -38.74 | 65.07 | 0.6792 | 942.5 | 999999 | |
| 12.66 | -28.00 | 8.53 | -28.00 | 10.88 | 139.47 | -39.00 | 65.70 | 0.6804 | 996.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 10.13 | 139.54 | -38.92 | 66.69 | 0.6758 | 336.0 | 308.1 | |
| 2.27 | -28.00 | 1.55 | -28.00 | 11.66 | 139.11 | -39.36 | 64.86 | 0.6885 | 663.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 10.11 | 139.31 | -39.16 | 66.84 | 0.6785 | 689.0 | 530.0 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 11.47 | 138.74 | -39.73 | 65.32 | 0.6917 | 300.0 | 358.0 | |
| 4.80 | 15.89 | 3.28 | 10.87 | 11.10 | 138.68 | -39.78 | 65.84 | 0.6905 | 790.1 | 332.3 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 9.94 | 138.74 | -39.72 | 67.38 | 0.6843 | 764.0 | 685.8 | |
| 0.00 | 1.14 | 0.00 | 0.77 | 9.75 | 138.73 | -39.74 | 67.64 | 0.6836 | 652.0 | 535.2 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 10.08 | 138.61 | -39.86 | 67.27 | 0.6865 | 652.0 | 559.2 | |
| 0.00 | 2.10 | 0.00 | 1.43 | 10.06 | 138.37 | -40.10 | 67.41 | 0.6892 | 694.0 | 587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
