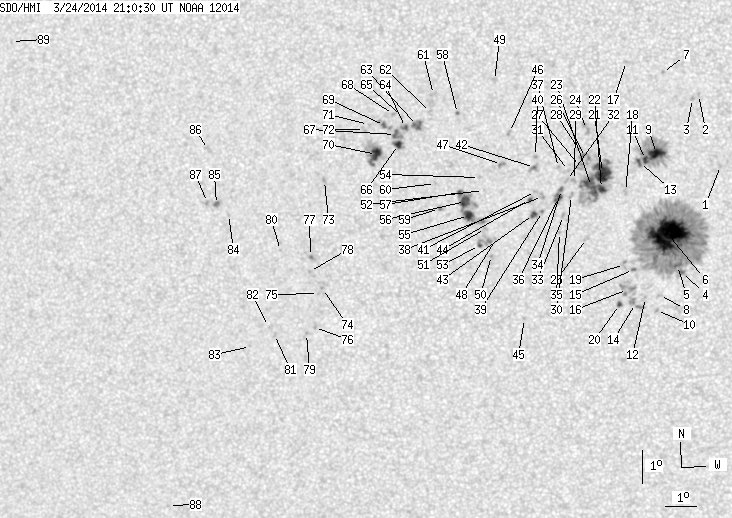

SDO HMI 2014-03-24 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 178.41 | 848.40 | 90.14 | 428.94 | -13.57 | 169.14 | -8.77 | 130.37 | 0.1948 | 483.0 | 254.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.78 | -12.34 | 173.11 | -4.80 | 139.36 | 0.1261 | 739.0 | 639.2 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -10.20 | 172.48 | -5.43 | 122.00 | 0.1104 | 892.0 | 657.4 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -10.32 | 172.30 | -5.62 | 122.05 | 0.1142 | 951.0 | 799.4 | |
| 1.14 | 408.31 | 0.57 | 205.34 | -15.54 | 171.83 | -6.09 | 145.92 | 0.1832 | 817.2 | 438.9 | |
| 2.10 | -4.00 | 1.06 | -4.00 | -15.33 | 171.71 | -6.21 | 144.72 | 0.1813 | 482.2 | 999999 | |
| 68.90 | -4.00 | 34.63 | -4.00 | -14.39 | 171.46 | -6.46 | 140.30 | 0.1713 | 1404.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.53 | 171.40 | -6.52 | 112.66 | 0.1219 | 943.0 | 762.6 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -16.23 | 171.12 | -6.80 | 145.11 | 0.1996 | 784.0 | 556.8 | |
| 11.53 | 68.46 | 5.77 | 34.28 | -11.95 | 171.16 | -6.76 | 127.69 | 0.1462 | 1358.1 | 542.6 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -16.68 | 171.01 | -6.91 | 146.00 | 0.2070 | -979.0 | -736.8 | |
| 2.88 | -9.00 | 1.44 | -9.00 | -12.13 | 170.81 | -7.10 | 127.30 | 0.1526 | 1173.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -16.28 | 170.68 | -7.24 | 143.60 | 0.2047 | 547.0 | 463.2 | |
| 1.66 | -9.00 | 0.83 | -9.00 | -12.21 | 170.63 | -7.29 | 127.06 | 0.1561 | 1028.6 | 999999 | |
| 0.00 | 7.95 | 0.00 | 4.03 | -16.46 | 170.36 | -7.56 | 142.95 | 0.2104 | -540.0 | -827.3 | |
| 0.52 | -4.00 | 0.26 | -4.00 | -15.43 | 170.33 | -7.58 | 139.60 | 0.1971 | 740.0 | 999999 | |
| 0.00 | 9.95 | 0.00 | 5.04 | -16.03 | 170.12 | -7.79 | 140.81 | 0.2072 | -387.0 | -542.0 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -9.18 | 170.31 | -7.61 | 107.41 | 0.1376 | 804.0 | 550.7 | |
| 0.00 | 3.06 | 0.00 | 1.54 | -13.08 | 170.17 | -7.75 | 129.63 | 0.1713 | 848.0 | 661.9 | |
| 0.00 | 3.67 | 0.00 | 1.85 | -15.27 | 170.06 | -7.86 | 138.07 | 0.1983 | 556.0 | 633.5 | |
| 1.66 | 3.23 | 0.84 | 1.64 | -16.48 | 169.85 | -8.06 | 141.26 | 0.2159 | -982.3 | -789.8 | |
| 21.13 | 88.81 | 10.63 | 44.72 | -12.49 | 169.48 | -8.44 | 124.60 | 0.1749 | 1221.9 | 576.2 | |
| 4.28 | -21.00 | 2.15 | -21.00 | -12.97 | 169.43 | -8.49 | 126.69 | 0.1802 | 1242.5 | 999999 | |
| 13.19 | -21.00 | 6.64 | -21.00 | -12.91 | 169.12 | -8.79 | 125.45 | 0.1838 | 1063.3 | 999999 | |
| 0.00 | 4.89 | 0.00 | 2.46 | -11.20 | 169.03 | -8.89 | 116.75 | 0.1705 | 573.0 | 770.4 | |
| 0.00 | 2.97 | 0.00 | 1.50 | -14.47 | 168.90 | -9.01 | 131.30 | 0.2028 | 698.0 | 576.6 | |
| 0.00 | 6.64 | 0.00 | 3.34 | -12.03 | 168.97 | -8.95 | 120.88 | 0.1781 | 427.0 | 782.2 | |
| 0.00 | 5.06 | 0.00 | 2.55 | -12.30 | 168.80 | -9.11 | 121.73 | 0.1828 | 486.0 | 647.9 | |
| 0.00 | 1.92 | 0.00 | 0.97 | -11.76 | 168.76 | -9.16 | 118.99 | 0.1789 | 816.0 | 606.6 | |
| 0.00 | 2.53 | 0.00 | 1.28 | -12.72 | 168.60 | -9.31 | 123.11 | 0.1894 | 997.0 | 733.4 | |
| 0.00 | 2.71 | 0.00 | 1.37 | -13.17 | 168.49 | -9.43 | 124.79 | 0.1951 | 580.0 | 500.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -12.41 | 168.43 | -9.49 | 121.27 | 0.1892 | 446.0 | 338.0 | |
| 0.00 | 2.01 | 0.00 | 1.01 | -12.71 | 168.35 | -9.56 | 122.43 | 0.1929 | 825.0 | 714.3 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -13.76 | 168.22 | -9.70 | 126.53 | 0.2046 | 693.0 | 502.5 | |
| 0.96 | 9.43 | 0.49 | 4.77 | -12.98 | 168.19 | -9.73 | 123.18 | 0.1977 | 952.0 | 651.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.27 | 168.07 | -9.85 | 128.13 | 0.2117 | 803.0 | 598.2 | |
| 3.67 | -34.00 | 1.85 | -34.00 | -13.22 | 168.08 | -9.83 | 123.93 | 0.2013 | 878.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -12.32 | 168.12 | -9.80 | 120.06 | 0.1929 | 730.0 | 564.5 | |
| 0.00 | 3.23 | 0.00 | 1.64 | -13.18 | 167.59 | -10.33 | 122.52 | 0.2080 | 914.0 | 697.0 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -13.63 | 167.57 | -10.35 | 124.31 | 0.2123 | 719.0 | 543.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -11.97 | 167.42 | -10.50 | 116.91 | 0.2008 | 856.0 | 759.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.02 | 167.37 | -10.54 | 121.38 | 0.2097 | 717.0 | 616.3 | |
| 0.61 | 5.41 | 0.31 | 2.74 | -12.30 | 167.37 | -10.54 | 118.29 | 0.2039 | 911.4 | 695.7 | |
| 2.44 | 3.84 | 1.24 | 1.95 | -13.71 | 167.28 | -10.64 | 123.95 | 0.2171 | 1024.1 | 790.8 | |
| 1.22 | 2.44 | 0.62 | 1.24 | -13.26 | 167.18 | -10.74 | 121.89 | 0.2146 | 845.6 | 637.5 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -16.84 | 166.83 | -11.09 | 133.54 | 0.2551 | 813.0 | 640.8 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -11.23 | 166.64 | -11.27 | 112.11 | 0.2079 | 766.0 | 668.1 | |
| 0.00 | 3.06 | 0.00 | 1.55 | -12.19 | 166.35 | -11.56 | 115.77 | 0.2186 | -1054.0 | -876.2 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -14.43 | 166.05 | -11.87 | 123.88 | 0.2409 | -764.0 | -586.1 | |
| 0.00 | 3.14 | 0.00 | 1.59 | -9.67 | 166.24 | -11.68 | 104.28 | 0.2068 | 203.0 | 156.7 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -14.91 | 165.90 | -12.02 | 125.22 | 0.2474 | -823.0 | -662.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -14.10 | 165.75 | -12.16 | 122.06 | 0.2422 | -965.0 | -681.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -12.95 | 165.75 | -12.16 | 117.77 | 0.2331 | 431.0 | 289.4 | |
| 1.05 | 10.39 | 0.54 | 5.31 | -14.60 | 165.54 | -12.38 | 123.40 | 0.2497 | -835.2 | -816.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -12.56 | 165.65 | -12.27 | 116.04 | 0.2319 | 636.0 | 423.6 | |
| 6.29 | 42.35 | 3.21 | 21.63 | -13.69 | 165.24 | -12.68 | 119.61 | 0.2463 | -1210.4 | -678.5 | |
| 7.42 | -55.00 | 3.79 | -55.00 | -13.27 | 165.17 | -12.75 | 117.93 | 0.2442 | -1233.7 | 999999 | |
| 1.75 | -55.00 | 0.89 | -55.00 | -12.99 | 165.00 | -12.92 | 116.62 | 0.2448 | 171.4 | 999999 | |
| 0.44 | 1.48 | 0.22 | 0.76 | -10.62 | 165.05 | -12.87 | 107.26 | 0.2302 | 925.4 | 784.6 | |
| 0.35 | 2.62 | 0.18 | 1.34 | -13.45 | 164.34 | -13.58 | 117.23 | 0.2579 | -1133.0 | -841.5 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -12.70 | 164.26 | -13.66 | 114.39 | 0.2541 | -932.0 | -661.2 | |
| 0.00 | 2.88 | 0.00 | 1.47 | -10.03 | 164.33 | -13.59 | 104.09 | 0.2396 | 826.0 | 724.4 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -10.57 | 164.21 | -13.71 | 106.15 | 0.2436 | 488.0 | 566.2 | |
| 3.84 | 8.38 | 1.97 | 4.29 | -10.95 | 163.78 | -14.13 | 107.20 | 0.2521 | -1119.9 | -887.8 | |
| 1.57 | 22.97 | 0.81 | 11.79 | -10.99 | 163.40 | -14.51 | 107.01 | 0.2584 | -1103.0 | -798.6 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -10.66 | 163.29 | -14.62 | 105.65 | 0.2588 | 591.0 | 392.5 | |
| 4.10 | -64.00 | 2.11 | -64.00 | -11.50 | 163.16 | -14.76 | 108.62 | 0.2646 | -1054.3 | 999999 | |
| 2.27 | -64.00 | 1.17 | -64.00 | -11.19 | 163.08 | -14.84 | 107.44 | 0.2645 | -1140.2 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -10.59 | 163.05 | -14.87 | 105.19 | 0.2625 | 791.0 | 621.6 | |
| 1.31 | 7.16 | 0.67 | 3.68 | -10.91 | 162.75 | -15.17 | 106.11 | 0.2686 | 757.7 | 303.7 | |
| 8.47 | 28.73 | 4.37 | 14.81 | -11.77 | 162.45 | -15.47 | 108.88 | 0.2772 | -1188.2 | -515.6 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -10.87 | 162.24 | -15.67 | 105.52 | 0.2766 | 771.0 | 585.1 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -11.01 | 162.11 | -15.81 | 105.92 | 0.2793 | 697.0 | 593.4 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -12.50 | 160.74 | -17.17 | 109.63 | 0.3074 | -952.0 | -737.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -15.74 | 160.42 | -17.50 | 118.81 | 0.3317 | -878.0 | -775.9 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -15.89 | 160.27 | -17.64 | 119.03 | 0.3348 | -815.0 | -645.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -16.91 | 160.04 | -17.87 | 121.44 | 0.3456 | -880.0 | -760.6 | |
| 0.35 | 2.27 | 0.18 | 1.19 | -14.76 | 160.11 | -17.80 | 115.73 | 0.3296 | -1032.5 | -765.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -15.21 | 160.04 | -17.87 | 116.91 | 0.3336 | -1040.0 | -846.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -17.08 | 159.76 | -18.15 | 121.52 | 0.3508 | -1000.0 | -814.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -14.55 | 159.16 | -18.76 | 114.11 | 0.3425 | -683.0 | -516.2 | |
| 0.00 | 2.01 | 0.00 | 1.07 | -17.07 | 158.71 | -19.21 | 120.21 | 0.3655 | -654.0 | -613.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -16.82 | 158.54 | -19.38 | 119.40 | 0.3661 | -604.0 | -543.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -17.41 | 157.87 | -20.04 | 120.08 | 0.3795 | -722.0 | -662.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.40 | 157.56 | -20.36 | 109.60 | 0.3608 | -740.0 | -635.2 | |
| 1.31 | 2.97 | 0.70 | 1.58 | -13.08 | 157.19 | -20.72 | 108.50 | 0.3650 | -951.3 | -822.4 | |
| 0.00 | 3.84 | 0.00 | 2.04 | -11.42 | 157.07 | -20.84 | 103.95 | 0.3609 | -780.0 | -622.3 | |
| 0.00 | 1.92 | 0.00 | 1.02 | -13.01 | 156.91 | -21.01 | 108.11 | 0.3691 | -751.0 | -678.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -22.15 | 154.38 | -23.54 | 126.35 | 0.4612 | -588.0 | -534.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -7.87 | 150.80 | -27.12 | 93.82 | 0.4544 | 547.0 | 453.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
