SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167.78 | 816.18 | 84.65 | 411.92 | -13.59 | 169.22 | -8.15 | 132.47 | 0.1869 | 429.4 | 271.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

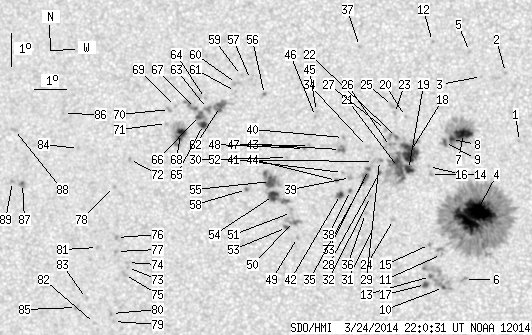

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.65 | -12.19 | 172.90 | -4.46 | 140.65 | 0.1204 | 774.0 | 655.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -10.12 | 172.51 | -4.85 | 124.26 | 0.1012 | 781.0 | 634.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -10.23 | 171.78 | -5.59 | 121.54 | 0.1129 | 814.0 | 640.1 | |
| 65.59 | 384.43 | 32.94 | 193.11 | -14.40 | 171.47 | -5.90 | 142.83 | 0.1655 | 1380.9 | 467.3 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -9.48 | 171.43 | -5.94 | 114.15 | 0.1123 | 777.0 | 625.9 | |
| 0.00 | 2.71 | 0.00 | 1.37 | -16.33 | 171.10 | -6.27 | 147.52 | 0.1960 | 672.0 | 485.1 | |
| 12.49 | 62.97 | 6.25 | 31.50 | -11.93 | 171.19 | -6.17 | 130.07 | 0.1381 | 1305.8 | 562.7 | |
| 2.18 | -7.00 | 1.09 | -7.00 | -12.11 | 170.82 | -6.55 | 129.42 | 0.1449 | 1201.0 | 999999 | |
| 1.57 | -7.00 | 0.79 | -7.00 | -12.19 | 170.60 | -6.76 | 128.98 | 0.1488 | 1026.0 | 999999 | |
| 0.79 | 30.57 | 0.40 | 15.46 | -16.56 | 170.43 | -6.93 | 145.56 | 0.2056 | -951.3 | -491.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -15.56 | 170.40 | -6.96 | 142.39 | 0.1922 | 742.0 | 566.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.16 | 170.31 | -7.06 | 108.46 | 0.1285 | 826.0 | 642.0 | |
| 0.61 | -10.00 | 0.31 | -10.00 | -16.22 | 170.03 | -7.33 | 143.08 | 0.2049 | -1039.7 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -13.15 | 170.14 | -7.22 | 131.90 | 0.1652 | 891.0 | 674.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -15.26 | 170.04 | -7.32 | 139.95 | 0.1920 | 918.0 | 774.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.91 | 170.09 | -7.28 | 130.56 | 0.1633 | 810.0 | 601.2 | |
| 1.92 | 3.58 | 0.97 | 1.81 | -16.46 | 169.87 | -7.50 | 143.19 | 0.2098 | -1025.1 | -722.9 | |
| 19.56 | 93.62 | 9.83 | 47.08 | -12.48 | 169.51 | -7.85 | 126.41 | 0.1665 | 1236.3 | 564.6 | |
| 5.07 | -18.00 | 2.55 | -18.00 | -12.99 | 169.47 | -7.90 | 128.69 | 0.1723 | 1140.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -11.40 | 169.42 | -7.94 | 120.44 | 0.1578 | 863.0 | 677.6 | |
| 12.66 | -18.00 | 6.37 | -18.00 | -12.92 | 169.16 | -8.21 | 127.35 | 0.1758 | 1044.9 | 999999 | |
| 0.61 | 5.41 | 0.31 | 2.72 | -12.02 | 169.13 | -8.24 | 122.86 | 0.1676 | 1011.0 | 774.8 | |
| 0.00 | 1.92 | 0.00 | 0.96 | -11.30 | 169.09 | -8.28 | 118.93 | 0.1620 | 894.0 | 734.3 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -14.48 | 168.94 | -8.42 | 133.24 | 0.1955 | 776.0 | 506.9 | |
| 0.00 | 3.41 | 0.00 | 1.71 | -11.06 | 169.03 | -8.33 | 117.44 | 0.1610 | 925.0 | 697.5 | |
| 0.00 | 6.99 | 0.00 | 3.51 | -12.29 | 168.93 | -8.43 | 123.61 | 0.1728 | 780.0 | 685.2 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -11.77 | 168.79 | -8.57 | 120.62 | 0.1703 | 762.0 | 517.9 | |
| 0.52 | 2.36 | 0.26 | 1.19 | -13.06 | 168.56 | -8.80 | 126.12 | 0.1853 | 867.3 | 585.6 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -12.70 | 168.58 | -8.79 | 124.52 | 0.1817 | 923.0 | 810.5 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -12.73 | 168.39 | -8.97 | 124.10 | 0.1846 | 967.0 | 790.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.71 | 168.31 | -9.05 | 132.08 | 0.2060 | 799.0 | 620.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -13.78 | 168.26 | -9.11 | 128.27 | 0.1967 | 734.0 | 546.4 | |
| 0.79 | 12.14 | 0.40 | 6.13 | -12.96 | 168.23 | -9.14 | 124.71 | 0.1891 | 973.9 | 579.3 | |
| 0.00 | 1.92 | 0.00 | 0.97 | -12.27 | 168.22 | -9.14 | 121.52 | 0.1830 | 731.0 | 529.8 | |
| 2.62 | -33.00 | 1.32 | -33.00 | -13.20 | 168.12 | -9.24 | 125.47 | 0.1928 | 885.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.28 | 168.08 | -9.28 | 129.77 | 0.2044 | 838.0 | 639.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -9.27 | 168.07 | -9.29 | 105.12 | 0.1658 | 906.0 | 780.8 | |
| 0.44 | 2.01 | 0.22 | 1.02 | -13.58 | 167.64 | -9.72 | 125.74 | 0.2032 | 699.4 | 397.8 | |
| 0.00 | 2.62 | 0.00 | 1.32 | -13.19 | 167.66 | -9.71 | 124.15 | 0.1993 | 928.0 | 740.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.99 | 167.49 | -9.88 | 118.34 | 0.1915 | 856.0 | 722.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -13.04 | 167.41 | -9.95 | 122.87 | 0.2013 | 656.0 | 477.5 | |
| 2.62 | 4.54 | 1.33 | 2.30 | -13.70 | 167.32 | -10.04 | 125.37 | 0.2087 | 1024.6 | 760.6 | |
| 0.00 | 5.76 | 0.00 | 2.91 | -12.35 | 167.38 | -9.98 | 119.74 | 0.1959 | 712.0 | 609.4 | |
| 0.61 | 1.66 | 0.31 | 0.84 | -13.27 | 167.22 | -10.15 | 123.37 | 0.2062 | 781.3 | 611.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.19 | 166.68 | -10.68 | 112.93 | 0.1983 | 735.0 | 605.1 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -11.34 | 166.64 | -10.72 | 113.56 | 0.1999 | 866.0 | 586.4 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -12.20 | 166.42 | -10.94 | 117.03 | 0.2092 | -1010.0 | -783.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -12.29 | 166.26 | -11.10 | 117.09 | 0.2123 | -831.0 | -685.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -14.96 | 165.91 | -11.45 | 126.63 | 0.2401 | -874.0 | -778.5 | |
| 0.00 | 7.77 | 0.00 | 3.96 | -14.48 | 165.81 | -11.55 | 124.70 | 0.2369 | -1122.0 | -850.3 | |
| 0.00 | 3.06 | 0.00 | 1.56 | -14.20 | 165.76 | -11.60 | 123.61 | 0.2351 | -701.0 | -702.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.55 | 165.72 | -11.64 | 117.12 | 0.2223 | 629.0 | 526.3 | |
| 0.96 | 2.10 | 0.49 | 1.07 | -14.65 | 165.58 | -11.78 | 124.82 | 0.2417 | -871.8 | -671.8 | |
| 6.90 | 36.50 | 3.52 | 18.61 | -13.68 | 165.22 | -12.14 | 120.57 | 0.2384 | -1136.9 | -677.8 | |
| 7.34 | -54.00 | 3.74 | -54.00 | -13.25 | 165.15 | -12.21 | 118.85 | 0.2361 | -1214.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -10.64 | 165.09 | -12.27 | 108.03 | 0.2207 | 956.0 | 736.7 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -10.18 | 164.67 | -12.69 | 105.56 | 0.2255 | 787.0 | 582.4 | |
| 0.44 | 1.57 | 0.22 | 0.80 | -13.47 | 164.39 | -12.98 | 118.29 | 0.2491 | -1025.4 | -850.0 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -10.05 | 164.40 | -12.97 | 104.74 | 0.2295 | 876.0 | 734.3 | |
| 0.00 | 4.19 | 0.00 | 2.13 | -10.29 | 164.23 | -13.13 | 105.57 | 0.2331 | 774.0 | 700.7 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -10.53 | 164.19 | -13.17 | 106.52 | 0.2348 | 792.0 | 616.4 | |
| 5.07 | 12.40 | 2.59 | 6.33 | -10.96 | 163.70 | -13.66 | 107.76 | 0.2446 | -1090.5 | -710.2 | |
| 0.00 | 3.41 | 0.00 | 1.74 | -11.01 | 163.29 | -14.07 | 107.51 | 0.2514 | -1193.0 | -992.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -10.71 | 163.24 | -14.12 | 106.30 | 0.2509 | 509.0 | 393.4 | |
| 3.49 | 13.89 | 1.79 | 7.11 | -11.49 | 163.14 | -14.22 | 109.15 | 0.2560 | -1090.5 | -809.7 | |
| 3.41 | -65.00 | 1.74 | -65.00 | -11.21 | 163.03 | -14.33 | 108.01 | 0.2565 | -1146.0 | 999999 | |
| 0.70 | 6.90 | 0.36 | 3.54 | -11.00 | 162.91 | -14.45 | 107.09 | 0.2574 | -871.4 | 346.3 | |
| 8.12 | 24.37 | 4.18 | 12.53 | -11.73 | 162.40 | -14.96 | 109.26 | 0.2690 | -1168.1 | -606.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -10.92 | 162.29 | -15.07 | 106.21 | 0.2671 | 746.0 | 572.9 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -11.00 | 162.10 | -15.27 | 106.34 | 0.2706 | 761.0 | 583.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -11.42 | 161.98 | -15.39 | 107.72 | 0.2743 | 251.0 | 120.4 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -12.46 | 160.74 | -16.63 | 110.03 | 0.2987 | -933.0 | -777.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -15.70 | 160.42 | -16.94 | 119.42 | 0.3235 | -892.0 | -700.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -15.55 | 160.43 | -16.93 | 119.01 | 0.3222 | -870.0 | -757.5 | |
| 0.00 | 2.97 | 0.00 | 1.56 | -15.91 | 160.31 | -17.06 | 119.84 | 0.3266 | -767.0 | -577.4 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -14.79 | 160.14 | -17.22 | 116.47 | 0.3212 | -1070.0 | -884.7 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -15.21 | 160.11 | -17.26 | 117.63 | 0.3245 | -941.0 | -856.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -13.25 | 160.20 | -17.16 | 111.98 | 0.3111 | -868.0 | -611.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -17.32 | 159.81 | -17.55 | 122.91 | 0.3444 | -792.0 | -679.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -17.08 | 159.77 | -17.59 | 122.23 | 0.3430 | -872.0 | -761.9 | |
| 0.00 | 1.57 | 0.00 | 0.83 | -15.07 | 159.50 | -17.86 | 116.51 | 0.3324 | -830.0 | -636.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -17.36 | 159.18 | -18.18 | 122.18 | 0.3534 | -676.0 | -510.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -16.59 | 159.00 | -18.36 | 120.00 | 0.3502 | -145.0 | -171.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -12.07 | 159.13 | -18.24 | 107.43 | 0.3222 | -945.0 | -733.3 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -16.85 | 158.64 | -18.72 | 120.23 | 0.3571 | -878.0 | -758.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -11.00 | 158.72 | -18.64 | 103.93 | 0.3247 | -845.0 | -688.8 | |
| 0.70 | 3.14 | 0.37 | 1.67 | -13.05 | 157.24 | -20.13 | 108.83 | 0.3557 | -991.4 | -828.3 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -11.42 | 157.11 | -20.26 | 104.24 | 0.3517 | -863.0 | -666.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.97 | 156.91 | -20.45 | 108.40 | 0.3604 | -825.0 | -725.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
