SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.68 | 0.00 | 5.18 | -10.47 | 134.52 | -42.85 | 97.78 | 0.6779 | 645.0 | 541.9 | |
|
previous
or next observation for the same group /

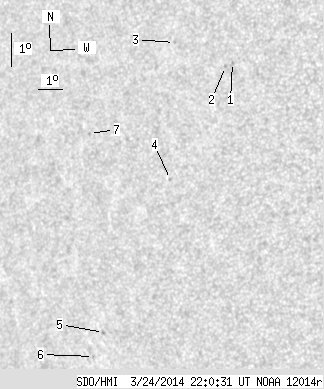

back to the solar disc SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.66 | -7.04 | 138.45 | -38.92 | 92.66 | 0.6264 | 725.0 | 503.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -7.14 | 138.16 | -39.20 | 92.83 | 0.6302 | 718.0 | 643.3 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -6.27 | 136.24 | -41.13 | 91.62 | 0.6564 | 625.0 | 479.3 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -10.33 | 135.54 | -41.82 | 97.81 | 0.6645 | 646.0 | 579.3 | |
| 0.00 | 1.57 | 0.00 | 1.11 | -14.65 | 131.77 | -45.60 | 103.81 | 0.7141 | 712.0 | 603.2 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -15.33 | 131.13 | -46.23 | 104.67 | 0.7223 | 523.0 | 467.3 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -8.69 | 132.42 | -44.95 | 95.39 | 0.7038 | 566.0 | 471.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
