SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.49 | 43.14 | 9.48 | 28.46 | 2.94 | 137.17 | -40.20 | 77.48 | 0.6623 | -5.8 | 100.5 | |
|
previous
or next observation for the same group /

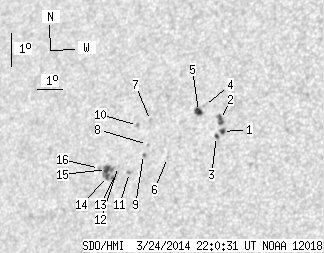

back to the solar disc SDO HMI 2014-03-24 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 3.41 | 1.11 | 2.17 | 3.16 | 139.65 | -37.71 | 76.24 | 0.6311 | -831.8 | -567.4 | |
| 2.88 | 5.33 | 1.84 | 3.40 | 3.53 | 139.56 | -37.80 | 75.71 | 0.6336 | -905.0 | -677.4 | |
| 1.05 | 2.79 | 0.67 | 1.78 | 3.02 | 139.43 | -37.93 | 76.54 | 0.6335 | -697.2 | -504.0 | |
| 0.00 | 1.83 | 0.00 | 1.18 | 4.00 | 138.93 | -38.44 | 75.26 | 0.6435 | -584.0 | -456.2 | |
| 3.49 | 5.33 | 2.26 | 3.45 | 3.84 | 138.71 | -38.66 | 75.60 | 0.6458 | -724.3 | -475.7 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 2.53 | 137.56 | -39.80 | 77.99 | 0.6561 | -576.0 | -485.2 | |
| 0.00 | 1.92 | 0.00 | 1.28 | 3.71 | 136.84 | -40.52 | 76.53 | 0.6691 | -357.0 | -271.5 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 2.99 | 136.76 | -40.61 | 77.61 | 0.6678 | 658.0 | 512.4 | |
| 0.35 | 1.31 | 0.23 | 0.87 | 2.70 | 136.61 | -40.75 | 78.09 | 0.6688 | 605.2 | 500.7 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 3.60 | 136.33 | -41.03 | 76.88 | 0.6751 | -581.0 | -519.6 | |
| 0.00 | 2.27 | 0.00 | 1.52 | 2.20 | 136.07 | -41.29 | 79.00 | 0.6741 | 873.0 | 712.5 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 2.42 | 135.62 | -41.74 | 78.83 | 0.6803 | 721.0 | 577.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 2.24 | 135.55 | -41.81 | 79.11 | 0.6808 | 768.0 | 523.4 | |
| 1.83 | 13.01 | 1.24 | 8.82 | 2.15 | 135.19 | -42.17 | 79.35 | 0.6850 | 685.9 | 653.9 | |
| 3.14 | -14.00 | 2.13 | -14.00 | 2.36 | 135.14 | -42.22 | 79.06 | 0.6862 | 734.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.95 | 2.42 | 134.85 | -42.51 | 79.07 | 0.6899 | 499.0 | 347.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
