SDO HMI 2014-03-24 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.70 | 829.07 | 83.48 | 418.06 | -13.61 | 169.21 | -7.60 | 134.82 | 0.1807 | 371.9 | 247.7 | |
|
previous
or next observation for the same group /

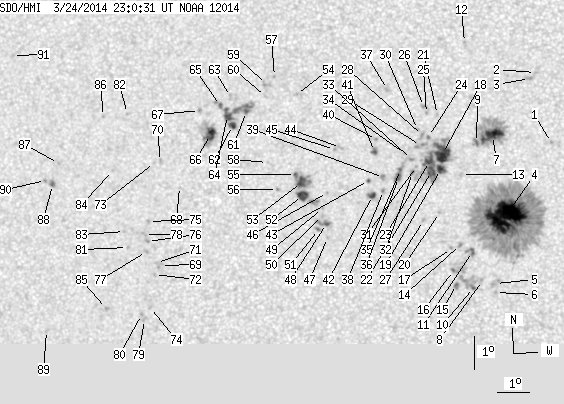

back to the solar disc SDO HMI 2014-03-24 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.20 | 172.93 | -3.88 | 144.52 | 0.1144 | 877.0 | 766.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -10.10 | 172.48 | -4.33 | 127.09 | 0.0937 | 840.0 | 597.9 | |
| 0.00 | 3.76 | 0.00 | 1.87 | -10.28 | 172.29 | -4.52 | 127.44 | 0.0981 | 985.0 | 664.7 | |
| 60.97 | 400.13 | 30.59 | 200.81 | -14.38 | 171.47 | -5.34 | 145.43 | 0.1596 | 1379.8 | 459.3 | |
| 0.00 | 5.24 | 0.00 | 2.64 | -16.43 | 171.10 | -5.71 | 150.15 | 0.1926 | 150.0 | 175.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -16.70 | 171.10 | -5.72 | 150.83 | 0.1967 | -818.0 | -616.1 | |
| 16.16 | 73.28 | 8.07 | 36.62 | -11.97 | 171.13 | -5.68 | 132.60 | 0.1322 | 1271.4 | 509.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -16.34 | 170.70 | -6.11 | 148.18 | 0.1947 | 619.0 | 479.3 | |
| 0.79 | -7.00 | 0.39 | -7.00 | -12.18 | 170.63 | -6.18 | 131.39 | 0.1409 | 1140.9 | 999999 | |
| 0.52 | 16.16 | 0.26 | 8.17 | -16.54 | 170.41 | -6.40 | 147.59 | 0.2003 | -960.3 | -604.5 | |
| 1.48 | 5.33 | 0.75 | 2.69 | -15.45 | 170.42 | -6.40 | 144.32 | 0.1850 | 958.7 | 584.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -9.18 | 170.33 | -6.48 | 110.01 | 0.1191 | 900.0 | 659.7 | |
| 0.00 | 1.83 | 0.00 | 0.92 | -13.13 | 170.15 | -6.67 | 134.06 | 0.1581 | 843.0 | 653.0 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -15.24 | 170.05 | -6.76 | 142.09 | 0.1858 | 820.0 | 611.1 | |
| 0.70 | 3.14 | 0.35 | 1.59 | -16.45 | 169.88 | -6.93 | 145.24 | 0.2039 | -1051.5 | -831.5 | |
| 0.52 | 9.17 | 0.26 | 4.63 | -16.02 | 169.80 | -7.01 | 143.66 | 0.1989 | -1060.7 | -401.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.35 | 169.76 | -7.05 | 141.35 | 0.1903 | 665.0 | 556.2 | |
| 18.52 | 83.15 | 9.29 | 41.75 | -12.49 | 169.58 | -7.23 | 128.68 | 0.1582 | 1225.8 | 600.8 | |
| 5.07 | -18.00 | 2.54 | -18.00 | -12.97 | 169.50 | -7.31 | 130.73 | 0.1644 | 1094.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -14.26 | 169.43 | -7.38 | 136.05 | 0.1803 | 857.0 | 668.1 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -11.32 | 169.46 | -7.36 | 121.88 | 0.1485 | 802.0 | 742.6 | |
| 6.20 | -18.00 | 3.12 | -18.00 | -13.03 | 169.22 | -7.59 | 129.95 | 0.1687 | 975.4 | 999999 | |
| 7.42 | -18.00 | 3.73 | -18.00 | -12.72 | 169.17 | -7.64 | 128.34 | 0.1662 | 1066.9 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -11.97 | 169.16 | -7.65 | 124.51 | 0.1588 | 919.0 | 859.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.28 | 169.12 | -7.69 | 120.58 | 0.1532 | 970.0 | 783.4 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -11.07 | 169.03 | -7.78 | 119.09 | 0.1527 | 968.0 | 740.9 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -14.50 | 168.92 | -7.89 | 135.10 | 0.1891 | 702.0 | 515.3 | |
| 0.00 | 2.62 | 0.00 | 1.32 | -11.94 | 168.98 | -7.84 | 123.73 | 0.1611 | 827.0 | 728.1 | |
| 0.00 | 4.45 | 0.00 | 2.24 | -12.24 | 168.91 | -7.91 | 125.04 | 0.1649 | 719.0 | 709.1 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -11.76 | 168.83 | -7.98 | 122.28 | 0.1616 | 670.0 | 493.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.87 | 168.76 | -8.05 | 127.62 | 0.1731 | 842.0 | 664.2 | |
| 0.44 | 1.57 | 0.22 | 0.79 | -13.05 | 168.63 | -8.18 | 128.01 | 0.1767 | 806.8 | 687.9 | |
| 0.00 | 1.83 | 0.00 | 0.92 | -12.65 | 168.61 | -8.20 | 126.12 | 0.1730 | 980.0 | 882.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.47 | 168.40 | -8.41 | 124.58 | 0.1742 | 872.0 | 688.1 | |
| 0.79 | 11.27 | 0.40 | 5.67 | -12.95 | 168.26 | -8.55 | 126.39 | 0.1808 | 1003.0 | 722.3 | |
| 3.06 | -35.00 | 1.54 | -35.00 | -13.19 | 168.19 | -8.62 | 127.24 | 0.1841 | 886.2 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -10.54 | 167.94 | -8.87 | 113.22 | 0.1657 | 780.0 | 704.1 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -13.57 | 167.71 | -9.10 | 127.43 | 0.1945 | 719.0 | 614.9 | |
| 0.00 | 3.06 | 0.00 | 1.54 | -13.18 | 167.73 | -9.08 | 125.81 | 0.1904 | 862.0 | 740.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.03 | 167.55 | -9.26 | 120.06 | 0.1827 | 824.0 | 625.6 | |
| 1.40 | 3.84 | 0.70 | 1.94 | -12.39 | 167.48 | -9.33 | 121.57 | 0.1868 | 987.2 | 783.9 | |
| 3.06 | 4.98 | 1.55 | 2.52 | -13.71 | 167.36 | -9.45 | 127.02 | 0.2007 | 901.9 | 614.4 | |
| 0.61 | 1.40 | 0.31 | 0.71 | -13.26 | 167.26 | -9.55 | 124.84 | 0.1978 | 747.1 | 651.0 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -12.25 | 166.43 | -10.38 | 118.40 | 0.2012 | -881.0 | -764.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.31 | 166.24 | -10.57 | 118.24 | 0.2044 | -869.0 | -744.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -13.59 | 165.96 | -10.85 | 122.98 | 0.2191 | -851.0 | -700.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -14.95 | 165.89 | -10.92 | 127.84 | 0.2328 | -822.0 | -651.0 | |
| 1.14 | 7.42 | 0.58 | 3.78 | -14.52 | 165.89 | -10.93 | 126.31 | 0.2288 | -1052.5 | -879.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -14.07 | 165.78 | -11.03 | 124.40 | 0.2259 | -841.0 | -593.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -14.28 | 165.77 | -11.04 | 125.15 | 0.2280 | -938.0 | -776.8 | |
| 0.61 | 1.75 | 0.31 | 0.89 | -14.70 | 165.62 | -11.19 | 126.33 | 0.2340 | -890.7 | -719.2 | |
| 7.25 | 36.34 | 3.69 | 18.48 | -13.66 | 165.18 | -11.64 | 121.53 | 0.2310 | -1095.5 | -691.2 | |
| 6.55 | -52.00 | 3.33 | -52.00 | -13.27 | 165.16 | -11.65 | 120.00 | 0.2280 | -1220.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -10.63 | 165.13 | -11.68 | 108.75 | 0.2112 | 1093.0 | 730.7 | |
| 0.79 | -52.00 | 0.40 | -52.00 | -13.03 | 164.99 | -11.82 | 118.70 | 0.2286 | 294.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -13.46 | 164.40 | -12.41 | 119.26 | 0.2407 | -969.0 | -877.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.07 | 164.47 | -12.35 | 105.45 | 0.2194 | 932.0 | 759.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.64 | 164.13 | -12.68 | 115.68 | 0.2388 | -810.0 | -574.1 | |
| 0.00 | 3.93 | 0.00 | 2.00 | -10.31 | 164.21 | -12.60 | 106.19 | 0.2246 | 921.0 | 695.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -10.66 | 164.16 | -12.65 | 107.68 | 0.2269 | 544.0 | 408.7 | |
| 1.48 | 39.04 | 0.76 | 19.94 | -11.10 | 163.55 | -13.26 | 108.75 | 0.2388 | -1009.9 | -654.5 | |
| 3.23 | -61.00 | 1.65 | -61.00 | -11.50 | 163.09 | -13.72 | 109.80 | 0.2482 | -1034.9 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -10.63 | 163.07 | -13.74 | 106.37 | 0.2445 | 650.0 | 519.2 | |
| 5.85 | -61.00 | 2.99 | -61.00 | -11.20 | 162.95 | -13.86 | 108.46 | 0.2489 | -1039.7 | 999999 | |
| 0.96 | -61.00 | 0.49 | -61.00 | -10.89 | 162.74 | -14.07 | 107.06 | 0.2508 | 776.7 | 999999 | |
| 9.17 | 28.30 | 4.70 | 14.52 | -11.75 | 162.38 | -14.43 | 109.92 | 0.2606 | -1134.0 | -497.2 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -11.02 | 162.08 | -14.74 | 106.90 | 0.2621 | 815.0 | 640.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -13.28 | 161.31 | -15.50 | 113.94 | 0.2859 | -272.0 | -322.9 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -15.64 | 160.52 | -16.29 | 120.12 | 0.3137 | -558.0 | -747.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -12.51 | 160.75 | -16.06 | 110.77 | 0.2901 | -984.0 | -832.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -15.55 | 160.40 | -16.41 | 119.68 | 0.3147 | -859.0 | -666.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -15.91 | 160.31 | -16.51 | 120.56 | 0.3188 | -825.0 | -640.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.53 | 160.56 | -16.25 | 110.65 | 0.2932 | -681.0 | -453.7 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -16.90 | 160.09 | -16.73 | 122.96 | 0.3297 | -803.0 | -666.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -14.30 | 160.24 | -16.57 | 115.82 | 0.3084 | -867.0 | -685.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -14.90 | 160.16 | -16.65 | 117.50 | 0.3135 | -978.0 | -776.2 | |
| 0.00 | 1.92 | 0.00 | 1.00 | -15.20 | 160.11 | -16.71 | 118.30 | 0.3165 | -996.0 | -736.1 | |
| 0.00 | 2.01 | 0.00 | 1.05 | -14.69 | 160.08 | -16.73 | 116.78 | 0.3133 | -926.0 | -821.6 | |
| 0.00 | 2.01 | 0.00 | 1.06 | -17.26 | 159.86 | -16.96 | 123.57 | 0.3357 | -674.0 | -613.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -17.10 | 159.77 | -17.04 | 123.05 | 0.3356 | -902.0 | -738.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -15.06 | 159.50 | -17.31 | 117.14 | 0.3243 | -778.0 | -656.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.04 | 159.80 | -17.02 | 105.08 | 0.2988 | -774.0 | -630.1 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -14.57 | 159.45 | -17.37 | 115.68 | 0.3220 | -767.0 | -636.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.73 | 159.20 | -17.61 | 109.95 | 0.3153 | -779.0 | -648.2 | |
| 0.00 | 1.83 | 0.00 | 0.97 | -16.88 | 158.65 | -18.16 | 120.98 | 0.3495 | -941.0 | -788.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -11.10 | 159.03 | -17.79 | 104.75 | 0.3113 | -807.0 | -665.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.45 | 157.48 | -19.33 | 107.74 | 0.3409 | -855.0 | -680.2 | |
| 0.96 | 3.14 | 0.51 | 1.66 | -13.07 | 157.23 | -19.58 | 109.31 | 0.3474 | -984.9 | -833.2 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -17.47 | 156.59 | -20.22 | 120.03 | 0.3824 | -495.0 | -390.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.94 | 157.02 | -19.80 | 108.79 | 0.3502 | -756.0 | -670.1 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -9.16 | 156.22 | -20.59 | 97.72 | 0.3519 | -780.0 | -561.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
