SDO HMI 2014-03-25 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.93 | 323.61 | 55.53 | 196.13 | 10.43 | 143.45 | -30.61 | 60.53 | 0.5762 | -194.8 | -107.5 | |
|
previous
or next observation for the same group /

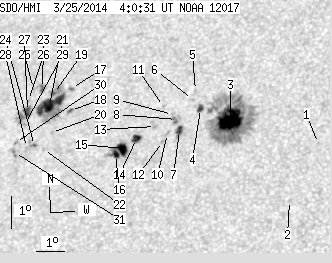

back to the solar disc SDO HMI 2014-03-25 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.45 | 9.34 | 149.07 | -25.00 | 57.24 | 0.4978 | -580.0 | -495.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 7.62 | 148.22 | -25.85 | 61.10 | 0.4956 | -634.0 | -564.2 | |
| 35.93 | 172.99 | 21.17 | 101.95 | 10.26 | 146.00 | -28.06 | 58.75 | 0.5436 | -1163.1 | -364.1 | |
| 2.53 | 4.20 | 1.51 | 2.50 | 10.67 | 144.92 | -29.15 | 59.08 | 0.5601 | -827.9 | -562.2 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 11.25 | 144.68 | -29.38 | 58.39 | 0.5672 | -504.0 | -431.8 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 10.97 | 144.61 | -29.46 | 58.88 | 0.5661 | -642.0 | -451.0 | |
| 3.41 | 6.38 | 2.04 | 3.82 | 10.03 | 144.25 | -29.81 | 60.66 | 0.5638 | -784.9 | -283.2 | |
| 0.00 | 5.07 | 0.00 | 3.05 | 10.38 | 144.11 | -29.96 | 60.23 | 0.5680 | -864.0 | -725.5 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 10.55 | 143.95 | -30.11 | 60.10 | 0.5712 | -531.0 | -537.0 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 9.96 | 143.84 | -30.23 | 61.10 | 0.5686 | -499.0 | -325.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 10.82 | 143.60 | -30.46 | 59.97 | 0.5773 | -610.0 | -501.0 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 9.72 | 143.68 | -30.38 | 61.60 | 0.5689 | 548.0 | 431.2 | |
| 0.00 | 2.27 | 0.00 | 1.37 | 10.21 | 143.39 | -30.68 | 61.09 | 0.5758 | -748.0 | -573.2 | |
| 4.46 | 6.38 | 2.71 | 3.88 | 9.87 | 142.75 | -31.32 | 62.10 | 0.5816 | -893.5 | -642.8 | |
| 8.22 | 20.98 | 5.01 | 12.81 | 9.59 | 142.28 | -31.79 | 62.89 | 0.5857 | -901.9 | -273.2 | |
| 3.50 | -15.00 | 2.14 | -15.00 | 9.42 | 142.04 | -32.02 | 63.33 | 0.5876 | -794.9 | 999999 | |
| 0.44 | 2.53 | 0.28 | 1.60 | 11.61 | 140.18 | -33.88 | 61.43 | 0.6240 | 823.8 | 645.9 | |
| 0.61 | 2.19 | 0.39 | 1.38 | 10.92 | 140.24 | -33.83 | 62.40 | 0.6191 | 793.7 | 634.3 | |
| 1.49 | 57.61 | 0.95 | 36.62 | 11.50 | 139.53 | -34.53 | 62.05 | 0.6311 | 706.9 | 550.9 | |
| 0.00 | 1.31 | 0.00 | 0.83 | 10.28 | 139.62 | -34.44 | 63.76 | 0.6227 | 819.0 | 711.6 | |
| 24.39 | -19.00 | 15.52 | -19.00 | 11.13 | 139.44 | -34.63 | 62.65 | 0.6300 | 934.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 9.76 | 139.39 | -34.68 | 64.67 | 0.6226 | 743.0 | 585.0 | |
| 1.49 | 4.11 | 0.95 | 2.64 | 11.69 | 139.10 | -34.97 | 62.09 | 0.6374 | 697.5 | 448.4 | |
| 0.61 | 3.93 | 0.39 | 2.50 | 9.91 | 139.04 | -35.03 | 64.68 | 0.6278 | 932.4 | 797.9 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 11.72 | 138.76 | -35.31 | 62.28 | 0.6416 | 374.0 | 288.2 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 11.35 | 138.62 | -35.44 | 62.89 | 0.6410 | 434.0 | 283.4 | |
| 3.85 | 13.64 | 2.47 | 8.77 | 11.00 | 138.63 | -35.43 | 63.37 | 0.6389 | 804.8 | 514.4 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 9.87 | 138.74 | -35.32 | 64.93 | 0.6312 | 650.0 | 598.7 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 10.60 | 138.57 | -35.49 | 63.98 | 0.6373 | 780.0 | 643.0 | |
| 0.00 | 1.92 | 0.00 | 1.23 | 10.06 | 138.31 | -35.76 | 64.93 | 0.6375 | 660.0 | 522.4 | |
| 0.00 | 3.50 | 0.00 | 2.24 | 9.75 | 138.31 | -35.75 | 65.38 | 0.6358 | 527.0 | 575.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
