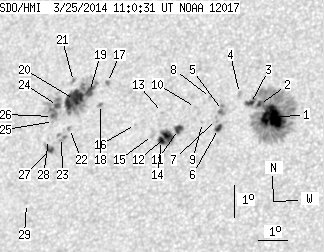

SDO HMI 2014-03-25 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.44 | 333.84 | 49.69 | 194.77 | 10.38 | 143.42 | -26.81 | 57.19 | 0.5285 | -170.7 | -146.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.64 | 186.54 | 18.00 | 106.18 | 10.14 | 146.08 | -24.16 | 55.02 | 0.4937 | -1181.7 | -394.1 | |
| 1.66 | -1.00 | 0.95 | -1.00 | 10.57 | 145.61 | -24.63 | 54.83 | 0.5032 | -739.3 | 999999 | |
| 2.62 | -1.00 | 1.51 | -1.00 | 10.62 | 145.30 | -24.93 | 55.08 | 0.5073 | -776.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.41 | 10.95 | 144.90 | -25.33 | 54.97 | 0.5151 | -588.0 | -492.4 | |
| 0.00 | 6.29 | 0.00 | 3.64 | 10.45 | 144.37 | -25.86 | 56.35 | 0.5174 | -906.0 | -769.6 | |
| 3.23 | 4.90 | 1.87 | 2.82 | 9.89 | 144.29 | -25.95 | 57.35 | 0.5140 | -844.2 | -572.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 10.18 | 144.19 | -26.04 | 56.97 | 0.5174 | -816.0 | -728.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 10.88 | 143.93 | -26.31 | 56.11 | 0.5264 | -502.0 | -484.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 10.11 | 143.73 | -26.51 | 57.56 | 0.5228 | -652.0 | -555.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 10.59 | 143.44 | -26.79 | 57.05 | 0.5301 | -696.0 | -559.0 | |
| 4.11 | 6.03 | 2.40 | 3.52 | 9.94 | 142.92 | -27.31 | 58.62 | 0.5315 | -920.1 | -678.4 | |
| 3.85 | 19.06 | 2.25 | 11.15 | 9.77 | 142.56 | -27.67 | 59.22 | 0.5348 | -966.7 | -651.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 10.50 | 142.32 | -27.91 | 58.27 | 0.5433 | -578.0 | -501.4 | |
| 3.32 | -12.00 | 1.95 | -12.00 | 9.63 | 142.37 | -27.87 | 59.64 | 0.5362 | -758.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 9.80 | 142.04 | -28.19 | 59.65 | 0.5416 | 205.0 | 135.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 10.18 | 141.42 | -28.82 | 59.60 | 0.5522 | 566.0 | 471.8 | |
| 0.00 | 2.19 | 0.00 | 1.32 | 11.57 | 140.29 | -29.95 | 58.45 | 0.5761 | 791.0 | 699.8 | |
| 0.44 | 1.84 | 0.26 | 1.11 | 10.89 | 140.12 | -30.12 | 59.62 | 0.5733 | 859.2 | 691.5 | |
| 4.90 | 58.13 | 2.98 | 35.42 | 11.32 | 139.68 | -30.55 | 59.33 | 0.5818 | 992.3 | 637.7 | |
| 22.38 | -19.00 | 13.66 | -19.00 | 11.10 | 139.17 | -31.06 | 60.07 | 0.5864 | 921.8 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.29 | 11.68 | 139.07 | -31.17 | 59.30 | 0.5916 | 481.0 | 478.9 | |
| 0.00 | 1.75 | 0.00 | 1.06 | 10.20 | 139.10 | -31.14 | 61.50 | 0.5813 | 835.0 | 807.7 | |
| 0.00 | 5.33 | 0.00 | 3.24 | 9.94 | 138.84 | -31.39 | 62.10 | 0.5828 | 727.0 | 782.6 | |
| 2.27 | 20.02 | 1.40 | 12.30 | 10.96 | 138.58 | -31.65 | 60.76 | 0.5926 | 847.8 | 427.1 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 10.46 | 138.50 | -31.74 | 61.57 | 0.5904 | 624.0 | 585.0 | |
| 1.14 | -24.00 | 0.70 | -24.00 | 10.62 | 138.44 | -31.79 | 61.37 | 0.5922 | 790.3 | 999999 | |
| 2.88 | 6.29 | 1.76 | 3.84 | 9.59 | 138.48 | -31.75 | 62.91 | 0.5850 | 749.4 | 562.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 9.91 | 138.38 | -31.86 | 62.50 | 0.5883 | 579.0 | 533.7 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 7.96 | 137.78 | -32.45 | 65.95 | 0.5842 | -555.0 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
