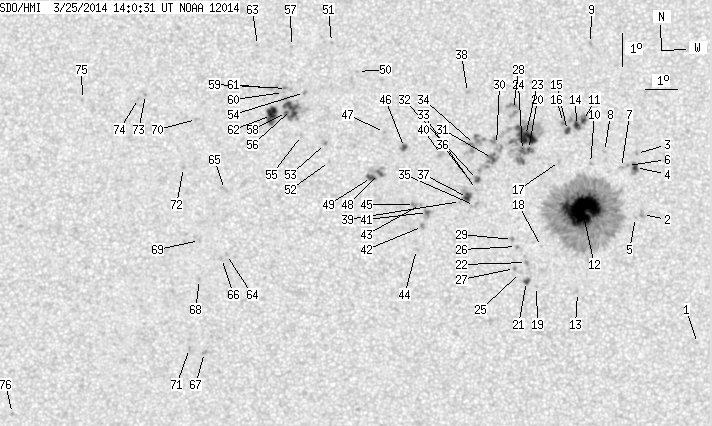

SDO HMI 2014-03-25 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.09 | 781.73 | 71.99 | 390.85 | -13.64 | 169.88 | 1.29 | 189.35 | 0.1325 | 417.8 | 350.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.49 | -18.42 | 175.41 | 6.82 | 209.22 | 0.2318 | -673.0 | -379.3 | |
| 0.00 | 3.15 | 0.00 | 1.58 | -14.53 | 173.57 | 4.98 | 212.08 | 0.1590 | 404.0 | 285.7 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.69 | 173.35 | 4.76 | 218.36 | 0.1310 | 902.0 | 691.4 | |
| 2.36 | 6.90 | 1.18 | 3.45 | -13.11 | 173.33 | 4.74 | 216.28 | 0.1366 | 1036.1 | 748.1 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -14.62 | 173.35 | 4.77 | 210.65 | 0.1584 | 694.0 | 535.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -13.06 | 173.08 | 4.49 | 215.09 | 0.1333 | 956.0 | 773.6 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -13.12 | 172.90 | 4.31 | 213.72 | 0.1323 | 815.0 | 601.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -12.64 | 172.37 | 3.78 | 212.42 | 0.1205 | -780.0 | -498.3 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -9.41 | 171.90 | 3.31 | 231.80 | 0.0729 | 979.0 | 736.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -13.00 | 171.94 | 3.35 | 207.93 | 0.1222 | -835.0 | -667.9 | |
| 1.75 | 18.26 | 0.87 | 9.09 | -11.71 | 171.71 | 3.12 | 212.10 | 0.1008 | 1090.6 | 781.1 | |
| 69.73 | 429.84 | 34.90 | 215.19 | -14.42 | 171.71 | 3.12 | 201.79 | 0.1428 | 1447.2 | 409.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.90 | 171.59 | 3.00 | 196.00 | 0.1826 | -720.0 | -535.7 | |
| 3.32 | -11.00 | 1.65 | -11.00 | -11.87 | 171.50 | 2.91 | 209.55 | 0.1012 | 1164.4 | 999999 | |
| 2.18 | 3.76 | 1.09 | 1.87 | -12.02 | 171.23 | 2.64 | 206.50 | 0.1013 | 1104.9 | 893.1 | |
| 0.00 | 2.62 | 0.00 | 1.30 | -11.78 | 171.10 | 2.51 | 206.50 | 0.0966 | 1170.0 | 957.2 | |
| 0.00 | 2.01 | 0.00 | 1.00 | -12.95 | 170.99 | 2.40 | 200.98 | 0.1145 | 920.0 | 740.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -15.51 | 170.45 | 1.86 | 191.75 | 0.1547 | 661.0 | 494.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.72 | 170.31 | 1.72 | 189.50 | 0.1748 | -926.0 | -733.5 | |
| 1.14 | 91.84 | 0.57 | 45.71 | -12.59 | 170.04 | 1.45 | 193.82 | 0.1036 | 1120.5 | 618.6 | |
| 1.84 | 3.41 | 0.92 | 1.71 | -16.57 | 169.99 | 1.41 | 187.92 | 0.1714 | -1044.6 | -858.5 | |
| 0.00 | 2.01 | 0.00 | 1.01 | -16.00 | 169.99 | 1.40 | 188.41 | 0.1615 | 792.0 | 673.6 | |
| 20.36 | -20.00 | 10.13 | -20.00 | -12.17 | 169.94 | 1.35 | 193.96 | 0.0961 | 1269.7 | 999999 | |
| 2.27 | -20.00 | 1.13 | -20.00 | -12.62 | 169.85 | 1.26 | 192.06 | 0.1034 | 1168.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -16.30 | 169.81 | 1.22 | 187.07 | 0.1663 | -761.0 | -532.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -15.51 | 169.68 | 1.09 | 186.93 | 0.1525 | 856.0 | 763.4 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -16.18 | 169.62 | 1.03 | 186.08 | 0.1638 | -978.0 | -743.2 | |
| 0.00 | 10.75 | 0.00 | 5.34 | -11.39 | 169.57 | 0.98 | 192.00 | 0.0814 | 754.0 | 872.1 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -15.30 | 169.55 | 0.96 | 186.30 | 0.1486 | 1041.0 | 851.2 | |
| 0.00 | 8.30 | 0.00 | 4.13 | -12.44 | 169.06 | 0.47 | 184.66 | 0.0983 | 749.0 | 882.9 | |
| 3.15 | 16.69 | 1.57 | 8.31 | -12.86 | 168.93 | 0.34 | 183.20 | 0.1054 | 1112.1 | 832.5 | |
| 1.57 | 3.67 | 0.78 | 1.83 | -13.49 | 168.47 | -0.12 | 179.02 | 0.1163 | 1032.2 | 798.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -13.79 | 168.44 | -0.15 | 178.81 | 0.1215 | 688.0 | 609.0 | |
| 0.00 | 18.70 | 0.00 | 9.31 | -12.44 | 168.38 | -0.21 | 177.93 | 0.0980 | 875.0 | 817.2 | |
| 0.00 | 4.28 | 0.00 | 2.14 | -14.28 | 168.38 | -0.21 | 178.42 | 0.1299 | 624.0 | 662.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.46 | 168.20 | -0.39 | 176.69 | 0.1159 | 748.0 | 535.4 | |
| 4.28 | 10.40 | 2.14 | 5.19 | -14.03 | 168.16 | -0.43 | 176.70 | 0.1259 | 1044.4 | 464.0 | |
| 0.00 | 1.40 | 0.00 | 0.69 | -10.88 | 168.17 | -0.42 | 174.21 | 0.0710 | 918.0 | 697.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -14.15 | 167.95 | -0.64 | 175.12 | 0.1283 | 717.0 | 577.0 | |
| 0.00 | 3.84 | 0.00 | 1.92 | -12.74 | 167.37 | -1.22 | 168.58 | 0.1052 | 715.0 | 578.8 | |
| 0.87 | 6.20 | 0.44 | 3.10 | -14.48 | 166.93 | -1.66 | 168.07 | 0.1365 | -1129.5 | -697.9 | |
| 0.00 | 2.62 | 0.00 | 1.31 | -14.90 | 166.77 | -1.82 | 167.65 | 0.1442 | -1100.0 | -923.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -14.24 | 166.71 | -1.88 | 166.16 | 0.1332 | -866.0 | -713.1 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -15.60 | 166.58 | -2.01 | 167.47 | 0.1566 | -704.0 | -536.8 | |
| 0.00 | 2.88 | 0.00 | 1.44 | -14.24 | 166.53 | -2.06 | 164.85 | 0.1340 | -1140.0 | -982.1 | |
| 1.84 | 4.11 | 0.91 | 2.05 | -12.52 | 166.24 | -2.35 | 157.98 | 0.1073 | -1093.2 | -830.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.07 | 165.63 | -2.96 | 151.04 | 0.1047 | 832.0 | 683.9 | |
| 1.57 | 15.64 | 0.79 | 7.81 | -13.30 | 165.46 | -3.13 | 154.75 | 0.1250 | -1117.8 | -653.1 | |
| 2.97 | -48.00 | 1.48 | -48.00 | -13.42 | 165.21 | -3.37 | 153.46 | 0.1287 | -1198.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -10.23 | 164.83 | -3.76 | 132.61 | 0.0880 | 875.0 | 704.9 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -9.36 | 164.05 | -4.54 | 119.52 | 0.0901 | 844.0 | 626.6 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -12.92 | 163.93 | -4.66 | 143.32 | 0.1331 | -778.0 | -584.2 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -12.38 | 163.82 | -4.77 | 140.02 | 0.1270 | -1043.0 | -861.6 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -10.85 | 163.21 | -5.38 | 127.32 | 0.1164 | 936.0 | 737.1 | |
| 0.00 | 2.01 | 0.00 | 1.00 | -12.13 | 163.09 | -5.50 | 134.67 | 0.1324 | -994.0 | -705.4 | |
| 10.57 | 30.23 | 5.28 | 15.10 | -11.35 | 162.80 | -5.79 | 128.65 | 0.1273 | -1189.3 | -677.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -9.46 | 162.83 | -5.75 | 115.06 | 0.1097 | 727.0 | 631.6 | |
| 0.96 | -56.00 | 0.48 | -56.00 | -11.44 | 162.64 | -5.95 | 128.46 | 0.1303 | -1170.5 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.74 | -10.72 | 162.66 | -5.93 | 123.87 | 0.1229 | 739.0 | 707.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -10.84 | 162.56 | -6.03 | 124.27 | 0.1253 | 46.0 | 87.7 | |
| 0.00 | 3.50 | 0.00 | 1.75 | -10.71 | 162.23 | -6.36 | 122.05 | 0.1290 | 702.0 | 571.4 | |
| 11.36 | 15.29 | 5.68 | 7.65 | -11.52 | 162.18 | -6.41 | 126.94 | 0.1375 | -1108.0 | -793.7 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -9.42 | 161.80 | -6.79 | 111.40 | 0.1258 | 852.0 | 742.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -15.68 | 160.65 | -7.94 | 139.33 | 0.2049 | -899.0 | -720.8 | |
| 0.00 | 3.23 | 0.00 | 1.63 | -13.72 | 160.66 | -7.92 | 132.05 | 0.1812 | -729.0 | -651.5 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -15.80 | 160.49 | -8.10 | 139.15 | 0.2082 | -887.0 | -710.2 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -18.65 | 159.82 | -8.77 | 144.93 | 0.2526 | -902.0 | -784.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -16.42 | 159.77 | -8.82 | 138.76 | 0.2241 | -960.0 | -784.1 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -15.24 | 159.82 | -8.76 | 135.07 | 0.2091 | -848.0 | -700.9 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -11.60 | 159.87 | -8.72 | 119.57 | 0.1715 | -1011.0 | -745.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -18.51 | 159.35 | -9.24 | 143.22 | 0.2555 | -773.0 | -666.4 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -13.04 | 159.42 | -9.17 | 125.14 | 0.1908 | -880.0 | -686.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.82 | 158.32 | -10.27 | 112.13 | 0.1899 | -938.0 | -765.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.94 | 158.10 | -10.49 | 112.29 | 0.1941 | -939.0 | -734.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -10.92 | 156.36 | -12.23 | 109.53 | 0.2217 | -779.0 | -626.4 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -20.36 | 153.46 | -15.13 | 134.15 | 0.3425 | -824.0 | -617.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
