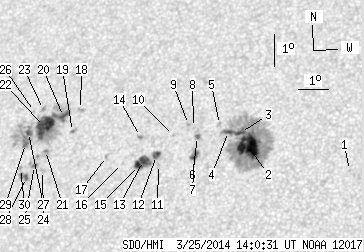

SDO HMI 2014-03-25 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.99 | 357.65 | 50.98 | 206.41 | 10.40 | 143.07 | -25.52 | 55.79 | 0.5127 | -177.8 | -98.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.48 | 9.19 | 149.43 | -19.16 | 50.23 | 0.4233 | -803.0 | -625.0 | |
| 31.63 | 185.78 | 17.76 | 104.39 | 10.08 | 146.10 | -22.49 | 53.15 | 0.4726 | -1190.4 | -398.4 | |
| 3.15 | -2.00 | 1.77 | -2.00 | 10.54 | 145.80 | -22.79 | 52.75 | 0.4804 | -756.7 | 999999 | |
| 2.53 | -2.00 | 1.43 | -2.00 | 10.59 | 145.40 | -23.19 | 53.15 | 0.4857 | -779.4 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 10.82 | 145.08 | -23.51 | 53.14 | 0.4917 | -660.0 | -503.7 | |
| 1.14 | 2.88 | 0.65 | 1.64 | 10.48 | 144.38 | -24.21 | 54.51 | 0.4973 | -979.5 | -774.3 | |
| 3.32 | 6.29 | 1.89 | 3.58 | 9.86 | 144.33 | -24.26 | 55.61 | 0.4926 | -935.0 | -735.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 10.77 | 144.22 | -24.37 | 54.21 | 0.5018 | -627.0 | -518.2 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 10.88 | 144.04 | -24.55 | 54.24 | 0.5048 | -749.0 | -563.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 10.56 | 143.57 | -25.02 | 55.29 | 0.5079 | -563.0 | -478.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 9.67 | 143.13 | -25.45 | 57.21 | 0.5060 | -793.0 | -560.8 | |
| 3.32 | 5.33 | 1.91 | 3.06 | 9.96 | 143.04 | -25.54 | 56.82 | 0.5095 | -976.7 | -755.2 | |
| 3.41 | 16.34 | 1.96 | 9.42 | 9.83 | 142.62 | -25.97 | 57.48 | 0.5138 | -1045.9 | -804.5 | |
| 0.00 | 2.27 | 0.00 | 1.32 | 10.59 | 142.45 | -26.14 | 56.41 | 0.5219 | -769.0 | -610.0 | |
| 4.19 | -13.00 | 2.42 | -13.00 | 9.68 | 142.46 | -26.13 | 57.89 | 0.5146 | -827.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 9.77 | 141.91 | -26.68 | 58.28 | 0.5223 | 552.0 | 349.6 | |
| 0.00 | 1.49 | 0.00 | 0.87 | 10.02 | 141.34 | -27.25 | 58.42 | 0.5313 | 578.0 | 505.1 | |
| 0.00 | 2.18 | 0.00 | 1.30 | 11.56 | 140.29 | -28.30 | 56.99 | 0.5560 | 717.0 | 563.3 | |
| 0.35 | 2.36 | 0.21 | 1.40 | 10.88 | 140.09 | -28.50 | 58.22 | 0.5534 | 894.2 | 726.4 | |
| 4.89 | 67.02 | 2.92 | 40.16 | 11.37 | 139.72 | -28.87 | 57.79 | 0.5615 | 907.7 | 560.2 | |
| 0.35 | 6.73 | 0.21 | 4.02 | 10.34 | 139.20 | -29.39 | 59.85 | 0.5604 | 729.0 | 546.2 | |
| 22.28 | -20.00 | 13.38 | -20.00 | 11.10 | 139.09 | -29.50 | 58.78 | 0.5673 | 940.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.32 | 11.64 | 138.99 | -29.60 | 58.04 | 0.5724 | 600.0 | 441.4 | |
| 0.00 | 2.27 | 0.00 | 1.35 | 9.72 | 139.16 | -29.43 | 60.86 | 0.5566 | 681.0 | 556.0 | |
| 0.96 | 4.46 | 0.57 | 2.66 | 9.89 | 138.86 | -29.72 | 60.84 | 0.5615 | 1000.7 | 813.9 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 11.59 | 138.68 | -29.91 | 58.38 | 0.5758 | 274.0 | 252.5 | |
| 2.45 | 33.47 | 1.48 | 20.21 | 10.94 | 138.54 | -30.05 | 59.48 | 0.5728 | 829.8 | 304.3 | |
| 1.84 | 5.51 | 1.10 | 3.30 | 9.53 | 138.62 | -29.97 | 61.61 | 0.5622 | 886.8 | 641.4 | |
| 2.18 | -27.00 | 1.32 | -27.00 | 10.60 | 138.47 | -30.11 | 60.06 | 0.5713 | 808.9 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.00 | 9.83 | 138.38 | -30.21 | 61.34 | 0.5672 | 529.0 | 475.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
