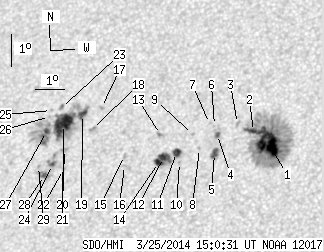

SDO HMI 2014-03-25 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.92 | 341.63 | 47.84 | 196.36 | 10.43 | 143.05 | -24.99 | 55.18 | 0.5064 | -147.3 | -105.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.57 | 173.00 | 15.98 | 96.79 | 10.12 | 146.10 | -21.94 | 52.39 | 0.4662 | -1198.3 | -454.2 | |
| 3.41 | -1.00 | 1.92 | -1.00 | 10.52 | 145.58 | -22.46 | 52.37 | 0.4762 | -785.2 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.48 | 10.80 | 145.03 | -23.01 | 52.58 | 0.4854 | -544.0 | -450.1 | |
| 1.22 | 2.62 | 0.69 | 1.49 | 10.48 | 144.39 | -23.65 | 53.86 | 0.4904 | -974.8 | -778.3 | |
| 3.49 | 6.20 | 1.98 | 3.51 | 9.89 | 144.34 | -23.70 | 54.91 | 0.4859 | -989.6 | -767.7 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 10.77 | 144.27 | -23.77 | 53.52 | 0.4944 | -597.0 | -500.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 10.84 | 144.10 | -23.94 | 53.60 | 0.4972 | -683.0 | -591.7 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 10.08 | 143.83 | -24.21 | 55.19 | 0.4938 | -556.0 | -466.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 10.53 | 143.56 | -24.48 | 54.74 | 0.5010 | -641.0 | -511.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 9.67 | 143.19 | -24.85 | 56.57 | 0.4984 | -726.0 | -611.1 | |
| 4.28 | 6.38 | 2.45 | 3.65 | 9.99 | 143.07 | -24.97 | 56.17 | 0.5026 | -955.4 | -654.2 | |
| 4.72 | 16.60 | 2.71 | 9.52 | 9.86 | 142.64 | -25.40 | 56.84 | 0.5068 | -984.6 | -780.1 | |
| 0.00 | 2.45 | 0.00 | 1.41 | 10.59 | 142.48 | -25.56 | 55.81 | 0.5148 | -827.0 | -592.7 | |
| 3.93 | -12.00 | 2.26 | -12.00 | 9.71 | 142.48 | -25.56 | 57.25 | 0.5076 | -903.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.32 | 10.00 | 141.31 | -26.73 | 57.96 | 0.5246 | 713.0 | 451.6 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 9.68 | 141.34 | -26.70 | 58.45 | 0.5219 | 810.0 | 612.1 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 11.55 | 140.37 | -27.67 | 56.40 | 0.5484 | 788.0 | 529.3 | |
| 0.00 | 2.62 | 0.00 | 1.55 | 10.91 | 140.13 | -27.91 | 57.64 | 0.5463 | 926.0 | 659.7 | |
| 4.19 | 95.24 | 2.49 | 56.92 | 11.37 | 139.73 | -28.31 | 57.28 | 0.5547 | 923.3 | 477.1 | |
| 0.00 | 3.58 | 0.00 | 2.13 | 10.31 | 139.22 | -28.82 | 59.41 | 0.5531 | 738.0 | 594.1 | |
| 23.77 | -19.00 | 14.19 | -19.00 | 11.09 | 139.10 | -28.94 | 58.28 | 0.5603 | 967.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 9.68 | 139.24 | -28.80 | 60.38 | 0.5483 | 772.0 | 654.7 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 11.64 | 138.97 | -29.07 | 57.57 | 0.5660 | 594.0 | 408.7 | |
| 1.49 | 7.51 | 0.88 | 4.47 | 9.86 | 138.84 | -29.20 | 60.44 | 0.5546 | 998.4 | 843.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 11.56 | 138.63 | -29.41 | 57.99 | 0.5696 | 372.0 | 305.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 11.38 | 138.58 | -29.46 | 58.31 | 0.5688 | 167.0 | 127.5 | |
| 2.36 | -19.00 | 1.41 | -19.00 | 10.91 | 138.53 | -29.51 | 59.07 | 0.5661 | 855.5 | 999999 | |
| 1.49 | 6.73 | 0.88 | 4.00 | 9.53 | 138.60 | -29.44 | 61.17 | 0.5555 | 897.7 | 611.6 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 9.83 | 138.36 | -29.68 | 60.90 | 0.5605 | 571.0 | 488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
