SDO HMI 2014-03-25 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.76 | 748.95 | 66.83 | 374.76 | -13.67 | 169.95 | 2.46 | 197.33 | 0.1377 | 447.3 | 346.1 | |
|
previous
or next observation for the same group /

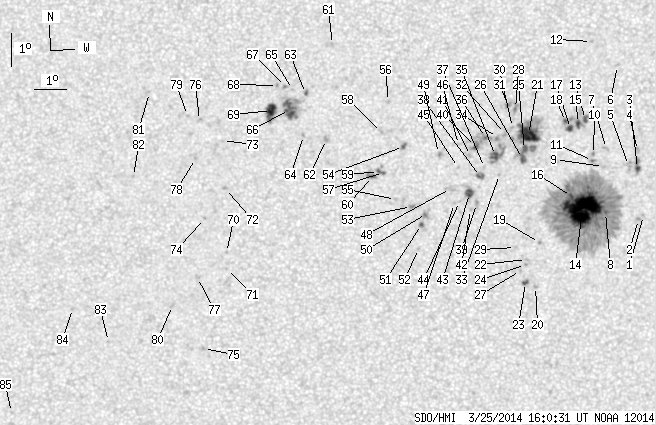

back to the solar disc SDO HMI 2014-03-25 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.57 | 173.62 | 6.13 | 217.42 | 0.1709 | 692.0 | 518.7 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.70 | 173.47 | 5.98 | 216.29 | 0.1710 | 674.0 | 616.1 | |
| 1.75 | 7.25 | 0.88 | 3.63 | -13.16 | 173.40 | 5.91 | 222.20 | 0.1500 | 1070.4 | 849.9 | |
| 0.00 | 2.71 | 0.00 | 1.36 | -12.62 | 173.39 | 5.90 | 224.74 | 0.1431 | 726.0 | 689.1 | |
| 0.00 | 3.67 | 0.00 | 1.84 | -13.07 | 173.12 | 5.63 | 221.24 | 0.1456 | 542.0 | 684.3 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -10.08 | 172.73 | 5.24 | 237.69 | 0.1069 | 804.0 | 679.8 | |
| 0.00 | 2.62 | 0.00 | 1.31 | -12.57 | 172.43 | 4.94 | 220.03 | 0.1314 | -972.0 | -756.5 | |
| 1.05 | 426.00 | 0.53 | 213.51 | -14.50 | 172.44 | 4.95 | 212.04 | 0.1582 | 905.1 | 446.2 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -13.11 | 172.35 | 4.86 | 217.00 | 0.1378 | -368.0 | -312.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -12.75 | 172.03 | 4.55 | 216.83 | 0.1296 | -940.0 | -777.1 | |
| 0.35 | 3.06 | 0.17 | 1.53 | -12.93 | 172.01 | 4.52 | 215.82 | 0.1318 | -580.8 | -275.0 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -9.37 | 171.93 | 4.44 | 239.86 | 0.0887 | 956.0 | 740.3 | |
| 1.75 | 21.14 | 0.87 | 10.54 | -11.70 | 171.77 | 4.29 | 220.72 | 0.1127 | 1066.9 | 880.9 | |
| 59.93 | -8.00 | 30.03 | -8.00 | -14.38 | 171.72 | 4.24 | 208.57 | 0.1503 | 1523.3 | 999999 | |
| 2.18 | -13.00 | 1.09 | -13.00 | -11.83 | 171.56 | 4.07 | 218.60 | 0.1119 | 1248.2 | 999999 | |
| 2.10 | -8.00 | 1.05 | -8.00 | -14.02 | 171.38 | 3.89 | 207.74 | 0.1420 | 1195.9 | 999999 | |
| 2.53 | -13.00 | 1.26 | -13.00 | -11.98 | 171.32 | 3.83 | 216.08 | 0.1115 | 1133.7 | 999999 | |
| 0.96 | -13.00 | 0.48 | -13.00 | -11.77 | 171.16 | 3.67 | 216.10 | 0.1070 | 1160.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -15.41 | 170.41 | 2.92 | 198.23 | 0.1577 | 871.0 | 703.9 | |
| 0.00 | 1.83 | 0.00 | 0.92 | -16.75 | 170.30 | 2.81 | 195.27 | 0.1792 | -874.0 | -676.8 | |
| 18.00 | 71.82 | 8.96 | 35.77 | -12.16 | 170.03 | 2.55 | 205.09 | 0.1029 | 1340.8 | 672.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -15.93 | 170.01 | 2.52 | 194.99 | 0.1643 | 881.0 | 607.9 | |
| 1.49 | 2.71 | 0.75 | 1.36 | -16.63 | 169.99 | 2.50 | 193.81 | 0.1758 | -1003.3 | -873.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -16.08 | 169.98 | 2.49 | 194.59 | 0.1667 | 737.0 | 600.5 | |
| 2.71 | -21.00 | 1.35 | -21.00 | -12.62 | 169.92 | 2.43 | 202.34 | 0.1093 | 1159.2 | 999999 | |
| 2.97 | -21.00 | 1.48 | -21.00 | -12.89 | 169.86 | 2.37 | 200.94 | 0.1133 | 975.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -16.26 | 169.83 | 2.34 | 193.46 | 0.1691 | -643.0 | -501.0 | |
| 0.00 | 4.19 | 0.00 | 2.09 | -11.39 | 169.63 | 2.14 | 204.84 | 0.0877 | 1184.0 | 879.4 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -15.57 | 169.66 | 2.18 | 193.56 | 0.1568 | 770.0 | 619.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.96 | 169.54 | 2.06 | 201.49 | 0.0962 | 909.0 | 701.2 | |
| 0.00 | 3.49 | 0.00 | 1.74 | -11.30 | 169.42 | 1.93 | 203.04 | 0.0848 | 1092.0 | 860.5 | |
| 0.00 | 2.88 | 0.00 | 1.43 | -12.14 | 169.33 | 1.84 | 198.82 | 0.0979 | 971.0 | 837.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -13.37 | 169.15 | 1.67 | 193.98 | 0.1176 | -575.0 | -393.8 | |
| 0.00 | 2.10 | 0.00 | 1.04 | -12.26 | 169.09 | 1.60 | 196.12 | 0.0986 | 1086.0 | 943.2 | |
| 3.76 | 16.60 | 1.87 | 8.27 | -12.80 | 169.03 | 1.54 | 194.18 | 0.1075 | 1145.6 | 871.8 | |
| 0.61 | 19.22 | 0.30 | 9.57 | -12.26 | 168.72 | 1.23 | 192.56 | 0.0971 | 1152.9 | 744.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.16 | 168.69 | 1.20 | 190.54 | 0.1124 | 948.0 | 686.5 | |
| 1.66 | 5.24 | 0.83 | 2.61 | -13.43 | 168.57 | 1.08 | 189.11 | 0.1167 | 1085.7 | 904.8 | |
| 0.00 | 3.06 | 0.00 | 1.53 | -14.24 | 168.45 | 0.96 | 187.20 | 0.1304 | 1055.0 | 784.7 | |
| 1.49 | -36.00 | 0.74 | -36.00 | -12.53 | 168.41 | 0.93 | 189.06 | 0.1007 | 1082.2 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.00 | -12.80 | 168.26 | 0.77 | 187.24 | 0.1050 | 700.0 | 567.9 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -14.42 | 168.27 | 0.78 | 185.69 | 0.1331 | 784.0 | 678.6 | |
| 4.19 | 8.56 | 2.09 | 4.27 | -13.94 | 168.23 | 0.75 | 185.84 | 0.1247 | 1039.5 | 551.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.18 | 167.93 | 0.44 | 183.32 | 0.1285 | 628.0 | 453.8 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -13.16 | 167.89 | 0.41 | 183.60 | 0.1107 | 856.0 | 628.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.47 | 167.89 | 0.41 | 184.04 | 0.0987 | 352.0 | 195.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.24 | 167.77 | 0.28 | 182.14 | 0.1294 | 684.0 | 455.0 | |
| 0.00 | 5.42 | 0.00 | 2.70 | -13.79 | 167.65 | 0.16 | 181.29 | 0.1215 | -287.0 | -338.4 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -12.74 | 167.28 | -0.21 | 178.04 | 0.1032 | 781.0 | 609.8 | |
| 0.00 | 5.68 | 0.00 | 2.84 | -14.54 | 166.91 | -0.58 | 175.81 | 0.1349 | -1045.0 | -818.4 | |
| 0.79 | 1.92 | 0.39 | 0.96 | -14.87 | 166.75 | -0.74 | 174.92 | 0.1408 | -1081.3 | -913.3 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -15.60 | 166.65 | -0.83 | 174.74 | 0.1535 | -713.0 | -595.5 | |
| 0.00 | 2.80 | 0.00 | 1.40 | -14.33 | 166.45 | -1.04 | 172.29 | 0.1320 | -1254.0 | -978.4 | |
| 1.05 | 2.71 | 0.52 | 1.35 | -12.53 | 166.21 | -1.28 | 167.60 | 0.1018 | -1082.2 | -874.0 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -14.12 | 165.95 | -1.53 | 168.41 | 0.1298 | -814.0 | -642.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -11.17 | 165.76 | -1.73 | 158.62 | 0.0814 | 956.0 | 717.6 | |
| 0.52 | 5.50 | 0.26 | 2.75 | -13.30 | 165.59 | -1.90 | 164.03 | 0.1176 | -922.2 | -796.7 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -12.10 | 165.54 | -1.95 | 160.07 | 0.0979 | 870.0 | 566.9 | |
| 0.96 | -57.00 | 0.48 | -57.00 | -13.27 | 165.44 | -2.05 | 162.73 | 0.1178 | -1119.0 | 999999 | |
| 1.31 | 6.47 | 0.65 | 3.23 | -13.42 | 165.25 | -2.24 | 161.68 | 0.1213 | -1218.3 | -792.2 | |
| 0.00 | 1.75 | 0.00 | 0.87 | -9.46 | 164.08 | -3.41 | 127.91 | 0.0748 | 820.0 | 671.0 | |
| 0.00 | 2.97 | 0.00 | 1.48 | -12.30 | 163.86 | -3.63 | 146.98 | 0.1141 | -933.0 | -818.9 | |
| 0.52 | 2.36 | 0.26 | 1.17 | -10.92 | 163.23 | -4.25 | 134.37 | 0.1024 | 830.5 | 700.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.17 | 163.15 | -4.34 | 141.58 | 0.1195 | -978.0 | -836.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.79 | 162.84 | -4.65 | 130.98 | 0.1059 | 519.0 | 370.8 | |
| 10.66 | 30.14 | 5.31 | 15.03 | -11.39 | 162.74 | -4.75 | 134.43 | 0.1142 | -1207.3 | -667.7 | |
| 0.00 | 1.92 | 0.00 | 0.96 | -10.70 | 162.63 | -4.86 | 129.07 | 0.1077 | 919.0 | 640.7 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -10.67 | 162.38 | -5.10 | 127.49 | 0.1107 | 848.0 | 729.2 | |
| 8.47 | 15.03 | 4.23 | 7.50 | -11.41 | 162.19 | -5.30 | 131.49 | 0.1215 | -1165.8 | -850.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -15.67 | 160.68 | -6.81 | 143.48 | 0.1927 | -1007.0 | -729.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -16.15 | 160.66 | -6.82 | 144.91 | 0.1995 | -961.0 | -752.4 | |
| 0.00 | 1.92 | 0.00 | 0.97 | -13.74 | 160.71 | -6.78 | 136.49 | 0.1673 | -1031.0 | -811.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.29 | 160.66 | -6.83 | 129.49 | 0.1512 | -668.0 | -588.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.63 | 160.03 | -7.46 | 137.36 | 0.1862 | -895.0 | -774.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.57 | 159.84 | -7.65 | 148.28 | 0.2411 | -957.0 | -816.1 | |
| 0.00 | 1.92 | 0.00 | 0.96 | -11.68 | 159.97 | -7.52 | 123.64 | 0.1546 | -882.0 | -728.0 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -16.41 | 159.74 | -7.75 | 142.28 | 0.2123 | -755.0 | -684.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.82 | 159.81 | -7.68 | 128.90 | 0.1681 | -956.0 | -782.3 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -11.53 | 159.61 | -7.88 | 121.59 | 0.1585 | -941.0 | -713.6 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -17.24 | 158.92 | -8.57 | 141.93 | 0.2319 | -730.0 | -621.8 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -10.81 | 158.46 | -9.03 | 114.61 | 0.1704 | -760.0 | -611.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -13.32 | 157.87 | -9.62 | 125.14 | 0.1997 | -793.0 | -646.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -18.30 | 156.82 | -10.67 | 138.76 | 0.2678 | -803.0 | -556.2 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -17.27 | 155.74 | -11.75 | 133.29 | 0.2684 | -849.0 | -687.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -20.39 | 153.51 | -13.98 | 136.37 | 0.3296 | -805.0 | -615.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
