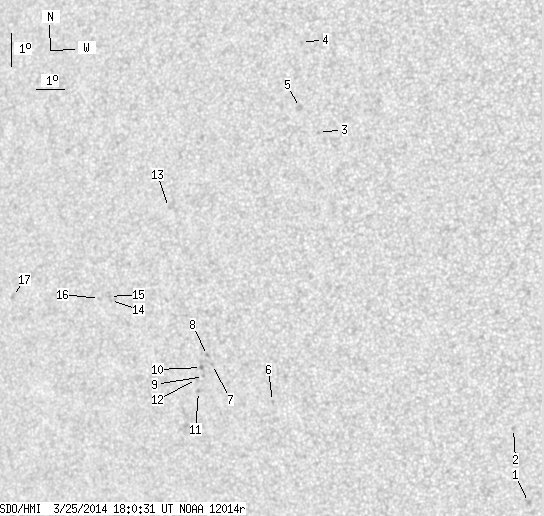

SDO HMI 2014-03-25 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.42 | 0.00 | 16.28 | -13.55 | 133.79 | -32.59 | 104.92 | 0.5459 | 735.6 | 571.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.41 | 0.00 | 1.88 | -19.82 | 142.79 | -23.60 | 121.83 | 0.4451 | 826.0 | 657.4 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -17.54 | 142.61 | -23.77 | 116.91 | 0.4329 | 749.0 | 565.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -8.30 | 136.97 | -29.42 | 94.77 | 0.4897 | 796.0 | 620.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -5.58 | 136.57 | -29.81 | 89.26 | 0.4969 | 825.0 | 660.3 | |
| 0.00 | 3.67 | 0.00 | 2.09 | -7.52 | 136.37 | -30.01 | 93.18 | 0.4987 | 529.0 | 425.9 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -16.26 | 134.28 | -32.11 | 109.53 | 0.5435 | 769.0 | 595.5 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -15.00 | 132.28 | -34.10 | 106.62 | 0.5673 | 765.0 | 634.5 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -14.72 | 132.15 | -34.24 | 106.08 | 0.5685 | 871.0 | 728.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -15.34 | 131.88 | -34.50 | 107.08 | 0.5737 | 884.0 | 734.9 | |
| 0.00 | 1.75 | 0.00 | 1.05 | -15.07 | 131.86 | -34.53 | 106.60 | 0.5733 | 891.0 | 732.3 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -15.78 | 131.61 | -34.78 | 107.75 | 0.5785 | 756.0 | 578.7 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -15.41 | 131.60 | -34.78 | 107.12 | 0.5777 | 699.0 | 563.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -10.20 | 131.39 | -34.99 | 98.03 | 0.5722 | 582.0 | 419.1 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -12.82 | 128.79 | -37.59 | 102.16 | 0.6107 | 640.0 | 539.5 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -12.70 | 128.77 | -37.61 | 101.96 | 0.6108 | 680.0 | 579.6 | |
| 0.00 | 1.83 | 0.00 | 1.15 | -12.73 | 128.38 | -38.00 | 101.95 | 0.6162 | 568.0 | 385.2 | |
| 0.00 | 1.83 | 0.00 | 1.21 | -12.41 | 124.97 | -41.42 | 101.04 | 0.6606 | 676.0 | 534.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
