SDO HMI 2014-03-25 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.13 | 61.94 | 9.79 | 35.34 | 3.30 | 138.44 | -27.95 | 70.76 | 0.4974 | -109.7 | 37.7 | |
|
previous
or next observation for the same group /

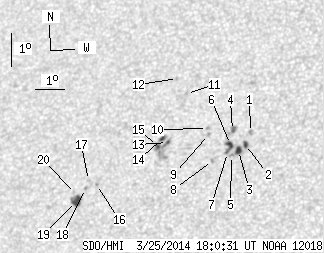

back to the solar disc SDO HMI 2014-03-25 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.27 | 3.76 | 141.00 | -25.39 | 68.01 | 0.4633 | -990.0 | -777.0 | |
| 1.75 | 3.23 | 0.98 | 1.80 | 3.41 | 140.84 | -25.54 | 68.86 | 0.4634 | -1013.2 | -795.4 | |
| 3.23 | 4.72 | 1.81 | 2.64 | 3.24 | 140.62 | -25.77 | 69.38 | 0.4657 | -1025.6 | -837.8 | |
| 0.00 | 4.54 | 0.00 | 2.55 | 3.86 | 140.40 | -25.99 | 68.32 | 0.4724 | -1059.0 | -729.1 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 3.10 | 140.39 | -26.00 | 69.84 | 0.4682 | -737.0 | -687.6 | |
| 2.45 | 6.99 | 1.37 | 3.92 | 3.44 | 140.34 | -26.04 | 69.20 | 0.4707 | -827.0 | -585.5 | |
| 0.35 | -6.00 | 0.20 | -6.00 | 3.20 | 140.25 | -26.14 | 69.74 | 0.4707 | -761.0 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 2.98 | 139.75 | -26.63 | 70.54 | 0.4767 | -615.0 | -516.6 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 3.78 | 139.60 | -26.79 | 69.10 | 0.4834 | -446.0 | -278.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 3.97 | 139.56 | -26.83 | 68.78 | 0.4850 | -694.0 | -558.7 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 5.07 | 138.80 | -27.58 | 67.28 | 0.5020 | -846.0 | -683.5 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 5.55 | 138.47 | -27.91 | 66.67 | 0.5094 | -690.0 | -514.6 | |
| 0.87 | 18.61 | 0.50 | 10.66 | 3.62 | 138.22 | -28.17 | 70.42 | 0.5021 | 1060.6 | 714.9 | |
| 1.40 | -13.00 | 0.80 | -13.00 | 3.75 | 138.04 | -28.34 | 70.30 | 0.5053 | 804.0 | 999999 | |
| 1.40 | -13.00 | 0.80 | -13.00 | 3.51 | 137.88 | -28.51 | 70.84 | 0.5063 | 810.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 2.49 | 135.81 | -30.58 | 74.00 | 0.5308 | 793.0 | 607.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 2.63 | 135.52 | -30.86 | 73.91 | 0.5354 | 645.0 | 483.7 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 2.39 | 135.42 | -30.96 | 74.39 | 0.5358 | 733.0 | 617.0 | |
| 5.68 | 9.26 | 3.33 | 5.44 | 2.02 | 135.12 | -31.27 | 75.22 | 0.5386 | 902.3 | 633.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 2.26 | 135.08 | -31.31 | 74.80 | 0.5402 | 304.0 | 464.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
