SDO HMI 2014-03-25 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.24 | 82.66 | 13.05 | 46.49 | 3.31 | 138.92 | -26.36 | 69.57 | 0.4748 | -230.6 | -45.6 | |
|
previous
or next observation for the same group /

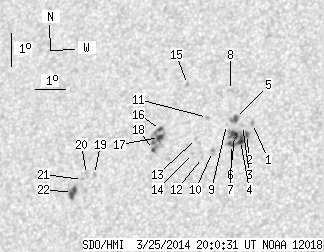

back to the solar disc SDO HMI 2014-03-25 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.01 | 3.76 | 141.15 | -24.13 | 66.92 | 0.4453 | -877.0 | -731.1 | |
| 1.31 | 25.86 | 0.72 | 14.33 | 3.44 | 140.96 | -24.32 | 67.76 | 0.4460 | -1099.8 | -650.6 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 3.72 | 140.82 | -24.46 | 67.31 | 0.4497 | -645.0 | -519.4 | |
| 3.84 | -2.00 | 2.13 | -2.00 | 3.26 | 140.77 | -24.51 | 68.29 | 0.4477 | -1078.8 | 999999 | |
| 1.92 | 5.50 | 1.07 | 3.06 | 3.94 | 140.59 | -24.70 | 67.06 | 0.4545 | -896.1 | -576.6 | |
| 4.63 | -2.00 | 2.57 | -2.00 | 3.43 | 140.57 | -24.71 | 68.12 | 0.4516 | -842.2 | 999999 | |
| 1.75 | -2.00 | 0.97 | -2.00 | 3.16 | 140.47 | -24.81 | 68.75 | 0.4513 | -738.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.32 | 4.81 | 140.39 | -24.89 | 65.51 | 0.4628 | -700.0 | -630.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 3.78 | 140.29 | -24.99 | 67.65 | 0.4577 | -306.0 | -270.9 | |
| 0.00 | 2.80 | 0.00 | 1.56 | 2.98 | 139.85 | -25.43 | 69.63 | 0.4593 | -746.0 | -695.9 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 4.02 | 139.65 | -25.63 | 67.70 | 0.4683 | -792.0 | -497.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 2.82 | 139.52 | -25.76 | 70.22 | 0.4632 | -459.0 | -353.4 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 3.40 | 139.31 | -25.97 | 69.20 | 0.4696 | -585.0 | -477.7 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 2.95 | 139.19 | -26.10 | 70.19 | 0.4688 | -582.0 | -412.8 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 5.07 | 138.95 | -26.33 | 66.27 | 0.4846 | -842.0 | -695.9 | |
| 1.40 | 22.37 | 0.79 | 12.68 | 3.74 | 138.09 | -27.19 | 69.47 | 0.4889 | 913.3 | 678.0 | |
| 2.88 | -16.00 | 1.63 | -16.00 | 3.50 | 138.06 | -27.22 | 69.95 | 0.4879 | 1069.8 | 999999 | |
| 1.05 | -16.00 | 0.59 | -16.00 | 3.15 | 137.87 | -27.41 | 70.77 | 0.4888 | 918.4 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 2.51 | 135.88 | -29.40 | 73.28 | 0.5142 | 649.0 | 393.1 | |
| 0.00 | 2.45 | 0.00 | 1.41 | 2.53 | 135.60 | -29.68 | 73.41 | 0.5182 | 576.0 | 550.4 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 2.38 | 135.47 | -29.81 | 73.76 | 0.5195 | 828.0 | 700.6 | |
| 4.46 | 7.95 | 2.58 | 4.61 | 2.01 | 135.13 | -30.15 | 74.63 | 0.5227 | 928.9 | 691.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
