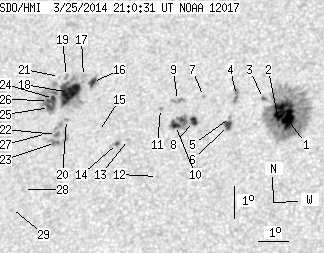

SDO HMI 2014-03-25 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.11 | 369.75 | 50.10 | 206.95 | 10.32 | 143.11 | -21.62 | 51.25 | 0.4646 | -191.6 | -143.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.30 | 190.47 | 19.30 | 104.14 | 10.06 | 146.17 | -18.56 | 47.74 | 0.4253 | -1253.5 | -407.7 | |
| 1.57 | -1.00 | 0.86 | -1.00 | 9.72 | 146.03 | -18.70 | 48.55 | 0.4234 | -983.8 | 999999 | |
| 0.87 | -1.00 | 0.48 | -1.00 | 10.59 | 145.46 | -19.27 | 47.89 | 0.4390 | -583.3 | 999999 | |
| 0.00 | 6.99 | 0.00 | 3.87 | 10.72 | 144.58 | -20.15 | 48.95 | 0.4507 | -957.0 | -754.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 10.04 | 144.43 | -20.30 | 50.33 | 0.4456 | -774.0 | -665.5 | |
| 3.76 | 5.85 | 2.07 | 3.23 | 9.79 | 144.38 | -20.35 | 50.83 | 0.4438 | -1031.4 | -737.3 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 10.74 | 143.51 | -21.22 | 50.40 | 0.4635 | -763.0 | -595.4 | |
| 3.84 | 23.94 | 2.14 | 13.37 | 9.97 | 143.23 | -21.50 | 52.07 | 0.4594 | -991.4 | -769.5 | |
| 0.00 | 4.89 | 0.00 | 2.75 | 10.65 | 142.66 | -22.07 | 51.64 | 0.4728 | -729.0 | -711.7 | |
| 4.63 | -8.00 | 2.59 | -8.00 | 9.87 | 142.65 | -22.08 | 52.99 | 0.4656 | -945.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 10.43 | 142.12 | -22.61 | 52.70 | 0.4773 | -750.0 | -667.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 8.31 | 142.16 | -22.57 | 56.37 | 0.4579 | -707.0 | -575.8 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 9.51 | 141.13 | -23.60 | 55.45 | 0.4814 | 593.0 | 490.0 | |
| 0.96 | 3.76 | 0.54 | 2.13 | 9.40 | 140.77 | -23.96 | 56.04 | 0.4850 | 809.0 | 620.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 9.81 | 140.11 | -24.62 | 56.08 | 0.4967 | -671.0 | -525.5 | |
| 3.58 | 5.59 | 2.07 | 3.22 | 11.36 | 139.77 | -24.95 | 53.90 | 0.5140 | 899.0 | 684.5 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 11.57 | 139.45 | -25.28 | 53.92 | 0.5197 | 73.0 | 146.0 | |
| 25.51 | 92.18 | 14.78 | 53.51 | 11.09 | 139.02 | -25.71 | 55.14 | 0.5208 | 1020.2 | 429.7 | |
| 0.00 | 1.92 | 0.00 | 1.12 | 11.60 | 138.87 | -25.86 | 54.49 | 0.5269 | 590.0 | 467.6 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 10.24 | 139.00 | -25.73 | 56.54 | 0.5142 | 970.0 | 750.3 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 11.61 | 138.63 | -26.10 | 54.72 | 0.5299 | 408.0 | 349.2 | |
| 0.70 | 8.13 | 0.40 | 4.69 | 9.79 | 138.70 | -26.03 | 57.59 | 0.5143 | 959.5 | 816.7 | |
| 1.14 | 11.18 | 0.65 | 6.44 | 9.54 | 138.69 | -26.04 | 58.02 | 0.5125 | 929.9 | 711.3 | |
| 2.01 | -18.00 | 1.17 | -18.00 | 10.93 | 138.50 | -26.23 | 55.94 | 0.5259 | 953.3 | 999999 | |
| 3.49 | -18.00 | 2.03 | -18.00 | 10.65 | 138.39 | -26.34 | 56.50 | 0.5251 | 805.2 | 999999 | |
| 1.75 | -18.00 | 1.02 | -18.00 | 10.88 | 138.33 | -26.40 | 56.20 | 0.5275 | 778.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 9.84 | 138.36 | -26.37 | 57.85 | 0.5190 | 512.0 | 386.9 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 8.14 | 137.71 | -27.02 | 61.33 | 0.5146 | -581.0 | -513.8 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 7.58 | 137.34 | -27.39 | 62.64 | 0.5155 | -332.0 | -471.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
