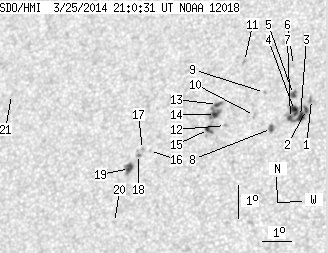

SDO HMI 2014-03-25 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.96 | 82.22 | 15.62 | 46.05 | 3.24 | 138.86 | -25.87 | 69.31 | 0.4673 | -89.4 | 9.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-25 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.35 | 3.76 | 141.22 | -23.51 | 66.35 | 0.4364 | -751.0 | -768.6 | |
| 1.66 | 27.43 | 0.91 | 15.12 | 3.46 | 141.06 | -23.67 | 67.12 | 0.4367 | -1108.2 | -630.3 | |
| 4.37 | -2.00 | 2.40 | -2.00 | 3.26 | 140.87 | -23.86 | 67.72 | 0.4382 | -1075.1 | 999999 | |
| 4.89 | -2.00 | 2.70 | -2.00 | 3.45 | 140.67 | -24.06 | 67.50 | 0.4423 | -895.3 | 999999 | |
| 2.01 | 3.84 | 1.11 | 2.13 | 3.94 | 140.62 | -24.11 | 66.53 | 0.4461 | -882.2 | -656.3 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 4.83 | 140.59 | -24.13 | 64.76 | 0.4523 | -727.0 | -585.7 | |
| 1.49 | -2.00 | 0.82 | -2.00 | 3.22 | 140.54 | -24.18 | 68.10 | 0.4427 | -755.4 | 999999 | |
| 1.75 | 3.76 | 0.97 | 2.08 | 2.94 | 139.93 | -24.80 | 69.19 | 0.4501 | -901.1 | -680.2 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 4.05 | 139.66 | -25.07 | 67.16 | 0.4604 | -651.0 | -496.5 | |
| 0.00 | 2.10 | 0.00 | 1.17 | 3.37 | 139.35 | -25.38 | 68.79 | 0.4608 | -659.0 | -441.7 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 5.03 | 138.96 | -25.77 | 65.85 | 0.4765 | -954.0 | -671.9 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 3.12 | 138.39 | -26.34 | 70.05 | 0.4732 | 827.0 | 636.9 | |
| 1.66 | 23.68 | 0.94 | 13.36 | 3.77 | 138.11 | -26.62 | 68.99 | 0.4810 | 873.4 | 683.6 | |
| 3.49 | -13.00 | 1.97 | -13.00 | 3.47 | 138.05 | -26.68 | 69.62 | 0.4801 | 1082.9 | 999999 | |
| 2.53 | -13.00 | 1.43 | -13.00 | 3.03 | 137.83 | -26.90 | 70.65 | 0.4809 | 884.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 2.51 | 135.84 | -28.89 | 72.97 | 0.5069 | 710.0 | 520.1 | |
| 0.00 | 1.83 | 0.00 | 1.06 | 2.55 | 135.60 | -29.13 | 73.04 | 0.5105 | 740.0 | 589.5 | |
| 0.00 | 2.10 | 0.00 | 1.21 | 2.41 | 135.46 | -29.27 | 73.39 | 0.5118 | 975.0 | 730.0 | |
| 4.11 | 7.43 | 2.37 | 4.28 | 2.00 | 135.16 | -29.57 | 74.32 | 0.5143 | 931.7 | 664.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 0.40 | 134.66 | -30.07 | 77.59 | 0.5151 | 706.0 | 522.5 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 4.52 | 130.91 | -33.82 | 72.29 | 0.5846 | -544.0 | -499.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
