SDO HMI 2014-03-25 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.74 | 0.00 | 13.71 | -14.54 | 129.94 | -33.69 | 106.68 | 0.5600 | 644.8 | 527.1 | |
|
previous
or next observation for the same group /

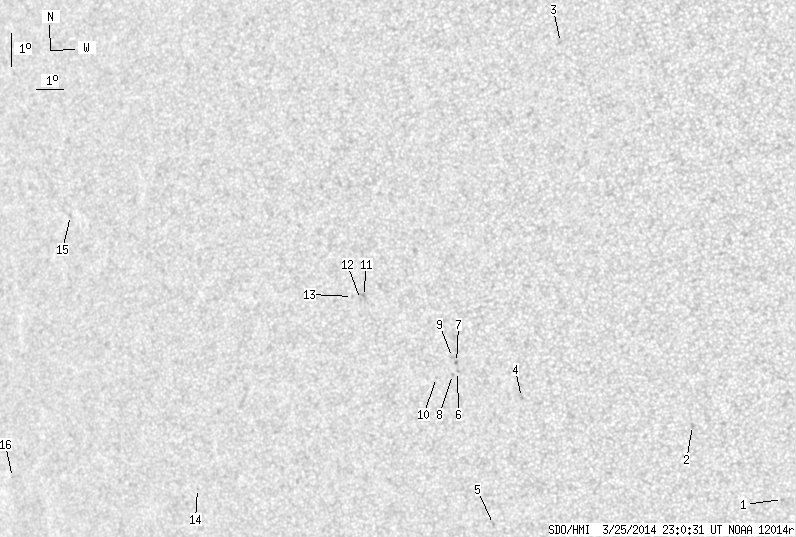

back to the solar disc SDO HMI 2014-03-25 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.76 | -19.70 | 142.75 | -20.87 | 124.39 | 0.4083 | 718.0 | 578.0 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -17.31 | 140.01 | -23.61 | 116.54 | 0.4292 | 738.0 | 573.7 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -5.60 | 136.68 | -26.95 | 88.86 | 0.4530 | 828.0 | 632.1 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -16.15 | 134.22 | -29.41 | 110.49 | 0.5056 | 808.0 | 548.1 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -19.94 | 132.46 | -31.16 | 116.51 | 0.5457 | 807.0 | 626.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -15.23 | 132.06 | -31.57 | 107.85 | 0.5328 | 785.0 | 605.4 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -14.96 | 132.07 | -31.56 | 107.35 | 0.5318 | 874.0 | 735.9 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -15.31 | 131.86 | -31.76 | 107.93 | 0.5357 | 803.0 | 636.3 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -14.80 | 131.95 | -31.68 | 107.02 | 0.5331 | 631.0 | 564.7 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.36 | 131.27 | -32.36 | 107.81 | 0.5442 | 651.0 | 524.6 | |
| 0.00 | 3.41 | 0.00 | 2.05 | -12.76 | 129.00 | -34.63 | 102.56 | 0.5700 | 887.0 | 703.8 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -12.84 | 128.87 | -34.75 | 102.68 | 0.5718 | 665.0 | 553.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -12.73 | 128.59 | -35.03 | 102.44 | 0.5756 | 496.0 | 417.5 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -18.04 | 121.22 | -42.41 | 109.23 | 0.6814 | 542.0 | 394.9 | |
| 0.00 | 1.66 | 0.00 | 1.17 | -9.46 | 117.80 | -45.82 | 96.54 | 0.7144 | 526.0 | 461.9 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -17.01 | 113.10 | -50.53 | 106.45 | 0.7719 | -442.0 | -297.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
