SDO HMI 2014-03-26 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.67 | 763.37 | 74.22 | 386.58 | -13.67 | 170.21 | 9.34 | 230.62 | 0.2038 | 472.0 | 360.6 | |
|
previous
or next observation for the same group /

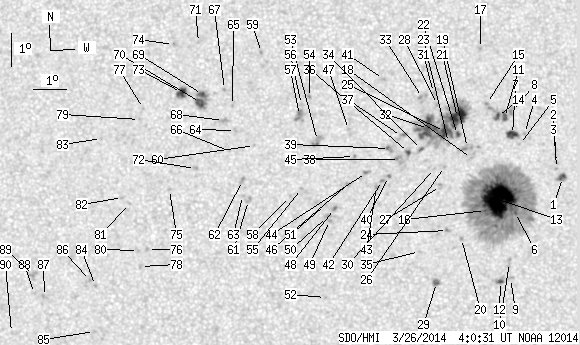

back to the solar disc SDO HMI 2014-03-26 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 6.38 | 1.39 | 3.27 | -13.63 | 173.91 | 13.04 | 241.06 | 0.2517 | 1000.9 | 708.0 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -13.36 | 173.71 | 12.83 | 241.67 | 0.2466 | 873.0 | 696.3 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -13.18 | 173.70 | 12.82 | 242.31 | 0.2452 | 802.0 | 577.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.34 | 172.66 | 11.78 | 243.77 | 0.2233 | -798.0 | -558.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.67 | 172.52 | 11.64 | 242.15 | 0.2236 | -731.0 | -532.0 | |
| 0.96 | 408.54 | 0.49 | 207.96 | -14.72 | 172.49 | 11.61 | 234.38 | 0.2406 | 746.2 | 439.8 | |
| 5.69 | 8.22 | 2.88 | 4.17 | -12.38 | 172.28 | 11.41 | 242.92 | 0.2179 | -915.4 | -581.8 | |
| 0.00 | 3.32 | 0.00 | 1.68 | -11.69 | 172.22 | 11.35 | 245.76 | 0.2123 | 855.0 | 695.0 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -16.72 | 172.44 | 11.57 | 227.84 | 0.2602 | -745.0 | -471.8 | |
| 0.00 | 4.29 | 0.00 | 2.19 | -16.24 | 172.38 | 11.51 | 229.16 | 0.2543 | 455.0 | 525.1 | |
| 2.45 | 12.68 | 1.24 | 6.42 | -11.87 | 172.01 | 11.14 | 244.57 | 0.2102 | 912.8 | 740.1 | |
| 1.40 | 4.90 | 0.72 | 2.51 | -16.82 | 172.13 | 11.25 | 226.80 | 0.2575 | -800.8 | -465.5 | |
| 64.11 | -6.00 | 32.62 | -6.00 | -14.34 | 171.93 | 11.06 | 234.48 | 0.2294 | 1446.7 | 999999 | |
| 2.01 | -11.00 | 1.02 | -11.00 | -11.85 | 171.79 | 10.92 | 244.26 | 0.2067 | 1035.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -11.46 | 171.44 | 10.56 | 245.31 | 0.1986 | 886.0 | 755.2 | |
| 0.87 | -6.00 | 0.44 | -6.00 | -14.68 | 171.54 | 10.67 | 232.29 | 0.2273 | 972.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -9.82 | 171.20 | 10.32 | 253.03 | 0.1854 | 837.0 | 661.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -13.12 | 171.03 | 10.16 | 237.07 | 0.2056 | 518.0 | 342.2 | |
| 0.00 | 10.15 | 0.00 | 5.13 | -12.79 | 170.90 | 10.02 | 238.13 | 0.2007 | 797.0 | 626.0 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -15.54 | 170.83 | 9.95 | 227.42 | 0.2271 | 856.0 | 647.8 | |
| 18.89 | 129.18 | 9.53 | 65.09 | -11.90 | 170.55 | 9.68 | 241.35 | 0.1883 | 1221.6 | 668.1 | |
| 1.40 | -21.00 | 0.71 | -21.00 | -12.41 | 170.57 | 9.69 | 239.03 | 0.1927 | 872.7 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -12.66 | 170.30 | 9.42 | 237.22 | 0.1909 | 642.0 | 588.4 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -15.31 | 170.38 | 9.50 | 226.93 | 0.2189 | 838.0 | 647.7 | |
| 11.63 | -21.00 | 5.86 | -21.00 | -12.33 | 170.17 | 9.29 | 238.36 | 0.1861 | 1074.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.38 | 170.20 | 9.33 | 233.80 | 0.1963 | 809.0 | 664.4 | |
| 0.00 | 3.06 | 0.00 | 1.55 | -13.98 | 170.10 | 9.22 | 231.03 | 0.2010 | 681.0 | 626.5 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -11.52 | 169.92 | 9.04 | 241.67 | 0.1758 | 716.0 | 584.8 | |
| 1.84 | 4.37 | 0.94 | 2.23 | -16.89 | 170.10 | 9.23 | 221.09 | 0.2345 | -971.0 | -738.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -13.44 | 169.89 | 9.02 | 232.62 | 0.1927 | -507.0 | -336.5 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -11.16 | 169.79 | 8.91 | 243.19 | 0.1710 | 867.0 | 703.4 | |
| 17.76 | -21.00 | 8.94 | -21.00 | -12.25 | 169.67 | 8.79 | 237.38 | 0.1781 | 1156.9 | 999999 | |
| 0.00 | 5.34 | 0.00 | 2.68 | -11.32 | 169.45 | 8.58 | 241.50 | 0.1671 | 568.0 | 751.5 | |
| 0.52 | 2.54 | 0.26 | 1.28 | -12.88 | 169.47 | 8.59 | 233.82 | 0.1813 | 991.2 | 803.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.96 | 169.52 | 8.65 | 222.14 | 0.2164 | -765.0 | -531.9 | |
| 1.14 | 3.15 | 0.57 | 1.58 | -12.98 | 169.07 | 8.19 | 232.11 | 0.1768 | 1073.6 | 746.2 | |
| 0.00 | 4.46 | 0.00 | 2.24 | -12.50 | 168.84 | 7.96 | 233.60 | 0.1688 | 656.0 | 742.6 | |
| 0.00 | 5.95 | 0.00 | 2.99 | -13.19 | 168.80 | 7.92 | 230.22 | 0.1754 | 492.0 | 626.4 | |
| 0.00 | 4.20 | 0.00 | 2.11 | -12.86 | 168.48 | 7.60 | 230.59 | 0.1677 | 969.0 | 833.4 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -13.71 | 168.47 | 7.60 | 226.80 | 0.1770 | 882.0 | 770.1 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -10.80 | 168.24 | 7.36 | 240.93 | 0.1447 | 868.0 | 752.9 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -13.83 | 168.29 | 7.41 | 225.61 | 0.1762 | 906.0 | 720.3 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -14.01 | 168.11 | 7.23 | 224.16 | 0.1762 | 756.0 | 685.9 | |
| 0.00 | 2.89 | 0.00 | 1.45 | -13.60 | 167.79 | 6.91 | 224.63 | 0.1673 | -868.0 | -592.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -13.12 | 167.40 | 6.53 | 225.15 | 0.1569 | 925.0 | 730.2 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -13.93 | 167.24 | 6.36 | 220.89 | 0.1651 | -883.0 | -707.7 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -12.31 | 167.20 | 6.32 | 228.25 | 0.1449 | 886.0 | 692.6 | |
| 0.35 | 1.49 | 0.18 | 0.75 | -14.69 | 166.82 | 5.95 | 216.14 | 0.1707 | -1004.8 | -843.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -15.06 | 166.68 | 5.80 | 214.22 | 0.1744 | -822.0 | -674.7 | |
| 0.00 | 2.01 | 0.00 | 1.01 | -14.94 | 166.61 | 5.74 | 214.33 | 0.1720 | -980.0 | -822.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.58 | 166.54 | 5.67 | 215.26 | 0.1663 | -942.0 | -747.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.39 | 166.62 | 5.74 | 207.47 | 0.2080 | 691.0 | 504.2 | |
| 0.00 | 7.26 | 0.00 | 3.63 | -12.65 | 166.25 | 5.38 | 221.93 | 0.1374 | -952.0 | -792.4 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -11.36 | 165.98 | 5.11 | 227.73 | 0.1185 | 1020.0 | 856.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.10 | 165.79 | 4.91 | 213.22 | 0.1523 | -958.0 | -795.3 | |
| 0.00 | 2.36 | 0.00 | 1.18 | -11.57 | 165.74 | 4.86 | 225.04 | 0.1180 | 785.0 | 503.4 | |
| 0.00 | 8.40 | 0.00 | 4.19 | -11.91 | 165.69 | 4.81 | 222.76 | 0.1214 | 1019.0 | 894.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -14.34 | 165.45 | 4.58 | 210.55 | 0.1528 | -778.0 | -632.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -10.03 | 164.50 | 3.62 | 228.12 | 0.0840 | 892.0 | 719.4 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.82 | 164.32 | 3.44 | 209.29 | 0.1202 | -803.0 | -533.5 | |
| 0.00 | 3.59 | 0.00 | 1.79 | -14.47 | 164.15 | 3.28 | 202.60 | 0.1447 | 745.0 | 721.1 | |
| 0.00 | 3.67 | 0.00 | 1.84 | -13.87 | 163.96 | 3.08 | 203.08 | 0.1339 | 1073.0 | 803.5 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -14.32 | 163.97 | 3.09 | 201.83 | 0.1411 | 411.0 | 400.1 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -12.37 | 163.73 | 2.85 | 206.75 | 0.1085 | -904.0 | -735.9 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -11.62 | 163.63 | 2.75 | 209.43 | 0.0962 | -900.0 | -650.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.00 | 163.55 | 2.68 | 202.94 | 0.1172 | -720.0 | -468.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.14 | 163.38 | 2.51 | 209.75 | 0.0869 | 833.0 | 666.5 | |
| 0.00 | 3.67 | 0.00 | 1.83 | -12.07 | 163.36 | 2.48 | 204.90 | 0.1011 | -945.0 | -748.2 | |
| 2.62 | 17.49 | 1.30 | 8.70 | -11.29 | 162.71 | 1.84 | 202.03 | 0.0842 | -1176.6 | -814.6 | |
| 4.90 | -69.00 | 2.44 | -69.00 | -11.53 | 162.65 | 1.78 | 200.36 | 0.0877 | -1133.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.56 | -9.73 | 162.59 | 1.71 | 210.16 | 0.0587 | 810.0 | 690.5 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -13.52 | 162.51 | 1.63 | 193.41 | 0.1201 | -963.0 | -751.2 | |
| 5.42 | 9.45 | 2.69 | 4.69 | -11.23 | 162.07 | 1.20 | 194.96 | 0.0797 | -1144.0 | -737.5 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -9.80 | 161.83 | 0.95 | 197.57 | 0.0543 | 880.0 | 679.9 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -14.15 | 161.71 | 0.84 | 186.35 | 0.1286 | -719.0 | -481.1 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -15.96 | 161.03 | 0.16 | 180.95 | 0.1593 | -886.0 | -743.7 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.71 | 160.91 | 0.04 | 180.43 | 0.0853 | -912.0 | -747.2 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -16.48 | 160.82 | -0.06 | 179.65 | 0.1682 | -814.0 | -628.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.04 | 160.79 | -0.09 | 179.08 | 0.0911 | -951.0 | -734.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.99 | 160.75 | -0.12 | 179.26 | 0.1598 | -838.0 | -654.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -14.57 | 160.48 | -0.40 | 177.14 | 0.1353 | -867.0 | -572.7 | |
| 0.00 | 2.19 | 0.00 | 1.09 | -14.39 | 160.26 | -0.61 | 175.48 | 0.1324 | -830.0 | -522.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.61 | 159.63 | -1.25 | 168.04 | 0.1033 | -851.0 | -645.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -17.05 | 159.41 | -1.47 | 172.12 | 0.1798 | -962.0 | -732.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -18.45 | 159.36 | -1.51 | 172.90 | 0.2038 | -767.0 | -666.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -16.90 | 159.25 | -1.62 | 171.17 | 0.1776 | -892.0 | -693.1 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -17.37 | 157.81 | -3.07 | 164.38 | 0.1909 | -790.0 | -720.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -17.28 | 157.49 | -3.38 | 162.74 | 0.1908 | -762.0 | -559.8 | |
| 0.00 | 4.55 | 0.00 | 2.29 | -16.73 | 157.47 | -3.40 | 161.71 | 0.1820 | -940.0 | -758.2 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -18.46 | 156.74 | -4.13 | 161.28 | 0.2140 | -688.0 | -484.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
