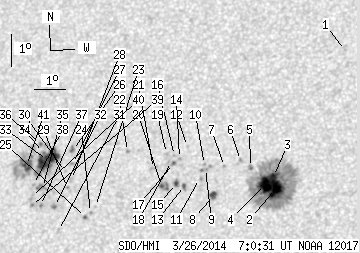

SDO HMI 2014-03-26 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.83 | 343.06 | 41.14 | 185.43 | 10.27 | 143.31 | -15.93 | 42.43 | 0.3989 | -154.0 | -159.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.38 | 14.14 | 148.32 | -10.92 | 27.31 | 0.4021 | -538.0 | -515.1 | |
| 15.83 | 184.67 | 8.40 | 98.12 | 9.84 | 146.32 | -12.92 | 37.82 | 0.3608 | -1472.6 | -415.3 | |
| 4.64 | -2.00 | 2.47 | -2.00 | 10.21 | 146.24 | -13.00 | 37.35 | 0.3664 | -995.9 | 999999 | |
| 15.40 | -2.00 | 8.19 | -2.00 | 9.97 | 146.00 | -13.24 | 38.27 | 0.3657 | -1223.0 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 10.52 | 145.51 | -13.73 | 38.37 | 0.3776 | -867.0 | -636.2 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 10.75 | 145.18 | -14.05 | 38.64 | 0.3837 | -903.0 | -713.2 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 10.58 | 144.69 | -14.55 | 39.90 | 0.3866 | -780.0 | -677.7 | |
| 2.80 | 4.90 | 1.50 | 2.62 | 9.68 | 144.38 | -14.85 | 42.05 | 0.3789 | -1076.4 | -787.2 | |
| 0.00 | 4.81 | 0.00 | 2.59 | 10.53 | 144.09 | -15.14 | 41.11 | 0.3923 | -1039.0 | -807.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 10.66 | 144.05 | -15.18 | 40.97 | 0.3942 | -787.0 | -655.0 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 10.22 | 143.92 | -15.32 | 41.97 | 0.3904 | -636.0 | -617.3 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 11.24 | 143.49 | -15.75 | 41.05 | 0.4072 | -549.0 | -323.8 | |
| 0.79 | 2.97 | 0.42 | 1.60 | 10.02 | 143.45 | -15.78 | 43.18 | 0.3931 | -1076.9 | -853.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 10.87 | 143.25 | -15.98 | 42.08 | 0.4053 | -849.0 | -692.9 | |
| 1.57 | 3.15 | 0.85 | 1.70 | 10.09 | 143.20 | -16.04 | 43.52 | 0.3967 | -1067.6 | -801.0 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 10.97 | 143.09 | -16.15 | 42.20 | 0.4082 | -714.0 | -495.6 | |
| 0.52 | 1.57 | 0.28 | 0.85 | 10.72 | 143.07 | -16.17 | 42.66 | 0.4054 | -947.8 | -787.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 10.79 | 143.00 | -16.23 | 42.66 | 0.4069 | -643.0 | -572.1 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 11.05 | 142.83 | -16.41 | 42.54 | 0.4118 | -643.0 | -462.7 | |
| 1.05 | 7.44 | 0.57 | 4.02 | 10.05 | 142.73 | -16.51 | 44.43 | 0.4014 | -900.8 | -840.2 | |
| 0.00 | 3.41 | 0.00 | 1.85 | 10.59 | 142.44 | -16.79 | 43.98 | 0.4107 | -794.0 | -501.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 11.16 | 141.58 | -17.66 | 44.46 | 0.4266 | -773.0 | -655.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 9.47 | 140.65 | -18.58 | 48.87 | 0.4191 | 700.0 | 506.3 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 9.29 | 140.50 | -18.73 | 49.43 | 0.4190 | 882.0 | 661.5 | |
| 0.61 | 1.40 | 0.33 | 0.76 | 9.14 | 140.35 | -18.88 | 49.93 | 0.4193 | 918.3 | 822.6 | |
| 0.61 | 2.97 | 0.34 | 1.65 | 11.26 | 139.80 | -19.43 | 47.05 | 0.4477 | 932.1 | 732.9 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 10.85 | 139.83 | -19.40 | 47.69 | 0.4431 | 669.0 | 503.1 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 10.35 | 139.83 | -19.40 | 48.55 | 0.4379 | 768.0 | 676.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 10.10 | 139.72 | -19.52 | 49.15 | 0.4367 | -611.0 | -465.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 10.61 | 139.62 | -19.61 | 48.41 | 0.4430 | 782.0 | 607.1 | |
| 0.00 | 1.92 | 0.00 | 1.05 | 8.77 | 139.51 | -19.73 | 51.86 | 0.4260 | -612.0 | -436.4 | |
| 0.52 | 2.10 | 0.29 | 1.15 | 9.53 | 139.33 | -19.90 | 50.72 | 0.4355 | 954.7 | 782.3 | |
| 23.18 | 47.15 | 12.87 | 26.19 | 10.98 | 139.01 | -20.22 | 48.66 | 0.4539 | 1063.5 | 596.4 | |
| 0.35 | -33.00 | 0.19 | -33.00 | 11.24 | 138.86 | -20.37 | 48.44 | 0.4582 | 618.5 | 999999 | |
| 0.00 | 6.47 | 0.00 | 3.58 | 10.14 | 138.91 | -20.33 | 50.24 | 0.4467 | 1099.0 | 868.9 | |
| 0.35 | -33.00 | 0.20 | -33.00 | 11.53 | 138.74 | -20.49 | 48.13 | 0.4626 | 491.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 9.58 | 138.88 | -20.36 | 51.27 | 0.4416 | 984.0 | 878.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 10.25 | 138.61 | -20.63 | 50.47 | 0.4513 | 753.0 | 617.4 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 9.59 | 138.59 | -20.65 | 51.65 | 0.4453 | 752.0 | 657.8 | |
| 0.00 | 2.45 | 0.00 | 1.36 | 9.87 | 138.57 | -20.67 | 51.18 | 0.4482 | 847.0 | 672.8 | |
| 7.61 | 40.07 | 4.24 | 22.35 | 10.85 | 138.34 | -20.90 | 49.81 | 0.4605 | 940.7 | 338.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
