SDO HMI 2014-03-26 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.00 | 772.66 | 68.33 | 393.98 | -13.47 | 170.29 | 11.60 | 237.27 | 0.2322 | 463.8 | 390.3 | |
|
previous
or next observation for the same group /

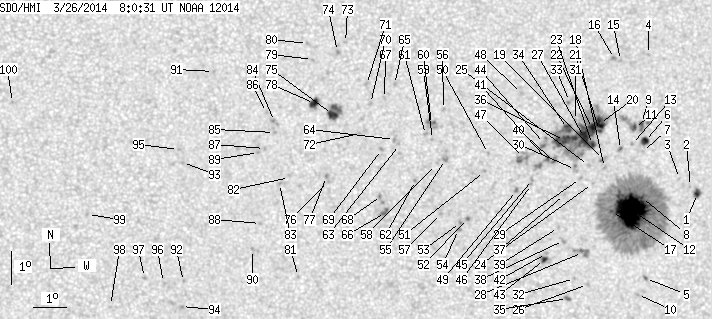

back to the solar disc SDO HMI 2014-03-26 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 4.99 | 1.58 | 2.58 | -13.73 | 174.08 | 15.39 | 244.24 | 0.2876 | 998.3 | 725.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -13.52 | 173.84 | 15.15 | 244.59 | 0.2827 | 824.0 | 614.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -13.29 | 173.48 | 14.79 | 244.86 | 0.2757 | 707.0 | 521.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.60 | 172.32 | 13.63 | 257.42 | 0.2391 | 806.0 | 637.8 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -16.34 | 172.60 | 13.91 | 233.81 | 0.2871 | 900.0 | 808.7 | |
| 4.02 | 5.86 | 2.06 | 3.00 | -12.21 | 172.31 | 13.62 | 247.10 | 0.2510 | -875.4 | -543.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -12.51 | 172.26 | 13.57 | 245.91 | 0.2521 | 689.0 | 539.7 | |
| 1.14 | 401.63 | 0.58 | 206.14 | -13.90 | 172.31 | 13.62 | 241.05 | 0.2624 | 1077.3 | 440.2 | |
| 0.96 | 19.07 | 0.49 | 9.74 | -11.67 | 172.19 | 13.50 | 248.98 | 0.2460 | 982.8 | 807.4 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -16.83 | 172.37 | 13.68 | 231.97 | 0.2888 | -842.0 | -665.8 | |
| 1.66 | -9.00 | 0.85 | -9.00 | -11.80 | 171.98 | 13.29 | 248.21 | 0.2434 | 1113.8 | 999999 | |
| 61.41 | -8.00 | 31.51 | -8.00 | -14.30 | 172.01 | 13.33 | 239.18 | 0.2613 | 1515.6 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -12.31 | 171.91 | 13.22 | 246.14 | 0.2454 | 723.0 | 584.7 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -12.47 | 171.57 | 12.88 | 245.02 | 0.2412 | 886.0 | 685.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -9.80 | 171.45 | 12.76 | 255.83 | 0.2256 | 796.0 | 609.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -9.75 | 171.26 | 12.57 | 255.90 | 0.2222 | 914.0 | 792.1 | |
| 1.05 | -8.00 | 0.54 | -8.00 | -14.34 | 171.38 | 12.70 | 237.86 | 0.2526 | 1093.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -13.02 | 171.09 | 12.40 | 242.11 | 0.2379 | 291.0 | 327.5 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -12.78 | 171.05 | 12.36 | 242.95 | 0.2355 | 633.0 | 606.0 | |
| 7.00 | 146.97 | 3.56 | 74.60 | -11.71 | 170.88 | 12.19 | 246.98 | 0.2256 | 1184.2 | 623.5 | |
| 1.05 | -20.00 | 0.53 | -20.00 | -11.92 | 170.88 | 12.20 | 246.13 | 0.2271 | 863.2 | 999999 | |
| 5.16 | -20.00 | 2.62 | -20.00 | -11.86 | 170.66 | 11.97 | 246.00 | 0.2233 | 1369.9 | 999999 | |
| 2.27 | -20.00 | 1.16 | -20.00 | -12.34 | 170.68 | 12.00 | 244.06 | 0.2268 | 899.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -13.51 | 170.74 | 12.05 | 239.60 | 0.2365 | 637.0 | 504.2 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -12.98 | 170.59 | 11.90 | 241.36 | 0.2300 | 773.0 | 566.0 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -16.57 | 170.75 | 12.07 | 229.38 | 0.2651 | -851.0 | -587.6 | |
| 11.29 | -20.00 | 5.73 | -20.00 | -12.14 | 170.43 | 11.74 | 244.44 | 0.2214 | 1286.5 | 999999 | |
| 0.00 | 7.96 | 0.00 | 4.07 | -15.60 | 170.54 | 11.85 | 231.89 | 0.2525 | 910.0 | 826.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -13.37 | 170.36 | 11.67 | 239.37 | 0.2297 | -706.0 | -473.1 | |
| 0.00 | 3.67 | 0.00 | 1.87 | -13.11 | 170.19 | 11.50 | 240.06 | 0.2251 | 458.0 | 531.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -11.63 | 170.12 | 11.43 | 246.06 | 0.2134 | 690.0 | 512.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -16.40 | 170.33 | 11.64 | 228.93 | 0.2579 | -906.0 | -685.8 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -11.07 | 169.91 | 11.23 | 248.23 | 0.2067 | 776.0 | 724.6 | |
| 4.37 | -20.00 | 2.22 | -20.00 | -11.88 | 169.88 | 11.20 | 244.56 | 0.2114 | 1153.7 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -17.01 | 170.14 | 11.45 | 226.67 | 0.2622 | -1001.0 | -849.5 | |
| 14.52 | -20.00 | 7.36 | -20.00 | -12.24 | 169.81 | 11.12 | 242.84 | 0.2127 | 1200.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.87 | 169.88 | 11.19 | 236.47 | 0.2270 | 779.0 | 601.1 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -15.25 | 169.92 | 11.23 | 231.61 | 0.2408 | 847.0 | 744.3 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -14.86 | 169.74 | 11.05 | 232.52 | 0.2345 | 914.0 | 689.1 | |
| 0.52 | 14.26 | 0.27 | 7.22 | -12.88 | 169.49 | 10.80 | 239.50 | 0.2130 | 952.0 | 784.2 | |
| 0.87 | -40.00 | 0.44 | -40.00 | -12.82 | 169.30 | 10.61 | 239.31 | 0.2097 | 1100.9 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -15.66 | 169.40 | 10.71 | 228.99 | 0.2382 | -244.0 | -215.5 | |
| 2.19 | 4.37 | 1.12 | 2.23 | -15.84 | 169.35 | 10.66 | 228.26 | 0.2395 | -943.1 | -628.3 | |
| 0.00 | 6.74 | 0.00 | 3.41 | -12.34 | 169.19 | 10.50 | 241.11 | 0.2042 | 700.0 | 775.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -13.43 | 168.86 | 10.17 | 235.73 | 0.2087 | -824.0 | -536.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -13.59 | 168.83 | 10.14 | 235.06 | 0.2098 | -776.0 | -633.1 | |
| 0.00 | 10.67 | 0.00 | 5.39 | -12.78 | 168.55 | 9.86 | 237.72 | 0.1985 | 774.0 | 815.4 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -10.86 | 168.42 | 9.73 | 246.52 | 0.1818 | 800.0 | 637.8 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -13.77 | 168.37 | 9.68 | 233.08 | 0.2052 | 896.0 | 761.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.68 | 167.46 | 8.77 | 235.20 | 0.1820 | -871.0 | -671.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -13.22 | 167.35 | 8.66 | 232.44 | 0.1859 | 946.0 | 781.2 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -14.64 | 166.87 | 8.19 | 225.09 | 0.1954 | -1080.0 | -888.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.77 | 166.66 | 7.97 | 223.89 | 0.1943 | -1011.0 | -859.7 | |
| 0.00 | 1.92 | 0.00 | 0.97 | -14.98 | 166.61 | 7.92 | 222.93 | 0.1962 | -979.0 | -804.8 | |
| 0.00 | 3.06 | 0.00 | 1.54 | -12.88 | 166.13 | 7.44 | 229.86 | 0.1660 | -892.0 | -781.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -11.38 | 166.03 | 7.34 | 237.31 | 0.1496 | 967.0 | 797.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -14.50 | 166.06 | 7.37 | 222.68 | 0.1840 | -928.0 | -713.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -13.03 | 165.86 | 7.17 | 228.10 | 0.1641 | -541.0 | -497.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.28 | 165.72 | 7.03 | 231.22 | 0.1541 | 841.0 | 635.4 | |
| 0.00 | 8.31 | 0.00 | 4.16 | -11.83 | 165.67 | 6.98 | 233.45 | 0.1488 | 1050.0 | 907.3 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -12.13 | 165.50 | 6.81 | 231.12 | 0.1495 | 710.0 | 643.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -13.52 | 165.22 | 6.53 | 223.29 | 0.1621 | -1010.0 | -784.4 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -12.44 | 164.70 | 6.01 | 226.05 | 0.1428 | -666.0 | -510.9 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -12.30 | 164.55 | 5.86 | 226.08 | 0.1391 | -920.0 | -670.8 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -10.65 | 164.51 | 5.82 | 235.98 | 0.1209 | 831.0 | 677.8 | |
| 1.14 | 5.34 | 0.57 | 2.68 | -14.50 | 164.32 | 5.63 | 215.30 | 0.1651 | 1060.5 | 843.6 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -11.07 | 164.21 | 5.53 | 231.71 | 0.1210 | 856.0 | 668.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -13.98 | 164.18 | 5.49 | 216.56 | 0.1566 | 478.0 | 693.3 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.60 | 164.15 | 5.46 | 222.55 | 0.1380 | -1025.0 | -892.5 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -11.22 | 163.79 | 5.10 | 228.47 | 0.1170 | 862.0 | 613.1 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -10.65 | 163.66 | 4.97 | 231.67 | 0.1090 | 872.0 | 699.5 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.13 | 163.47 | 4.78 | 221.25 | 0.1241 | -916.0 | -718.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -9.40 | 163.00 | 4.31 | 238.55 | 0.0874 | 867.0 | 614.8 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -9.67 | 162.76 | 4.07 | 234.43 | 0.0865 | 1053.0 | 902.1 | |
| 5.51 | 16.45 | 2.75 | 8.19 | -11.56 | 162.63 | 3.94 | 219.09 | 0.1073 | -1164.6 | -960.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -13.58 | 162.54 | 3.85 | 208.96 | 0.1354 | -807.0 | -616.2 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -13.43 | 162.47 | 3.78 | 209.11 | 0.1326 | -1127.0 | -910.4 | |
| 4.81 | 7.09 | 2.39 | 3.53 | -11.24 | 162.08 | 3.39 | 216.91 | 0.0970 | -1171.1 | -819.0 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -9.92 | 162.00 | 3.32 | 226.41 | 0.0790 | 878.0 | 649.2 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -9.44 | 161.85 | 3.16 | 229.84 | 0.0715 | 802.0 | 647.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -16.45 | 161.65 | 2.96 | 196.47 | 0.1754 | -771.0 | -598.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -13.46 | 161.33 | 2.65 | 201.19 | 0.1248 | -490.0 | -562.0 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -13.64 | 161.03 | 2.34 | 198.45 | 0.1259 | -976.0 | -742.9 | |
| 0.00 | 3.32 | 0.00 | 1.65 | -11.78 | 160.86 | 2.17 | 203.20 | 0.0946 | -930.0 | -790.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -12.11 | 160.86 | 2.17 | 201.89 | 0.0999 | -894.0 | -803.4 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -11.51 | 160.61 | 1.93 | 201.91 | 0.0886 | -881.0 | -719.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.59 | 160.56 | 1.87 | 197.57 | 0.1060 | -904.0 | -827.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.85 | 160.45 | 1.76 | 192.01 | 0.1436 | -749.0 | -651.7 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -12.71 | 160.38 | 1.69 | 195.62 | 0.1072 | -1008.0 | -825.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -15.64 | 160.21 | 1.52 | 189.45 | 0.1562 | -856.0 | -763.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -10.28 | 159.00 | 0.31 | 185.01 | 0.0609 | -898.0 | -690.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -16.61 | 158.06 | -0.63 | 176.47 | 0.1711 | -922.0 | -762.0 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -13.01 | 158.05 | -0.64 | 174.21 | 0.1089 | -879.0 | -591.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -17.37 | 158.00 | -0.69 | 176.39 | 0.1842 | -938.0 | -773.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.62 | 157.92 | -0.76 | 172.66 | 0.1024 | -949.0 | -739.5 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -16.64 | 157.44 | -1.25 | 173.00 | 0.1726 | -668.0 | -432.8 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -16.48 | 156.85 | -1.84 | 169.59 | 0.1715 | -899.0 | -686.2 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -17.33 | 155.77 | -2.92 | 165.09 | 0.1897 | -278.0 | -457.6 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -14.56 | 155.10 | -3.59 | 155.84 | 0.1486 | -802.0 | -630.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -11.17 | 152.86 | -5.83 | 127.51 | 0.1262 | -898.0 | -766.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
