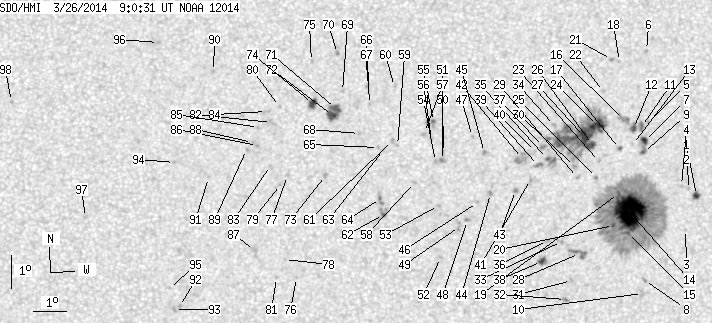

SDO HMI 2014-03-26 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.66 | 765.54 | 61.17 | 391.03 | -13.50 | 170.17 | 12.03 | 237.76 | 0.2390 | 363.1 | 387.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.89 | 4.81 | 1.50 | 2.49 | -13.76 | 174.11 | 15.97 | 244.85 | 0.2965 | 965.8 | 672.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -13.59 | 173.87 | 15.73 | 245.11 | 0.2918 | 696.0 | 615.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -14.80 | 173.83 | 15.69 | 241.29 | 0.2994 | 570.0 | 452.1 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -13.48 | 173.61 | 15.47 | 245.13 | 0.2872 | 726.0 | 510.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -11.59 | 172.45 | 14.31 | 250.29 | 0.2584 | 745.0 | 609.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -9.46 | 172.29 | 14.15 | 258.35 | 0.2474 | 815.0 | 687.0 | |
| 3.32 | 11.72 | 1.70 | 6.01 | -12.16 | 172.36 | 14.22 | 248.06 | 0.2600 | -850.4 | -45.7 | |
| 0.00 | 1.84 | 0.00 | 0.95 | -16.38 | 172.63 | 14.49 | 234.73 | 0.2953 | 948.0 | 809.8 | |
| 0.96 | -7.00 | 0.49 | -7.00 | -12.52 | 172.35 | 14.20 | 246.74 | 0.2619 | 891.5 | 999999 | |
| 0.00 | 3.15 | 0.00 | 1.63 | -16.78 | 172.59 | 14.45 | 233.54 | 0.2984 | -505.0 | -438.7 | |
| 0.00 | 4.20 | 0.00 | 2.15 | -11.74 | 172.24 | 14.10 | 249.46 | 0.2559 | 1082.0 | 825.3 | |
| 2.45 | 4.55 | 1.25 | 2.33 | -11.81 | 171.99 | 13.85 | 248.90 | 0.2523 | 1060.1 | 785.3 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -12.29 | 171.99 | 13.85 | 247.10 | 0.2550 | 693.0 | 469.1 | |
| 62.02 | 392.34 | 31.89 | 201.84 | -14.31 | 172.01 | 13.87 | 240.06 | 0.2692 | 1507.9 | 432.7 | |
| 1.66 | -14.00 | 0.86 | -14.00 | -14.94 | 171.98 | 13.84 | 237.95 | 0.2739 | 888.4 | 999999 | |
| 0.00 | 8.14 | 0.00 | 4.16 | -11.55 | 171.67 | 13.52 | 249.49 | 0.2458 | 1043.0 | 828.0 | |
| 0.70 | 1.66 | 0.36 | 0.85 | -12.42 | 171.58 | 13.44 | 246.05 | 0.2495 | 767.5 | 629.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -9.81 | 171.47 | 13.32 | 256.28 | 0.2348 | 814.0 | 682.5 | |
| 2.45 | -14.00 | 1.26 | -14.00 | -13.77 | 171.63 | 13.48 | 241.23 | 0.2595 | 1163.9 | 999999 | |
| 1.57 | -14.00 | 0.81 | -14.00 | -14.74 | 171.53 | 13.38 | 237.79 | 0.2658 | 904.6 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -9.76 | 171.21 | 13.07 | 256.28 | 0.2305 | 952.0 | 789.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -10.72 | 171.00 | 12.86 | 251.99 | 0.2310 | 896.0 | 700.9 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -12.83 | 170.98 | 12.83 | 243.58 | 0.2429 | 796.0 | 629.3 | |
| 9.45 | 141.54 | 4.81 | 71.99 | -11.75 | 170.86 | 12.72 | 247.60 | 0.2342 | 1275.4 | 755.6 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -13.31 | 170.91 | 12.76 | 241.66 | 0.2454 | 818.0 | 635.1 | |
| 2.71 | -24.00 | 1.38 | -24.00 | -12.32 | 170.73 | 12.59 | 245.12 | 0.2358 | 887.1 | 999999 | |
| 9.97 | -24.00 | 5.08 | -24.00 | -12.09 | 170.47 | 12.33 | 245.63 | 0.2302 | 1268.1 | 999999 | |
| 0.00 | 9.36 | 0.00 | 4.80 | -15.62 | 170.50 | 12.36 | 232.94 | 0.2594 | 520.0 | 817.2 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -13.32 | 170.31 | 12.17 | 240.52 | 0.2367 | -571.0 | -317.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -13.00 | 170.20 | 12.06 | 241.56 | 0.2325 | 910.0 | 716.0 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -16.44 | 170.29 | 12.15 | 229.95 | 0.2649 | -804.0 | -615.4 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -17.02 | 170.14 | 12.00 | 227.89 | 0.2691 | -993.0 | -815.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -15.27 | 169.91 | 11.76 | 232.79 | 0.2481 | 892.0 | 705.9 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -11.78 | 169.52 | 11.38 | 245.30 | 0.2135 | 739.0 | 643.4 | |
| 0.70 | 9.36 | 0.36 | 4.75 | -12.77 | 169.34 | 11.20 | 240.77 | 0.2181 | 1149.2 | 709.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -15.24 | 169.46 | 11.32 | 231.84 | 0.2420 | 607.0 | 520.1 | |
| 0.00 | 3.06 | 0.00 | 1.55 | -12.42 | 169.20 | 11.06 | 241.97 | 0.2132 | 1069.0 | 875.5 | |
| 2.54 | 4.55 | 1.30 | 2.32 | -15.88 | 169.31 | 11.17 | 229.38 | 0.2465 | -979.6 | -536.6 | |
| 0.00 | 3.94 | 0.00 | 2.00 | -12.99 | 169.07 | 10.93 | 239.30 | 0.2158 | 846.0 | 777.5 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -12.57 | 168.96 | 10.82 | 240.80 | 0.2108 | 739.0 | 511.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.42 | 168.84 | 10.70 | 237.06 | 0.2161 | -584.0 | -451.1 | |
| 0.00 | 11.72 | 0.00 | 5.93 | -12.79 | 168.56 | 10.42 | 239.00 | 0.2067 | 981.0 | 821.2 | |
| 0.00 | 2.19 | 0.00 | 1.11 | -13.76 | 168.38 | 10.24 | 234.61 | 0.2128 | 933.0 | 815.3 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -13.86 | 167.61 | 9.47 | 232.11 | 0.2032 | -801.0 | -755.3 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -12.63 | 167.37 | 9.23 | 236.70 | 0.1882 | -1029.0 | -720.1 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.14 | 167.21 | 9.07 | 229.86 | 0.2009 | -963.0 | -701.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.16 | 166.99 | 8.84 | 237.85 | 0.1784 | 899.0 | 709.8 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -14.69 | 166.92 | 8.78 | 226.87 | 0.2032 | -843.0 | -780.8 | |
| 0.00 | 3.41 | 0.00 | 1.73 | -14.87 | 166.68 | 8.54 | 225.41 | 0.2024 | -702.0 | -742.8 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -12.65 | 166.10 | 7.96 | 232.74 | 0.1706 | -908.0 | -646.4 | |
| 0.00 | 2.80 | 0.00 | 1.41 | -12.89 | 166.08 | 7.94 | 231.53 | 0.1728 | -1016.0 | -794.3 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -15.82 | 166.12 | 7.98 | 220.27 | 0.2075 | -845.0 | -693.1 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -14.25 | 166.00 | 7.86 | 225.45 | 0.1868 | -823.0 | -704.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -12.93 | 165.87 | 7.72 | 230.62 | 0.1702 | -1008.0 | -822.3 | |
| 0.52 | 7.61 | 0.26 | 3.82 | -11.73 | 165.77 | 7.63 | 236.31 | 0.1569 | 1224.7 | 854.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.27 | 165.72 | 7.58 | 233.32 | 0.1615 | 866.0 | 672.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -12.06 | 165.50 | 7.36 | 233.59 | 0.1564 | 663.0 | 612.4 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -13.57 | 165.23 | 7.09 | 225.37 | 0.1694 | -953.0 | -698.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.46 | 164.68 | 6.54 | 228.27 | 0.1496 | -726.0 | -563.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -10.69 | 164.55 | 6.41 | 238.06 | 0.1298 | 835.0 | 573.0 | |
| 0.00 | 2.36 | 0.00 | 1.18 | -12.31 | 164.52 | 6.38 | 228.36 | 0.1459 | -964.0 | -748.4 | |
| 1.05 | 5.51 | 0.53 | 2.77 | -14.54 | 164.30 | 6.16 | 217.53 | 0.1712 | 1043.7 | 877.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.59 | 164.25 | 6.11 | 225.74 | 0.1457 | -787.0 | -653.2 | |
| 0.00 | 4.81 | 0.00 | 2.42 | -14.06 | 164.19 | 6.05 | 218.89 | 0.1636 | 1029.0 | 744.9 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.53 | 164.10 | 5.95 | 225.31 | 0.1431 | -979.0 | -741.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.24 | 163.79 | 5.65 | 231.17 | 0.1245 | 817.0 | 658.9 | |
| 0.00 | 1.66 | 0.00 | 0.83 | -10.67 | 163.72 | 5.58 | 234.64 | 0.1177 | 923.0 | 741.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -12.11 | 163.50 | 5.36 | 224.53 | 0.1309 | -777.0 | -718.3 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -10.86 | 162.96 | 4.82 | 229.32 | 0.1093 | 760.0 | 414.6 | |
| 0.00 | 1.75 | 0.00 | 0.87 | -9.72 | 162.79 | 4.65 | 237.41 | 0.0953 | 1045.0 | 892.5 | |
| 4.11 | 18.63 | 2.05 | 9.29 | -11.37 | 162.75 | 4.61 | 224.66 | 0.1127 | -1123.9 | -837.7 | |
| 6.04 | -71.00 | 3.01 | -71.00 | -11.58 | 162.67 | 4.52 | 222.80 | 0.1142 | -1146.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -13.39 | 162.48 | 4.34 | 212.67 | 0.1369 | -1062.0 | -846.1 | |
| 4.55 | 6.47 | 2.27 | 3.22 | -11.23 | 162.05 | 3.91 | 220.90 | 0.1026 | -1216.7 | -850.8 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -9.97 | 162.00 | 3.86 | 230.21 | 0.0867 | 804.0 | 669.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -16.47 | 161.63 | 3.49 | 199.17 | 0.1786 | -836.0 | -606.9 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -13.39 | 161.31 | 3.17 | 205.10 | 0.1273 | -820.0 | -596.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -15.93 | 161.25 | 3.11 | 198.20 | 0.1677 | -765.0 | -661.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -13.66 | 161.10 | 2.95 | 202.76 | 0.1301 | -900.0 | -753.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -11.32 | 161.04 | 2.90 | 212.23 | 0.0935 | -777.0 | -639.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -16.48 | 161.01 | 2.87 | 195.93 | 0.1755 | -857.0 | -688.4 | |
| 0.00 | 3.94 | 0.00 | 1.96 | -11.80 | 160.80 | 2.66 | 207.56 | 0.0986 | -861.0 | -741.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -13.09 | 160.78 | 2.64 | 202.29 | 0.1189 | -937.0 | -760.8 | |
| 0.00 | 2.62 | 0.00 | 1.31 | -11.47 | 160.65 | 2.50 | 207.78 | 0.0923 | -764.0 | -676.5 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -11.95 | 160.41 | 2.26 | 203.32 | 0.0981 | -775.0 | -681.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.49 | 160.38 | 2.24 | 201.05 | 0.1066 | -1103.0 | -928.8 | |
| 0.00 | 5.77 | 0.00 | 2.90 | -15.66 | 160.31 | 2.17 | 193.34 | 0.1588 | -819.0 | -574.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.40 | 160.23 | 2.08 | 200.01 | 0.1042 | -879.0 | -758.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.62 | 160.04 | 1.90 | 197.75 | 0.1067 | -808.0 | -652.3 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -10.28 | 159.03 | 0.88 | 194.12 | 0.0626 | -951.0 | -699.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.46 | 158.88 | 0.74 | 186.18 | 0.1169 | -783.0 | -622.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -17.36 | 157.98 | -0.16 | 179.16 | 0.1839 | -1034.0 | -892.8 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -17.45 | 157.82 | -0.32 | 178.35 | 0.1855 | -940.0 | -742.8 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -13.01 | 157.84 | -0.31 | 177.23 | 0.1085 | -711.0 | -553.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -16.81 | 157.67 | -0.47 | 177.39 | 0.1746 | -902.0 | -783.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -9.41 | 157.36 | -0.78 | 163.40 | 0.0474 | -900.0 | -741.8 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -14.65 | 155.08 | -3.06 | 159.26 | 0.1466 | -804.0 | -659.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -11.14 | 152.87 | -5.28 | 130.08 | 0.1185 | -974.0 | -770.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
