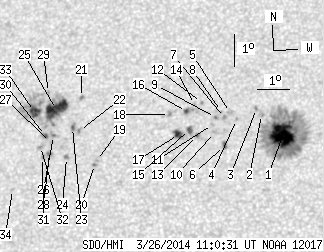

SDO HMI 2014-03-26 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.09 | 339.63 | 40.81 | 181.65 | 10.23 | 143.33 | -13.72 | 38.19 | 0.3753 | -183.1 | -122.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.30 | 183.85 | 19.12 | 96.87 | 9.89 | 146.17 | -10.87 | 33.08 | 0.3420 | -1285.1 | -389.5 | |
| 0.00 | 2.19 | 0.00 | 1.16 | 10.57 | 145.50 | -11.55 | 33.59 | 0.3573 | -725.0 | -595.0 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 10.76 | 145.34 | -11.71 | 33.66 | 0.3613 | -668.0 | -599.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.43 | 144.73 | -12.32 | 35.54 | 0.3626 | -905.0 | -716.7 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 10.66 | 144.53 | -12.52 | 35.61 | 0.3674 | -735.0 | -602.3 | |
| 1.05 | 2.80 | 0.56 | 1.48 | 9.63 | 144.38 | -12.66 | 37.65 | 0.3554 | -1045.2 | -900.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 10.51 | 144.35 | -12.70 | 36.25 | 0.3671 | -1075.0 | -953.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 10.70 | 144.25 | -12.80 | 36.16 | 0.3706 | -634.0 | -546.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.51 | 144.07 | -12.98 | 36.84 | 0.3699 | -926.0 | -828.9 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 10.04 | 144.06 | -12.99 | 37.65 | 0.3640 | -773.0 | -567.4 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 10.30 | 143.98 | -13.06 | 37.38 | 0.3679 | -845.0 | -659.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 11.00 | 143.61 | -13.44 | 37.01 | 0.3806 | -800.0 | -684.0 | |
| 0.61 | 1.84 | 0.33 | 0.98 | 9.97 | 143.53 | -13.52 | 38.89 | 0.3683 | -1059.9 | -894.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 10.94 | 143.39 | -13.65 | 37.54 | 0.3820 | -665.0 | -491.7 | |
| 1.84 | 3.94 | 0.98 | 2.10 | 10.16 | 143.27 | -13.78 | 39.09 | 0.3734 | -1014.3 | -671.7 | |
| 1.22 | 5.16 | 0.66 | 2.76 | 10.73 | 143.15 | -13.90 | 38.38 | 0.3817 | -891.6 | -766.5 | |
| 3.94 | 5.42 | 2.10 | 2.90 | 10.02 | 142.93 | -14.11 | 40.03 | 0.3750 | -988.9 | -722.3 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 10.65 | 142.62 | -14.43 | 39.56 | 0.3861 | -813.0 | -595.7 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 9.29 | 140.39 | -16.66 | 46.09 | 0.3945 | 753.0 | 622.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 9.17 | 140.33 | -16.72 | 46.41 | 0.3938 | 1000.0 | 768.4 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 11.28 | 139.80 | -17.25 | 43.60 | 0.4234 | 900.0 | 748.7 | |
| 0.00 | 2.10 | 0.00 | 1.14 | 10.25 | 139.80 | -17.25 | 45.37 | 0.4118 | 924.0 | 784.8 | |
| 0.70 | 3.06 | 0.38 | 1.67 | 10.35 | 139.57 | -17.48 | 45.57 | 0.4155 | 979.0 | 795.0 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 9.42 | 139.43 | -17.62 | 47.46 | 0.4070 | 1042.0 | 839.1 | |
| 21.69 | 88.86 | 11.88 | 48.79 | 10.94 | 139.02 | -18.03 | 45.45 | 0.4281 | 1059.1 | 434.1 | |
| 0.00 | 2.54 | 0.00 | 1.38 | 10.13 | 138.97 | -18.07 | 46.93 | 0.4199 | 1016.0 | 778.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 9.91 | 138.89 | -18.16 | 47.44 | 0.4185 | 794.0 | 662.3 | |
| 0.52 | 2.27 | 0.29 | 1.24 | 9.57 | 138.88 | -18.17 | 48.08 | 0.4150 | 1034.7 | 891.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 11.48 | 138.73 | -18.32 | 45.00 | 0.4374 | 655.0 | 452.9 | |
| 1.05 | 3.50 | 0.57 | 1.91 | 10.14 | 138.72 | -18.33 | 47.32 | 0.4229 | 1096.1 | 794.5 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 9.45 | 138.66 | -18.39 | 48.63 | 0.4164 | 761.0 | 559.5 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 9.80 | 138.58 | -18.47 | 48.13 | 0.4210 | 768.0 | 626.2 | |
| 7.17 | -25.00 | 3.94 | -25.00 | 10.90 | 138.32 | -18.73 | 46.61 | 0.4357 | 965.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 8.50 | 137.75 | -19.30 | 51.78 | 0.4178 | -754.0 | -618.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
