SDO HMI 2014-03-26 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.42 | 739.93 | 62.08 | 384.52 | -13.40 | 170.59 | 16.29 | 245.63 | 0.3003 | 416.1 | 366.2 | |
|
previous
or next observation for the same group /

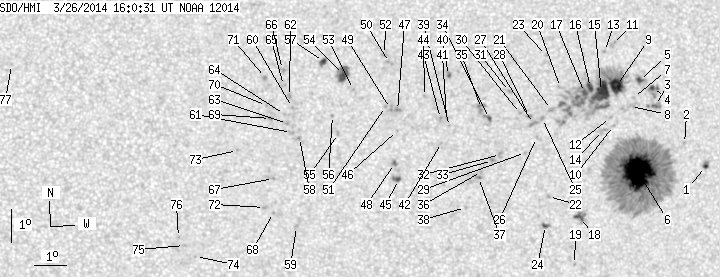

back to the solar disc SDO HMI 2014-03-26 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 3.67 | 0.74 | 1.95 | -14.01 | 174.30 | 20.00 | 248.25 | 0.3588 | 1013.2 | 789.4 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.34 | 173.55 | 19.25 | 249.44 | 0.3442 | 732.0 | 577.4 | |
| 0.00 | 6.56 | 0.00 | 3.43 | -12.24 | 172.53 | 18.23 | 251.81 | 0.3232 | 1017.0 | 758.8 | |
| 1.22 | 9.62 | 0.64 | 5.03 | -11.70 | 172.40 | 18.10 | 253.33 | 0.3189 | 988.1 | 423.8 | |
| 1.84 | 2.97 | 0.96 | 1.55 | -11.51 | 171.97 | 17.67 | 253.62 | 0.3113 | 1024.9 | 821.1 | |
| 60.14 | 403.43 | 31.52 | 211.47 | -14.27 | 172.13 | 17.83 | 245.47 | 0.3277 | 1482.0 | 435.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -12.02 | 171.81 | 17.51 | 251.88 | 0.3110 | 601.0 | 462.7 | |
| 0.00 | 8.48 | 0.00 | 4.42 | -12.30 | 171.73 | 17.43 | 250.96 | 0.3110 | 721.0 | 482.3 | |
| 13.55 | 161.81 | 7.03 | 83.74 | -11.68 | 171.24 | 16.94 | 252.49 | 0.3006 | 1148.5 | 656.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.88 | 171.22 | 16.92 | 248.66 | 0.3060 | -140.0 | -237.5 | |
| 0.00 | 3.67 | 0.00 | 1.90 | -10.46 | 171.04 | 16.74 | 256.38 | 0.2928 | 830.0 | 624.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.65 | 171.11 | 16.81 | 249.29 | 0.3031 | 713.0 | 608.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -10.67 | 170.80 | 16.50 | 255.48 | 0.2896 | 1020.0 | 896.3 | |
| 0.00 | 4.02 | 0.00 | 2.09 | -13.05 | 170.88 | 16.58 | 247.80 | 0.3016 | -213.0 | -371.2 | |
| 18.97 | -9.00 | 9.83 | -9.00 | -11.88 | 170.78 | 16.48 | 251.45 | 0.2941 | 1146.6 | 999999 | |
| 3.41 | -9.00 | 1.76 | -9.00 | -11.77 | 170.42 | 16.12 | 251.48 | 0.2879 | 1189.5 | 999999 | |
| 2.10 | -9.00 | 1.08 | -9.00 | -11.92 | 170.24 | 15.94 | 250.78 | 0.2858 | 1248.4 | 999999 | |
| 2.71 | 8.22 | 1.41 | 4.28 | -15.69 | 170.34 | 16.04 | 239.15 | 0.3112 | 1072.0 | 806.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -17.12 | 170.30 | 16.00 | 235.15 | 0.3223 | -775.0 | -612.4 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -11.80 | 169.47 | 15.17 | 250.44 | 0.2731 | 735.0 | 562.4 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -12.46 | 169.22 | 14.92 | 247.82 | 0.2727 | 896.0 | 777.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -15.08 | 169.30 | 14.99 | 239.38 | 0.2916 | 970.0 | 764.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.85 | 168.98 | 14.68 | 253.37 | 0.2609 | 756.0 | 602.9 | |
| 1.22 | 2.62 | 0.63 | 1.36 | -15.96 | 169.26 | 14.96 | 236.71 | 0.2983 | -1024.3 | -825.1 | |
| 0.00 | 2.01 | 0.00 | 1.03 | -12.74 | 168.95 | 14.65 | 246.52 | 0.2702 | 1046.0 | 787.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.32 | 168.80 | 14.50 | 244.33 | 0.2715 | 627.0 | 463.8 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -12.90 | 168.68 | 14.38 | 245.60 | 0.2670 | 1048.0 | 933.2 | |
| 0.00 | 1.84 | 0.00 | 0.94 | -12.69 | 168.54 | 14.24 | 246.14 | 0.2636 | 1000.0 | 662.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.78 | 168.48 | 14.17 | 242.29 | 0.2699 | 785.0 | 587.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.61 | 168.25 | 13.95 | 246.04 | 0.2586 | -252.0 | -241.4 | |
| 0.00 | 2.01 | 0.00 | 1.03 | -11.96 | 167.87 | 13.57 | 247.93 | 0.2488 | 932.0 | 657.4 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -13.86 | 167.69 | 13.39 | 240.74 | 0.2588 | -656.0 | -502.9 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -14.05 | 167.45 | 13.14 | 239.67 | 0.2567 | -1022.0 | -879.8 | |
| 0.79 | 1.49 | 0.40 | 0.76 | -12.79 | 167.28 | 12.98 | 243.94 | 0.2450 | -929.1 | -671.3 | |
| 0.00 | 5.94 | 0.00 | 3.03 | -12.49 | 167.02 | 12.72 | 244.63 | 0.2389 | -650.0 | -737.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -14.39 | 167.12 | 12.82 | 237.90 | 0.2548 | -839.0 | -702.2 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -14.57 | 167.03 | 12.73 | 237.11 | 0.2552 | -953.0 | -862.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -15.49 | 166.67 | 12.37 | 233.36 | 0.2585 | -553.0 | -392.1 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -13.06 | 166.04 | 11.74 | 240.69 | 0.2283 | -862.0 | -581.4 | |
| 0.35 | 2.97 | 0.18 | 1.51 | -11.53 | 165.94 | 11.64 | 246.81 | 0.2161 | 1032.5 | 825.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.79 | 165.93 | 11.63 | 241.54 | 0.2247 | -874.0 | -764.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -13.54 | 165.81 | 11.51 | 238.34 | 0.2290 | -821.0 | -756.4 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -12.82 | 165.75 | 11.45 | 241.03 | 0.2222 | -865.0 | -779.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.17 | 165.22 | 10.92 | 242.69 | 0.2094 | 830.0 | 667.9 | |
| 1.14 | 4.90 | 0.58 | 2.49 | -14.68 | 164.52 | 10.22 | 231.00 | 0.2217 | 1075.1 | 849.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.21 | 164.42 | 10.12 | 236.47 | 0.2061 | -720.0 | -496.3 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -12.61 | 164.40 | 10.10 | 238.97 | 0.2006 | -899.0 | -754.4 | |
| 0.52 | 2.27 | 0.27 | 1.15 | -14.21 | 164.37 | 10.07 | 232.39 | 0.2149 | 1026.3 | 845.2 | |
| 0.00 | 2.62 | 0.00 | 1.32 | -12.55 | 164.18 | 9.88 | 238.68 | 0.1969 | -662.0 | -761.9 | |
| 0.00 | 3.50 | 0.00 | 1.76 | -11.17 | 164.10 | 9.80 | 244.99 | 0.1850 | 755.0 | 713.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.50 | 164.02 | 9.72 | 238.55 | 0.1941 | -990.0 | -709.2 | |
| 0.00 | 2.71 | 0.00 | 1.36 | -10.94 | 163.94 | 9.63 | 245.85 | 0.1809 | 713.0 | 548.7 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.00 | 163.01 | 8.71 | 238.18 | 0.1751 | -892.0 | -725.9 | |
| 7.87 | 15.30 | 3.95 | 7.68 | -11.56 | 162.69 | 8.39 | 239.53 | 0.1666 | -1100.5 | -810.7 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -13.33 | 162.59 | 8.29 | 230.69 | 0.1821 | -798.0 | -678.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.79 | 162.39 | 8.09 | 232.44 | 0.1738 | -926.0 | -715.0 | |
| 2.19 | 4.46 | 1.10 | 2.23 | -11.18 | 162.06 | 7.76 | 239.74 | 0.1541 | -1198.8 | -865.3 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -13.47 | 161.38 | 7.08 | 225.73 | 0.1683 | -843.0 | -645.8 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -16.16 | 161.38 | 7.08 | 215.91 | 0.2026 | -834.0 | -689.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.57 | 161.14 | 6.84 | 228.95 | 0.1549 | -912.0 | -811.5 | |
| 0.00 | 2.71 | 0.00 | 1.36 | -13.32 | 161.13 | 6.83 | 225.36 | 0.1634 | -774.0 | -693.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -12.24 | 161.04 | 6.74 | 230.22 | 0.1500 | -967.0 | -792.6 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -13.05 | 161.00 | 6.70 | 226.04 | 0.1586 | -968.0 | -834.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.78 | 160.90 | 6.60 | 226.90 | 0.1543 | -984.0 | -756.2 | |
| 0.00 | 2.01 | 0.00 | 1.01 | -11.91 | 160.85 | 6.55 | 231.19 | 0.1439 | -837.0 | -766.6 | |
| 0.00 | 2.71 | 0.00 | 1.36 | -11.43 | 160.81 | 6.51 | 233.76 | 0.1384 | -862.0 | -697.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.71 | 160.61 | 6.31 | 217.56 | 0.1753 | -825.0 | -637.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.74 | 160.64 | 6.34 | 214.27 | 0.1897 | -804.0 | -663.7 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -12.91 | 160.47 | 6.17 | 224.41 | 0.1505 | -1084.0 | -868.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.52 | 160.34 | 6.04 | 225.71 | 0.1442 | -964.0 | -790.9 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -11.68 | 160.29 | 5.99 | 230.06 | 0.1340 | -927.0 | -694.4 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -15.59 | 160.36 | 6.06 | 213.52 | 0.1849 | -895.0 | -757.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.88 | 159.48 | 5.18 | 215.31 | 0.1522 | -966.0 | -754.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -17.10 | 158.24 | 3.94 | 200.14 | 0.1915 | -910.0 | -743.7 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -16.77 | 157.89 | 3.59 | 199.07 | 0.1841 | -918.0 | -773.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -16.52 | 157.69 | 3.39 | 198.56 | 0.1791 | -853.0 | -674.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.31 | 152.53 | -1.77 | 158.96 | 0.0847 | -686.0 | -501.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
