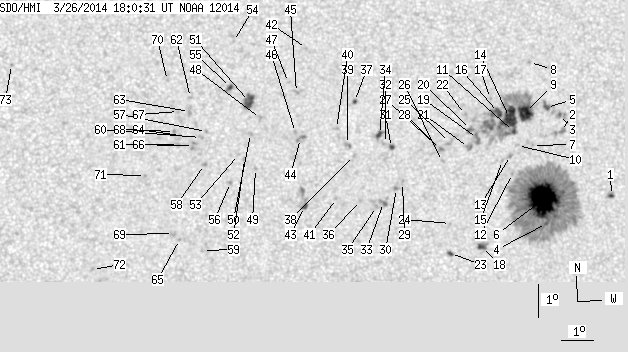

SDO HMI 2014-03-26 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.57 | 703.70 | 64.08 | 367.71 | -13.45 | 170.52 | 17.32 | 246.72 | 0.3159 | 477.2 | 348.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 3.06 | 0.70 | 1.63 | -14.05 | 174.38 | 21.19 | 249.10 | 0.3769 | 989.9 | 660.6 | |
| 0.00 | 5.68 | 0.00 | 2.99 | -12.20 | 172.55 | 19.36 | 252.78 | 0.3407 | 976.0 | 767.8 | |
| 0.44 | 6.38 | 0.23 | 3.36 | -11.69 | 172.49 | 19.29 | 254.20 | 0.3377 | 1012.8 | 680.8 | |
| 0.96 | 392.21 | 0.51 | 206.92 | -14.98 | 172.33 | 19.13 | 244.88 | 0.3512 | 563.1 | 436.8 | |
| 1.66 | 7.78 | 0.87 | 4.08 | -11.49 | 172.05 | 18.85 | 254.49 | 0.3301 | 999.3 | 679.5 | |
| 60.75 | -4.00 | 32.03 | -4.00 | -14.26 | 172.14 | 18.94 | 246.63 | 0.3442 | 1476.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -12.65 | 171.68 | 18.48 | 250.80 | 0.3290 | -598.0 | -375.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -10.17 | 171.42 | 18.22 | 258.18 | 0.3159 | 862.0 | 645.1 | |
| 15.12 | 137.41 | 7.90 | 71.61 | -11.67 | 171.39 | 18.19 | 253.51 | 0.3202 | 1124.6 | 622.2 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -12.67 | 171.20 | 18.00 | 250.34 | 0.3216 | 696.0 | 412.0 | |
| 1.40 | -9.00 | 0.73 | -9.00 | -12.25 | 171.04 | 17.84 | 251.47 | 0.3172 | 759.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.51 | 171.10 | 17.90 | 247.75 | 0.3244 | 819.0 | 606.3 | |
| 0.00 | 2.10 | 0.00 | 1.10 | -12.97 | 171.00 | 17.80 | 249.24 | 0.3200 | -251.0 | -289.7 | |
| 18.71 | -9.00 | 9.75 | -9.00 | -11.83 | 170.88 | 17.69 | 252.62 | 0.3130 | 1173.2 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -13.13 | 170.75 | 17.55 | 248.53 | 0.3170 | -612.0 | -452.0 | |
| 3.76 | -9.00 | 1.96 | -9.00 | -11.70 | 170.52 | 17.33 | 252.76 | 0.3067 | 1157.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -11.29 | 170.24 | 17.05 | 253.86 | 0.3006 | 871.0 | 792.1 | |
| 2.71 | 6.47 | 1.42 | 3.39 | -15.75 | 170.28 | 17.08 | 240.43 | 0.3264 | 1054.4 | 820.7 | |
| 0.00 | 6.38 | 0.00 | 3.31 | -12.50 | 169.90 | 16.71 | 249.66 | 0.3006 | 1154.0 | 907.1 | |
| 0.00 | 4.20 | 0.00 | 2.17 | -12.24 | 169.66 | 16.47 | 250.27 | 0.2956 | 1164.0 | 913.3 | |
| 0.00 | 4.20 | 0.00 | 2.18 | -12.78 | 169.63 | 16.44 | 248.50 | 0.2979 | 778.0 | 771.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.79 | 169.48 | 16.28 | 251.56 | 0.2905 | 893.0 | 683.8 | |
| 1.14 | 2.53 | 0.59 | 1.32 | -15.99 | 169.29 | 16.09 | 238.39 | 0.3143 | -972.2 | -794.4 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -15.08 | 169.22 | 16.02 | 240.90 | 0.3064 | 893.0 | 720.4 | |
| 0.00 | 3.76 | 0.00 | 1.94 | -12.65 | 169.02 | 15.82 | 248.26 | 0.2877 | 681.0 | 668.3 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -13.22 | 168.83 | 15.64 | 246.15 | 0.2882 | 817.0 | 650.9 | |
| 0.00 | 2.71 | 0.00 | 1.40 | -12.86 | 168.75 | 15.55 | 247.22 | 0.2847 | 1042.0 | 849.5 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -12.72 | 168.58 | 15.38 | 247.51 | 0.2813 | 973.0 | 784.6 | |
| 0.00 | 1.84 | 0.00 | 0.95 | -13.89 | 167.60 | 14.40 | 242.27 | 0.2740 | -676.0 | -596.8 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -14.08 | 167.42 | 14.23 | 241.38 | 0.2727 | -973.0 | -825.4 | |
| 1.31 | 2.53 | 0.67 | 1.30 | -12.85 | 167.19 | 13.99 | 245.26 | 0.2608 | -886.9 | -694.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -12.73 | 167.00 | 13.80 | 245.39 | 0.2570 | -583.0 | -533.7 | |
| 0.00 | 5.16 | 0.00 | 2.65 | -14.51 | 167.04 | 13.84 | 239.33 | 0.2704 | -918.0 | -720.5 | |
| 2.10 | 6.12 | 1.07 | 3.13 | -12.47 | 166.79 | 13.59 | 246.07 | 0.2522 | -1026.0 | -694.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -14.64 | 166.82 | 13.62 | 238.54 | 0.2684 | -847.0 | -672.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -14.47 | 166.30 | 13.11 | 238.17 | 0.2596 | -788.0 | -608.6 | |
| 0.79 | 2.19 | 0.40 | 1.11 | -11.50 | 165.96 | 12.76 | 248.65 | 0.2335 | 909.9 | 745.0 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -13.12 | 166.04 | 12.84 | 242.47 | 0.2452 | -814.0 | -511.4 | |
| 0.00 | 3.41 | 0.00 | 1.74 | -12.79 | 165.80 | 12.60 | 243.29 | 0.2393 | -950.0 | -752.5 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -12.32 | 165.43 | 12.24 | 244.51 | 0.2304 | 848.0 | 697.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -14.43 | 165.54 | 12.34 | 236.85 | 0.2484 | -790.0 | -627.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -9.95 | 164.41 | 11.21 | 253.44 | 0.2007 | 785.0 | 645.3 | |
| 1.49 | 8.30 | 0.76 | 4.23 | -14.69 | 164.55 | 11.35 | 233.79 | 0.2370 | 1015.5 | 826.0 | |
| 0.00 | 4.46 | 0.00 | 2.26 | -12.65 | 164.32 | 11.13 | 241.11 | 0.2160 | -831.0 | -787.7 | |
| 0.00 | 2.01 | 0.00 | 1.02 | -11.27 | 164.14 | 10.95 | 246.78 | 0.2036 | 800.0 | 732.3 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -12.47 | 164.16 | 10.96 | 241.51 | 0.2122 | -882.0 | -781.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -10.98 | 163.89 | 10.69 | 247.70 | 0.1977 | 893.0 | 738.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | -12.07 | 163.06 | 9.86 | 240.84 | 0.1926 | -779.0 | -693.3 | |
| 0.00 | 1.57 | 0.00 | 0.80 | -13.58 | 162.96 | 9.76 | 234.05 | 0.2045 | -770.0 | -554.1 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -12.53 | 162.76 | 9.56 | 238.03 | 0.1921 | -651.0 | -543.0 | |
| 7.43 | 11.36 | 3.74 | 5.72 | -11.57 | 162.70 | 9.50 | 242.39 | 0.1833 | -1108.9 | -866.8 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -13.31 | 162.60 | 9.41 | 234.18 | 0.1971 | -864.0 | -677.6 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -13.17 | 162.41 | 9.22 | 234.26 | 0.1930 | -714.0 | -577.5 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -9.78 | 162.15 | 8.95 | 250.85 | 0.1631 | 823.0 | 633.1 | |
| 1.49 | 3.76 | 0.75 | 1.89 | -11.16 | 162.10 | 8.90 | 243.03 | 0.1711 | -1188.5 | -840.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.01 | 162.20 | 9.00 | 230.12 | 0.1987 | -1003.0 | -755.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -12.49 | 161.40 | 8.20 | 234.27 | 0.1723 | -818.0 | -662.9 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -13.48 | 161.37 | 8.17 | 229.65 | 0.1822 | -940.0 | -720.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -16.08 | 161.40 | 8.20 | 220.20 | 0.2134 | -718.0 | -569.5 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -12.67 | 161.22 | 8.02 | 232.80 | 0.1717 | -723.0 | -691.8 | |
| 0.00 | 4.11 | 0.00 | 2.07 | -12.92 | 161.01 | 7.81 | 230.95 | 0.1714 | -716.0 | -827.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -11.48 | 160.88 | 7.68 | 237.80 | 0.1554 | -907.0 | -742.4 | |
| 0.00 | 4.37 | 0.00 | 2.19 | -11.90 | 160.86 | 7.66 | 235.47 | 0.1590 | -1009.0 | -784.4 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -12.62 | 160.60 | 7.40 | 230.87 | 0.1628 | -911.0 | -714.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.76 | 160.67 | 7.47 | 218.64 | 0.2013 | -815.0 | -675.1 | |
| 0.00 | 2.45 | 0.00 | 1.23 | -12.89 | 160.54 | 7.35 | 229.37 | 0.1650 | -1068.0 | -760.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.90 | 160.52 | 7.32 | 234.25 | 0.1543 | -811.0 | -705.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -12.50 | 160.41 | 7.21 | 230.74 | 0.1590 | -1065.0 | -888.9 | |
| 0.00 | 3.15 | 0.00 | 1.59 | -15.58 | 160.47 | 7.27 | 218.50 | 0.1969 | -685.0 | -733.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -10.98 | 160.16 | 6.96 | 238.27 | 0.1405 | -833.0 | -611.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -13.84 | 159.55 | 6.35 | 221.11 | 0.1641 | -893.0 | -677.4 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -16.70 | 157.97 | 4.77 | 204.85 | 0.1905 | -897.0 | -708.5 | |
| 0.00 | 1.14 | 0.00 | 0.56 | -10.54 | 155.39 | 2.19 | 209.99 | 0.0755 | 809.0 | 655.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
