SDO HMI 2014-03-26 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 42.26 | 0.00 | 24.58 | -16.16 | 123.26 | -29.38 | 110.43 | 0.5041 | 359.7 | 259.9 | |
|
previous
or next observation for the same group /

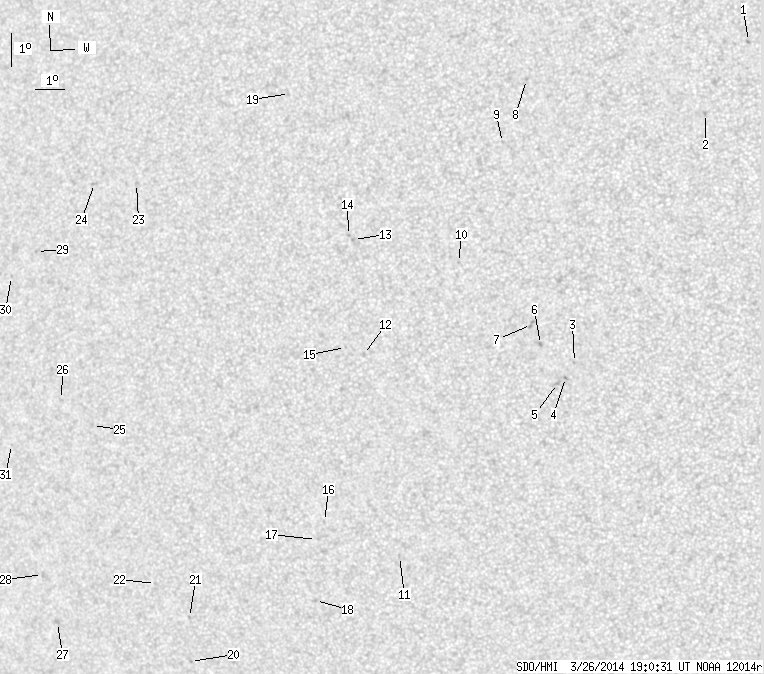

back to the solar disc SDO HMI 2014-03-26 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.62 | -6.97 | 139.31 | -13.33 | 91.47 | 0.2300 | 794.0 | 710.4 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -9.08 | 137.90 | -14.75 | 99.80 | 0.2562 | 892.0 | 731.4 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -16.41 | 133.16 | -19.48 | 118.44 | 0.3654 | 839.0 | 701.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -16.85 | 132.82 | -19.83 | 119.15 | 0.3733 | 870.0 | 726.1 | |
| 0.00 | 1.92 | 0.00 | 1.03 | -17.02 | 132.53 | -20.11 | 119.26 | 0.3785 | 840.0 | 590.5 | |
| 0.00 | 1.92 | 0.00 | 1.03 | -15.82 | 132.10 | -20.55 | 115.89 | 0.3769 | 959.0 | 766.0 | |
| 0.00 | 3.58 | 0.00 | 1.92 | -15.20 | 131.87 | -20.78 | 114.14 | 0.3768 | 726.0 | 668.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -7.85 | 132.28 | -20.37 | 94.24 | 0.3472 | 747.0 | 630.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.70 | 131.39 | -21.26 | 99.29 | 0.3637 | 640.0 | 487.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -13.23 | 129.64 | -23.00 | 107.65 | 0.4009 | 797.0 | 661.3 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -22.06 | 126.29 | -26.36 | 123.70 | 0.4966 | 804.0 | 641.1 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -15.84 | 126.09 | -26.56 | 111.45 | 0.4640 | 673.0 | 521.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -12.37 | 126.19 | -26.46 | 104.06 | 0.4505 | 785.0 | 669.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -12.24 | 126.03 | -26.62 | 103.72 | 0.4526 | 714.0 | 577.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -15.60 | 125.50 | -27.15 | 110.62 | 0.4715 | 657.0 | 582.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.84 | 123.82 | -28.83 | 119.62 | 0.5204 | 400.0 | 412.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -21.38 | 123.41 | -29.24 | 120.28 | 0.5288 | 561.0 | 514.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -23.25 | 122.93 | -29.71 | 123.15 | 0.5460 | 774.0 | 624.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -7.89 | 124.41 | -28.23 | 94.00 | 0.4716 | 17.0 | 58.0 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -24.85 | 117.62 | -35.03 | 122.30 | 0.6184 | 617.0 | 516.0 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -23.49 | 118.01 | -34.64 | 120.43 | 0.6068 | 660.0 | 524.4 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -22.35 | 117.00 | -35.65 | 118.16 | 0.6136 | -349.0 | -360.1 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -10.24 | 118.76 | -33.88 | 98.26 | 0.5565 | 632.0 | 393.9 | |
| 0.00 | 2.53 | 0.00 | 1.54 | -10.14 | 117.22 | -35.42 | 97.94 | 0.5783 | 685.0 | 528.2 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -17.38 | 115.84 | -36.81 | 109.81 | 0.6100 | -778.0 | -607.9 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -16.51 | 114.82 | -37.83 | 108.12 | 0.6209 | -693.0 | -511.4 | |
| 0.00 | 2.80 | 0.00 | 1.86 | -23.27 | 112.66 | -39.99 | 117.62 | 0.6686 | -576.0 | -392.2 | |
| 0.00 | 2.10 | 0.00 | 1.39 | -21.76 | 112.55 | -40.09 | 115.38 | 0.6644 | -724.0 | -611.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -12.01 | 114.74 | -37.91 | 100.84 | 0.6141 | -500.0 | -445.2 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -12.68 | 113.64 | -39.01 | 101.79 | 0.6296 | -696.0 | -536.3 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -17.72 | 112.49 | -40.15 | 109.36 | 0.6534 | -616.0 | -544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
