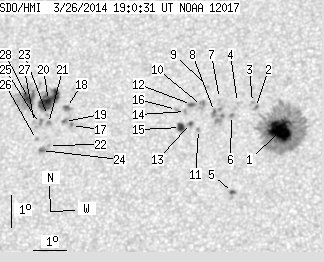

SDO HMI 2014-03-26 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.17 | 318.53 | 37.56 | 167.46 | 10.18 | 143.55 | -9.10 | 27.38 | 0.3340 | -206.3 | -235.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.21 | 173.60 | 16.24 | 90.35 | 9.83 | 146.20 | -6.45 | 21.18 | 0.3076 | -1396.3 | -457.3 | |
| 0.00 | 2.53 | 0.00 | 1.33 | 10.56 | 145.42 | -7.23 | 22.57 | 0.3237 | -965.0 | -769.8 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 10.72 | 145.32 | -7.32 | 22.64 | 0.3267 | -696.0 | -569.0 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 10.73 | 144.86 | -7.78 | 23.90 | 0.3299 | -680.0 | -515.9 | |
| 1.14 | 4.02 | 0.59 | 2.08 | 7.93 | 144.77 | -7.88 | 28.19 | 0.2886 | -1056.8 | -768.1 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 10.32 | 144.69 | -7.96 | 24.90 | 0.3250 | -1082.0 | -901.8 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 10.86 | 144.31 | -8.34 | 25.23 | 0.3357 | -443.0 | -537.4 | |
| 0.44 | 14.34 | 0.23 | 7.51 | 10.46 | 144.16 | -8.48 | 26.14 | 0.3307 | -952.0 | -861.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.25 | 143.92 | -8.72 | 25.73 | 0.3441 | -846.0 | -696.7 | |
| 0.00 | 5.07 | 0.00 | 2.67 | 10.65 | 143.76 | -8.89 | 26.95 | 0.3366 | -878.0 | -878.7 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 9.90 | 143.69 | -8.96 | 28.20 | 0.3262 | -969.0 | -802.5 | |
| 1.14 | 2.71 | 0.60 | 1.43 | 10.69 | 143.45 | -9.20 | 27.69 | 0.3394 | -961.9 | -720.2 | |
| 0.87 | 2.10 | 0.46 | 1.10 | 10.10 | 143.43 | -9.21 | 28.58 | 0.3309 | -1020.3 | -621.8 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 10.48 | 143.27 | -9.38 | 28.46 | 0.3377 | -872.0 | -673.5 | |
| 3.76 | 5.68 | 1.97 | 2.98 | 9.98 | 143.13 | -9.52 | 29.55 | 0.3316 | -1098.2 | -784.5 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 10.54 | 142.99 | -9.66 | 29.07 | 0.3409 | -869.0 | -687.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.13 | 139.75 | -12.90 | 37.30 | 0.3641 | 876.0 | 791.5 | |
| 1.40 | 4.37 | 0.75 | 2.33 | 10.69 | 139.57 | -13.08 | 36.74 | 0.3732 | 920.0 | 783.7 | |
| 0.44 | 3.67 | 0.23 | 1.95 | 10.26 | 139.53 | -13.12 | 37.56 | 0.3680 | 1002.4 | 746.3 | |
| 20.80 | 30.86 | 11.14 | 16.53 | 10.93 | 139.00 | -13.65 | 37.55 | 0.3818 | 1067.5 | 632.3 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 10.21 | 139.03 | -13.62 | 38.68 | 0.3724 | 1048.0 | 915.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 9.52 | 139.06 | -13.59 | 39.82 | 0.3634 | 793.0 | 646.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 10.46 | 138.99 | -13.66 | 38.34 | 0.3760 | 821.0 | 671.2 | |
| 1.05 | 4.63 | 0.56 | 2.46 | 9.37 | 138.84 | -13.80 | 40.52 | 0.3638 | 1006.7 | 866.1 | |
| 0.00 | 3.76 | 0.00 | 2.01 | 10.22 | 138.75 | -13.90 | 39.24 | 0.3753 | 915.0 | 827.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 9.72 | 138.67 | -13.97 | 40.25 | 0.3699 | 871.0 | 737.1 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 10.25 | 138.59 | -14.06 | 39.50 | 0.3774 | 746.0 | 615.8 | |
| 8.92 | 41.43 | 4.79 | 22.28 | 11.01 | 138.36 | -14.28 | 38.67 | 0.3891 | 976.4 | 400.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
